ST200-ATMEK (1995)

Toyota Corona Exiv

Production Aug 1995 - Apr 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

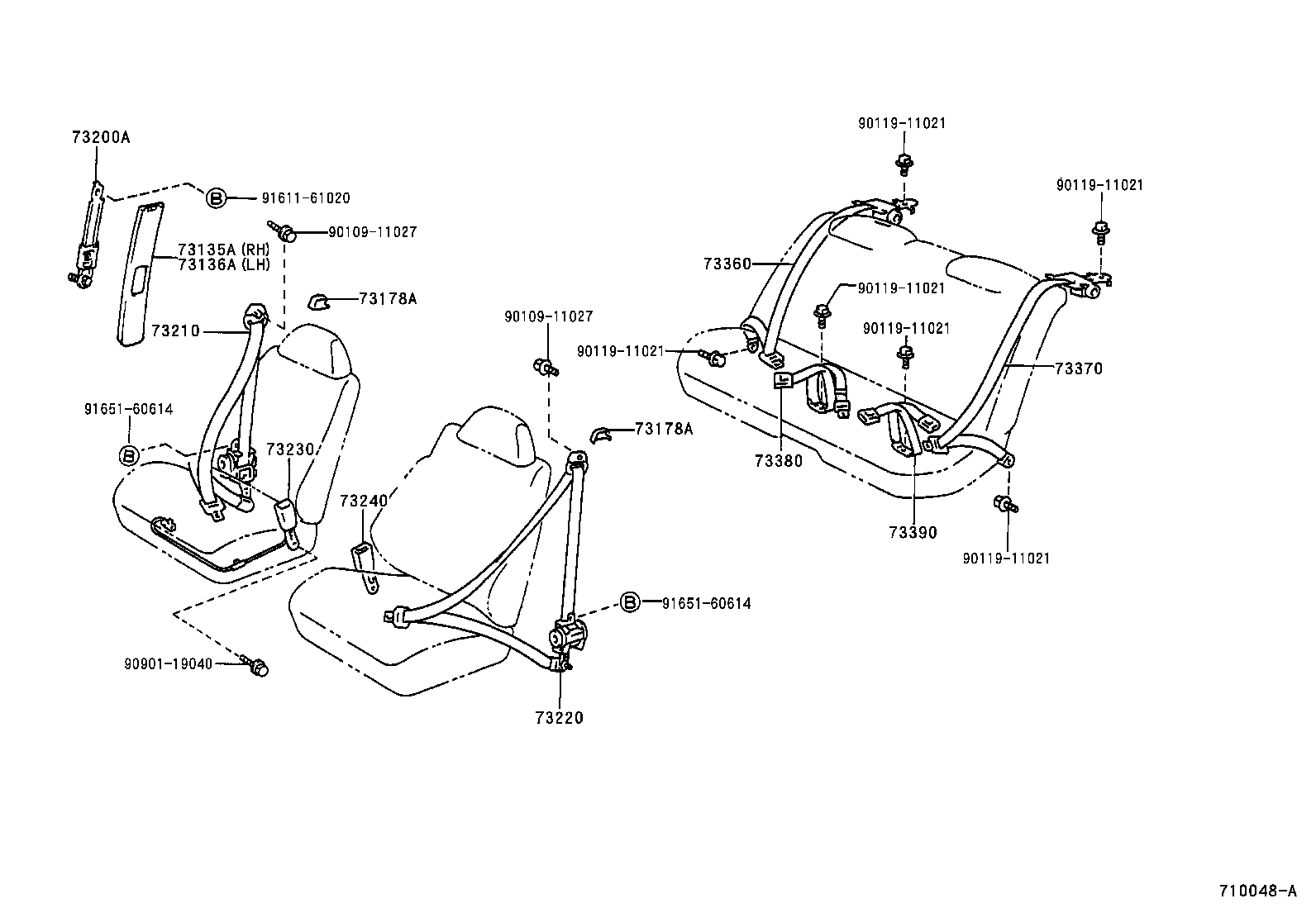

Click highlighted areas on diagram

diagram 73135A 73136A 73178A 73178A 73200A 73210 73220 73230 73240 73360 73370 73380 73390 9010911027 9010911027 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9090119040 9161161020 9165160614 9165160614
Part # Description Qty Price
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-12030B1

ST20#

SHADOW GRAY,TRIM1#

 1
73136A - COVER, SHOULDER BELT ANCHOR, LH
73135-12030B1

ST20#

SHADOW GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-34010B2

ST20#

SHADOW GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-34010B2

ST20#

SHADOW GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12030B1

ST20#

SHADOW GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-20782B1

ST20#

SHADOW GRAY,TRIM1#

 1
73210-20781B1

ST20#

SHADOW GRAY,TRIM1#

 1
73210-20783B1

ST20#

SHADOW GRAY,TRIM1#

 1
73210-20780B1

ST20#

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-20643B1

ST20#

SHADOW GRAY,TRIM1#

 1
73220-20640B1

ST20#

SHADOW GRAY,TRIM1#

 1
73220-20641B1

ST20#

SHADOW GRAY,TRIM1#

 1
73220-20642B1

ST20#

SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-20810B0

ST20#

SHADOW GRAY,TRIM1#,製造工場NO.A51−A54

 1
73230-20660B0

ST20#

SHADOW GRAY,TRIM1#

 1
73230-20750B0

ST20#

SHADOW GRAY,TRIM1#,製造工場NO.M31

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-20190B0

ST20#

SHADOW GRAY,TRIM1#

 1
73230-12590B0

ST20#

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-20710B0

ST20#

SHADOW GRAY,TRIM1#

 1
73360-20711B0

ST20#

SHADOW GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-20541B0

ST20#

SHADOW GRAY,TRIM1#

 1
73370-20540B0

ST20#

SHADOW GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-20070B0

ST20#

SHADOW GRAY,TRIM1#

 1
73470-20071B0

ST20#

SHADOW GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-20090B0

ST20#

SHADOW GRAY,TRIM1#

 1
73480-20091B0

ST20#

SHADOW GRAY,TRIM1#

 1
Common parts
90109-11027
90119-11021
90901-19040
91611-61020
91651-60614
