ST183-ATPVF (1989)
Toyota Corona Exiv
Production
Sep 1989
-
Sep 1993
Engine
3SGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8909-9108)

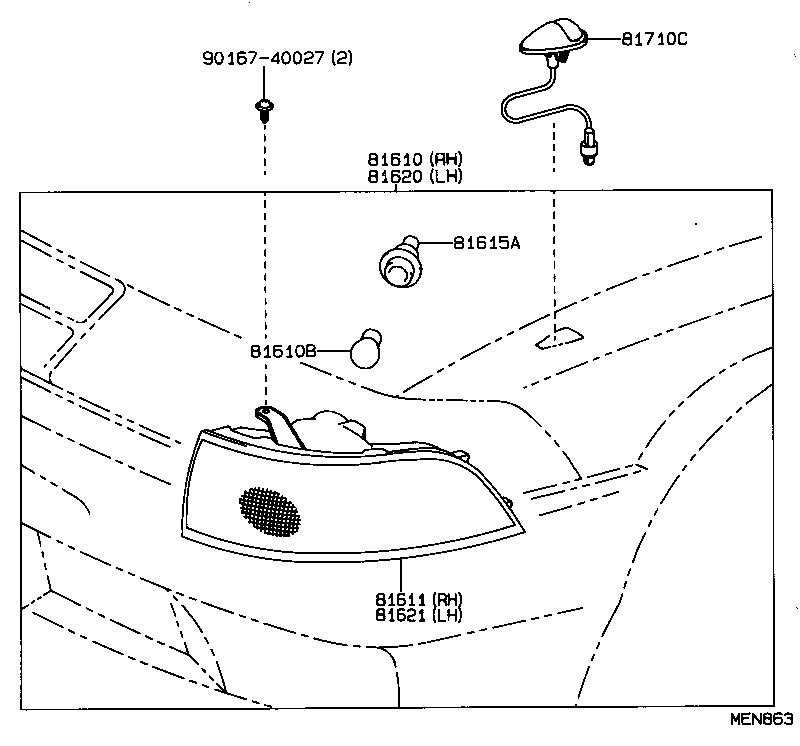

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-20420 |
ST18# |
1 | ||
| 81610-20520 |
ST18# |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
ST18# 12V 5W |
2 | ||
| 90981-13036 |
ST18# 12V 35/5W |
2 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-20420 |
ST18# |
1 | ||
| 81611-20520 |
ST18# |
1 | ||
| 81615A - SOCKET PLUG, CLEARANCE LAMP | ||||
| 81615-24020 |
ST18# |
2 | ||
| 81615-20520 |
ST18# |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-20420 |
ST18# |
1 | ||
| 81620-20520 |
ST18# |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-20420 |
ST18# |
1 | ||
| 81621-20520 |
ST18# |
1 | ||
| 81710C - MARKER ASSY, FENDER | ||||
| 81710-20070 |
ST18# |
2 | ||
| Common parts | ||||
| 90167-40027 | ||||
(9108- )

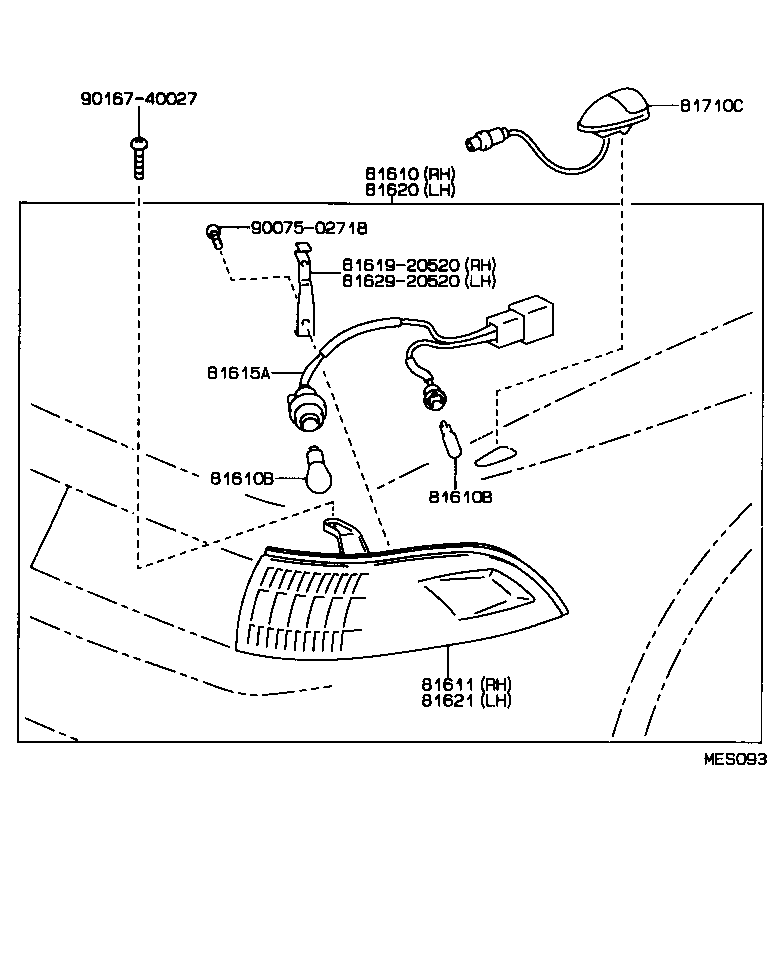

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-20420 |
ST18# |
1 | ||
| 81610-20520 |
ST18# |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
ST18# 12V 5W |
2 | ||
| 90981-13036 |
ST18# 12V 35/5W |
2 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
ST18# 12V 5W |
2 | ||
| 90981-13036 |
ST18# 12V 35/5W |
2 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-20420 |
ST18# |
1 | ||
| 81611-20520 |
ST18# |
1 | ||
| 81615A - SOCKET PLUG, CLEARANCE LAMP | ||||
| 81615-24020 |
ST18# |
2 | ||
| 81615-20520 |
ST18# |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-20420 |
ST18# |
1 | ||
| 81620-20520 |
ST18# |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-20420 |
ST18# |
1 | ||
| 81621-20520 |
ST18# |
1 | ||
| 81710C - MARKER ASSY, FENDER | ||||
| 81710-20070 |
ST18# |
2 | ||
| Common parts | ||||
| 81619-20520 | ||||
| 81629-20520 | ||||
| 90075-02718 | ||||
| 90167-40027 | ||||
