ST183-ATPVF (1989)
Toyota Corona Exiv
Production
Sep 1989
-
Sep 1993
Engine
3SGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )

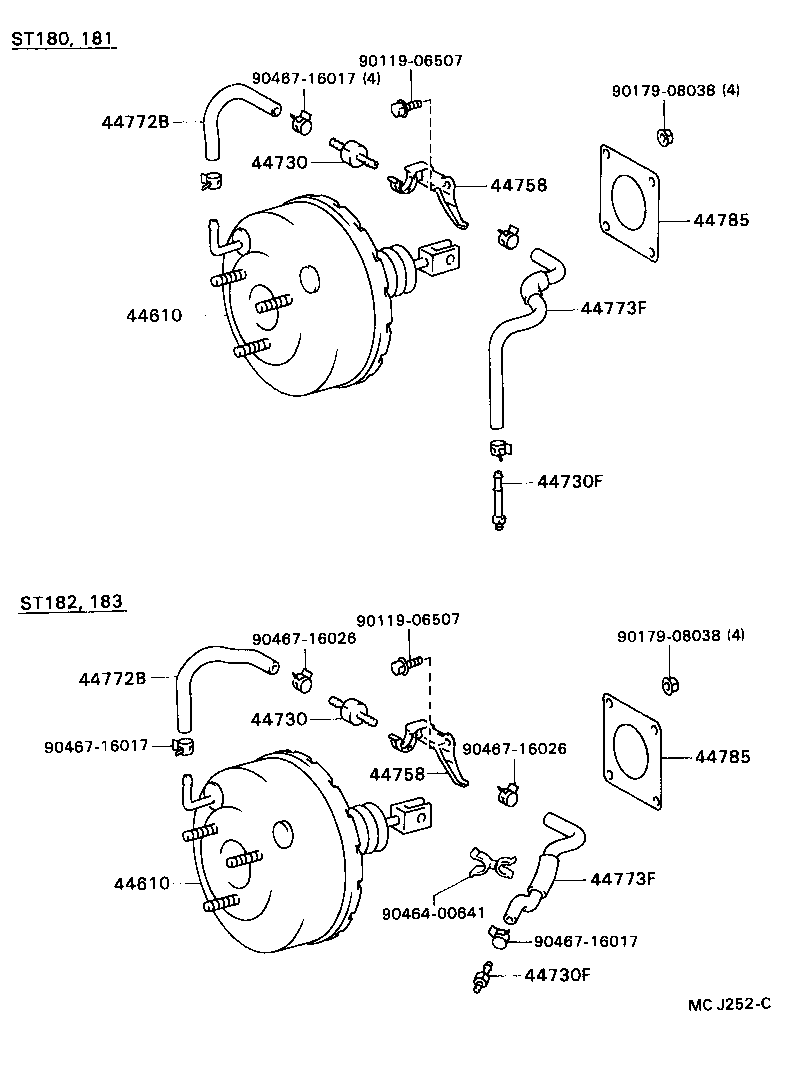

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B470 |
ST182,183 |
1 | ||
| 44610-2B480 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 44610-2B490 |
ST182,183 |
1 | ||
| 44610-2B480 |
ST182,183 |
1 | ||
| 44610-2B550 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B470 |
ST182,183 |
1 | ||
| 44610-2B480 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 44610-2B490 |
ST182,183 |
1 | ||
| 44610-2B480 |
ST182,183 |
1 | ||
| 44610-2B550 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20120 |
ST18# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20120 |
ST18# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
ST18#..EFI,TWC |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
ST18#..EFI,TWC |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20210 |
ST18# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20210 |
ST18# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20270 |
ST182,183 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20270 |
ST182,183 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20730 |
ST182,183..TWC |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20730 |
ST182,183..TWC |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
ST18# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06507 | ||||
| 90179-08038 | ||||
| 90464-00641 | ||||
| 90467-16017 | ||||
| 90467-16026 | ||||
