ST183-ATPVF (1989)
Toyota Corona Exiv

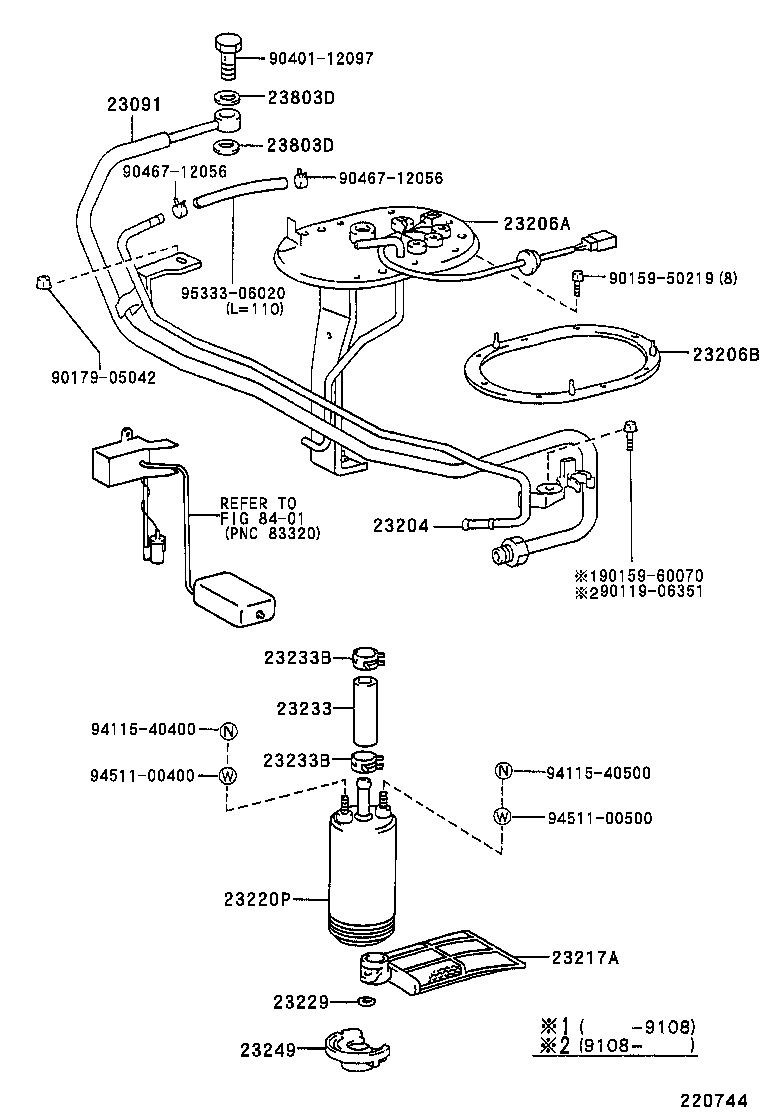

ILLUST NO. 3 OF 3(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-74140 |
3S#,4SF#..ST18# |
1 | ||
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-74501 |
3S#,4SFE..ST18# |
1 | ||
| 23204-74510 |
3S#,4SF#..ST18# |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74510 |
3S#,4SF#..ST18# |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-20040 |
3S#,4SF#..ST18# |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74500 |
3S#,4SF#..ST18# |
1 | ||
| 23217-74501 |
3S#,4SFE..ST18# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-16390 |
3S#,4SF#..ST18# |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3S#,4SF#..ST18# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-63010 |
3S#,4SF#..ST18# |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
3S#,4SF#..ST18# |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
3S#,4SF#..ST18# |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
3S#,4SF#..ST18# |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
3S#,4SF#..ST18# |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
3S#,4SF#..ST18# |
2 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90159-50219 | ||||
| 90159-60070 | ||||
| 90179-05042 | ||||
| 90401-12097 | ||||
| 90467-12056 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

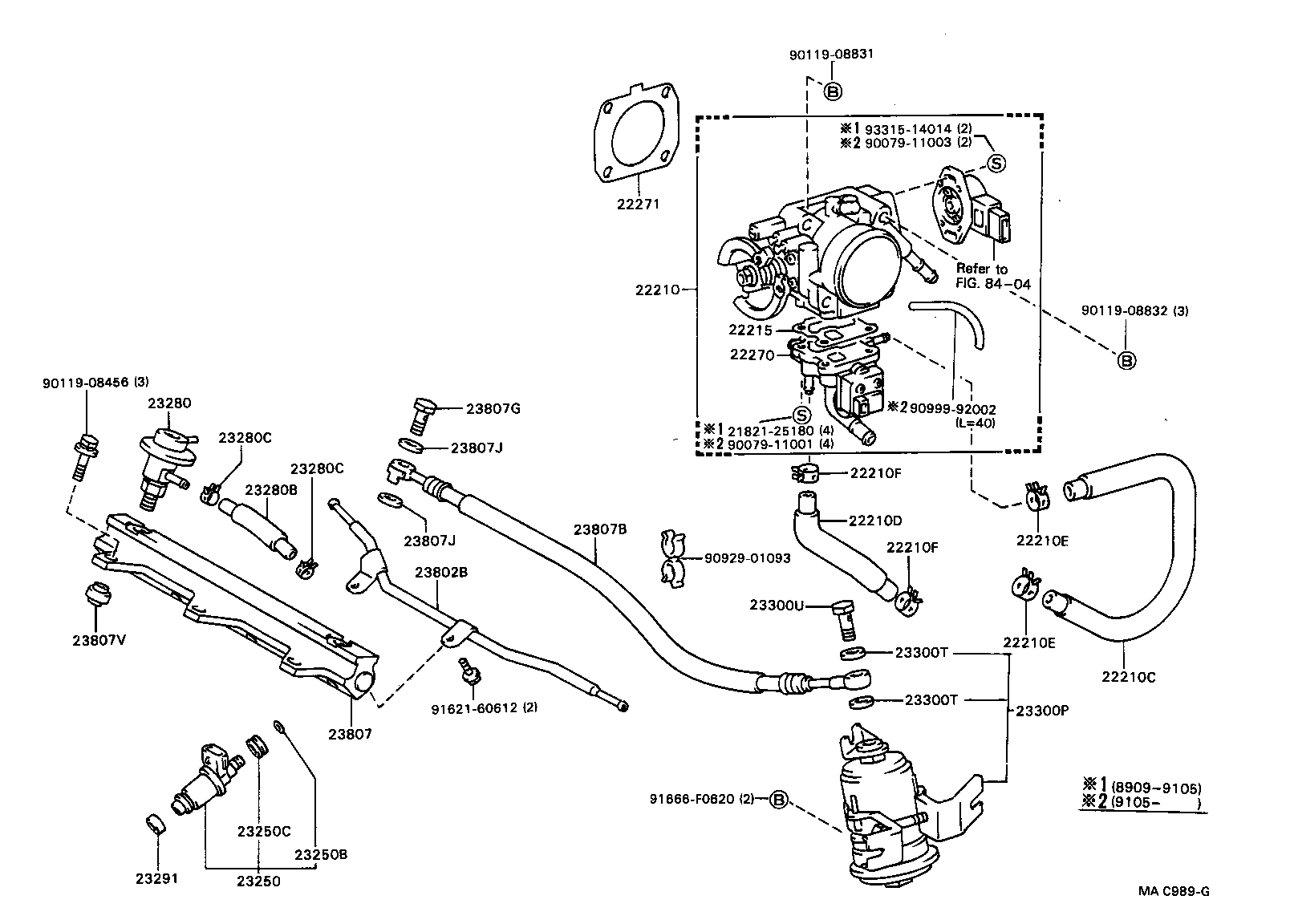

ILLUST NO. 1 OF 3(8909- )3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-74390 |
3SGE..ST182,183..ATM |
1 | ||
| 22210-74680 |
3SGE..ST182,183..ATM |
1 | ||
| 22210-74680 |
3SGE..ST182,183 |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16264-88361 |
3SGE..ST182,183 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16267-88361 |
3SGE..ST182,183 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
3S#,4SF#..ST18# |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
3S#,4SF#..ST18# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
3S#,4SFE..ST18# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
3S#,4SFE..ST18# |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74380 |
3SGE..ST182,183 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74070 |
3SGE..ST182,183 |
1 | ||
| 22270-74070 |
3SGE..ST182,183..ATM |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74050 |
3SGE..ST182,183 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74080 |
3SGE..ST182,183 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
3S#,4SFE..ST18# |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3S#,4SFE..ST18# |
4 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74050 |
3SGE..ST182,183 |
1 | ||
| 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN | ||||
| 90447-12051 |
3SGE..ST182,183 |
1 | ||
| 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-11009 |
3SGE..ST182,183 |
2 | ||
| 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-11009 |
3SGE..ST182,183 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
3S#,4SFE..ST18# |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79235 |
3S#,4SF#..ST18# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
3S#,4SF#..ST18# |
2 | ||
| 90430-12026 |
3S#,4SFE..ST18# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
3S#,4SF#..ST18# |
2 | ||
| 90430-12026 |
3S#,4SFE..ST18# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
3S#,4SF#..ST18# |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-88362 |
3SGE..ST182,183 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-74050 |
3SGE..ST182,183 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 90923-01366 |
3SGE..ST182,183 |
1 | ||
| 23807G - BOLT, UNION PIPE FUEL DELIVARY INLET | ||||
| 90401-12097 |
3SGE..ST182,183 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
3SGE..ST182,183 |
2 | ||
| 90430-12005 |
3SGE..ST182,183 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
3SGE..ST182,183 |
2 | ||
| 90430-12005 |
3SGE..ST182,183 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08024 |
3SGE..ST182,183 |
3 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11001 | ||||
| 90079-11003 | ||||
| 90119-08456 | ||||
| 90119-08831 | ||||
| 90119-08832 | ||||
| 90929-01093 | ||||
| 90999-92002 | ||||
| 91621-60612 | ||||
| 91666-F0620 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8404 | ||||
