Toyota Corona exiv ST183 IGNITION COIL & SPARK PLUG / GLOW PLUG

ST183-ATPVF (1989)

Toyota Corona Exiv

Production Sep 1989 - Sep 1993

Engine 3SGE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

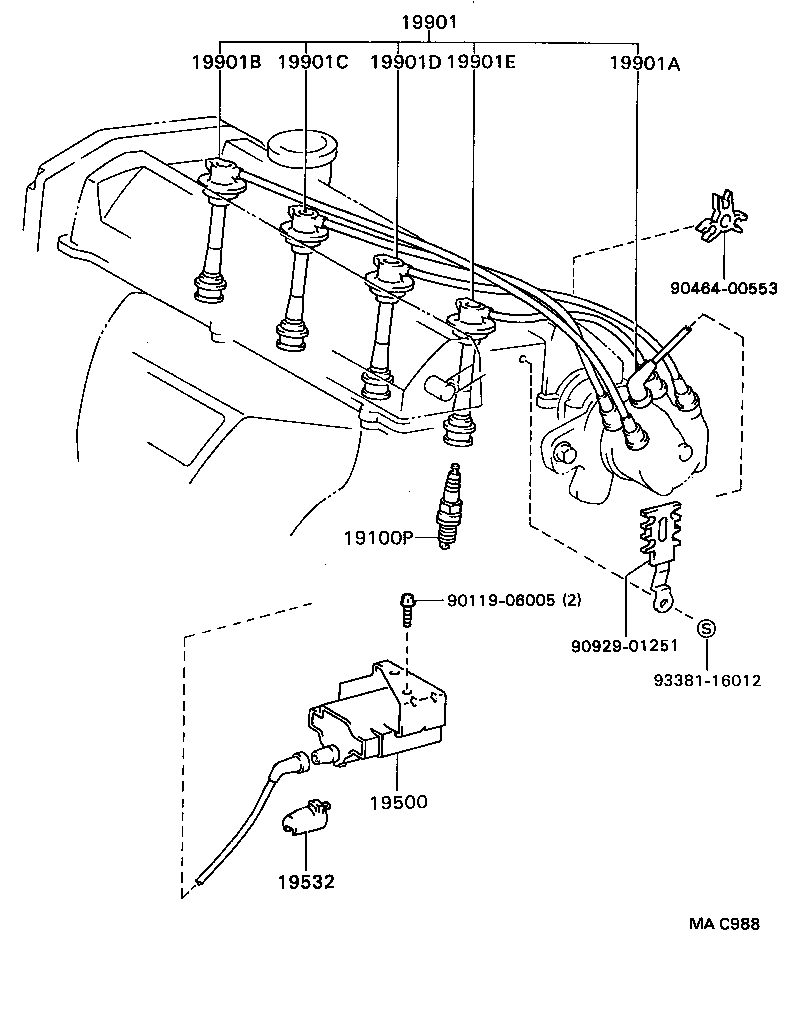

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100P - PLUG, SPARK
90919-01180	3SGE..ST182,183 PK20R8	09/1989 - 09/1993	4
90919-01181	3SGE..ST182,183 BKR6EP−8	09/1989 - 09/1993	4
19500 - COIL ASSY, IGNITION
19500-74020	3S#..ST182,183	09/1989 - 08/1990	1
19500-74020	3SGE..ST182,183	08/1990 - 08/1991	1
19500-74040	3S#..ST182,183	08/1991 - 09/1993	1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-74010	3SGE..ST182,183	09/1989 - 08/1991	1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21525	3SGE..ST182,183	08/1991 - 09/1993	1
90919-21468	3SGE..ST182,183	09/1989 - 08/1991	1
19901A - CORD, COIL RESISTIVE
19590-74040	3SGE..ST182,183	09/1989 - 08/1991	1
19590-74150	3SGE..ST182,183	08/1991 - 09/1993	1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15262	3SGE..ST182,183	08/1991 - 09/1993	1
90919-15046	3SGE..ST182,183	09/1989 - 08/1991	1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15047	3SGE..ST182,183	09/1989 - 08/1991	1
90919-15263	3SGE..ST182,183	08/1991 - 09/1993	1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15048	3SGE..ST182,183	09/1989 - 08/1991	1
90919-15264	3SGE..ST182,183	08/1991 - 09/1993	1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15049	3SGE..ST182,183	09/1989 - 08/1991	1
90919-15265	3SGE..ST182,183	08/1991 - 09/1993	1
Common parts
90119-06005
90464-00553
90929-01251
93381-16012

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100P - PLUG, SPARK
90919-01180	3SGE..ST182,183 PK20R8	09/1989 - 09/1993	4
90919-01181	3SGE..ST182,183 BKR6EP−8	09/1989 - 09/1993	4
19500 - COIL ASSY, IGNITION
19500-74020	3S#..ST182,183	09/1989 - 08/1990	1
19500-74020	3SGE..ST182,183	08/1990 - 08/1991	1
19500-74040	3S#..ST182,183	08/1991 - 09/1993	1
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74020	3SGE..ST182,183	08/1991 - 09/1993	1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-62020	3SGE..ST182,183	08/1991 - 09/1993	1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21525	3SGE..ST182,183	08/1991 - 09/1993	1
90919-21468	3SGE..ST182,183	09/1989 - 08/1991	1
19901A - CORD, COIL RESISTIVE
19590-74040	3SGE..ST182,183	09/1989 - 08/1991	1
19590-74150	3SGE..ST182,183	08/1991 - 09/1993	1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15262	3SGE..ST182,183	08/1991 - 09/1993	1
90919-15046	3SGE..ST182,183	09/1989 - 08/1991	1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15047	3SGE..ST182,183	09/1989 - 08/1991	1
90919-15263	3SGE..ST182,183	08/1991 - 09/1993	1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15048	3SGE..ST182,183	09/1989 - 08/1991	1
90919-15264	3SGE..ST182,183	08/1991 - 09/1993	1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15049	3SGE..ST182,183	09/1989 - 08/1991	1
90919-15265	3SGE..ST182,183	08/1991 - 09/1993	1
Common parts
90119-06005
90464-00644
90929-01291
91621-60612
