ST183-ATPSK (1989)

Toyota Corona Exiv

Production Sep 1989 - Sep 1993
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

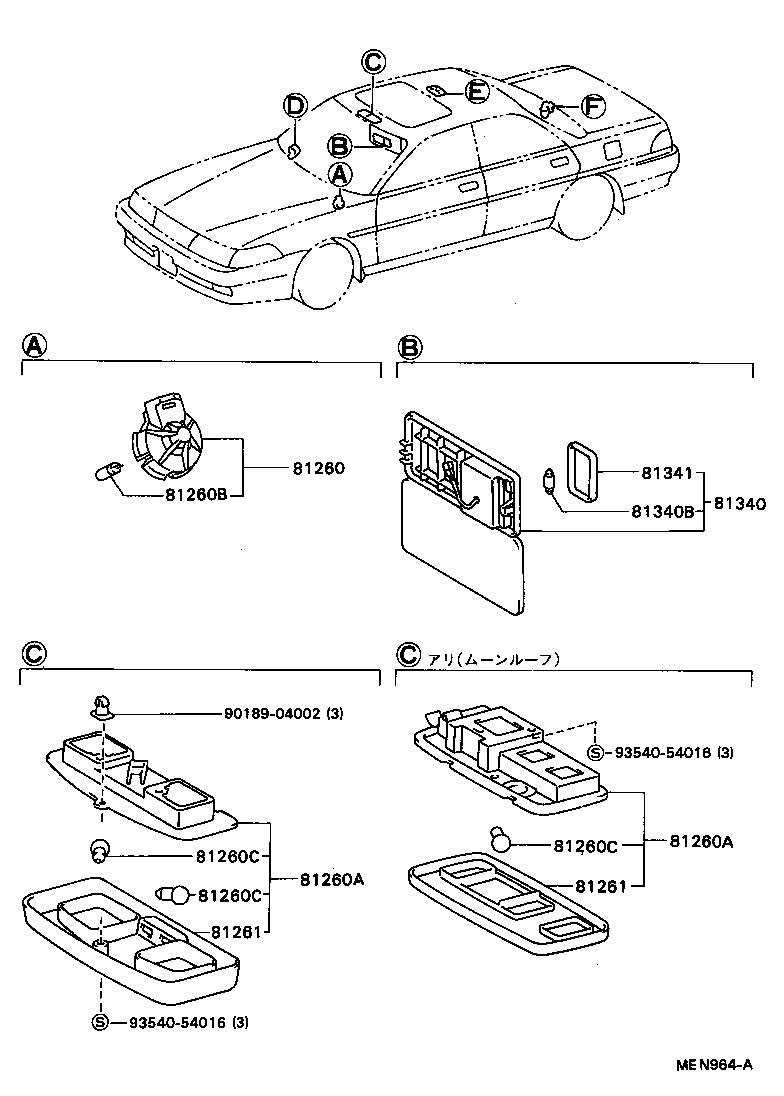

ILLUST NO. 1 OF 2(8909- )

Click highlighted areas on diagram

diagram 81260 81260A 81260A 81260B 81260C 81260C 81260C 81261 81261 81340 81340B 81341 9018904002 9354054016 9354054016
Part # Description Qty Price
81260 - LAMP ASSY, GLOVE BOX
81260-32071

ST18#

 1
81260A - LAMP ASSY, MAP
81260-2016016

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81260-2016003

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81260-20160S3

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81260-2016012

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAUVE,TRIM3#

 1
81260-2013002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
81260-20160S3

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81260-2016016

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81260-2013003

ST18#

GRAY,TRIM1#

 1
81260-2013016

ST18#

SABLE,TRIM4#

 1
81260-20130D7

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
81260A - LAMP ASSY, MAP
81260-2016016

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81260-2016003

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81260-20160S3

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81260-2016012

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAUVE,TRIM3#

 1
81260-2013002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
81260-20160S3

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81260-2016016

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81260-2013003

ST18#

GRAY,TRIM1#

 1
81260-2013016

ST18#

SABLE,TRIM4#

 1
81260-20130D7

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

ST18#

12V 1.2W ｿｹｯﾄ無し

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

ST18#

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
90981-12005

ST18#

12V 8W

 2
90981-12014

ST182,183;ST180,181..FE

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

ST18#

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
90981-12005

ST18#

12V 8W

 2
90981-12014

ST182,183;ST180,181..FE

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

ST18#

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
90981-12005

ST18#

12V 8W

 2
90981-12014

ST182,183;ST180,181..FE

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81261 - LENS AND COVER, MAP LAMP
81261-2016016

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81261-2016003

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81261-2013003

ST18#

GRAY,TRIM1#

 1
81261-2013002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
81261-20130D0

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
81261-2016003

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81261-2016012

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAUVE,TRIM3#

 1
81261-2013016

ST18#

SABLE,TRIM4#

 1
81261-2016016

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81261 - LENS AND COVER, MAP LAMP
81261-2016016

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81261-2016003

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81261-2013003

ST18#

GRAY,TRIM1#

 1
81261-2013002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
81261-20130D0

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
81261-2016003

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81261-2016012

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAUVE,TRIM3#

 1
81261-2013016

ST18#

SABLE,TRIM4#

 1
81261-2016016

ST182,183;ST180,181..FE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81340 - LAMP ASSY, VANITY
81340-1405013

ST182,183;ST180,181..FE

SHADOW GRAY,TRIM1#

 1
81340-1405016

ST182,183;ST180,181..FE

SABLE,TRIM4#

 1
81340-1405012

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
81340B - BULB (FOR VANITY LAMP)
90981-14002

ST182,183;ST180,181..FE

12V 5W

 1
81341 - LENS, VANITY LAMP
81341-14020

ST182,183;ST180,181..FE

 1
Common parts
90189-04002
93540-54016

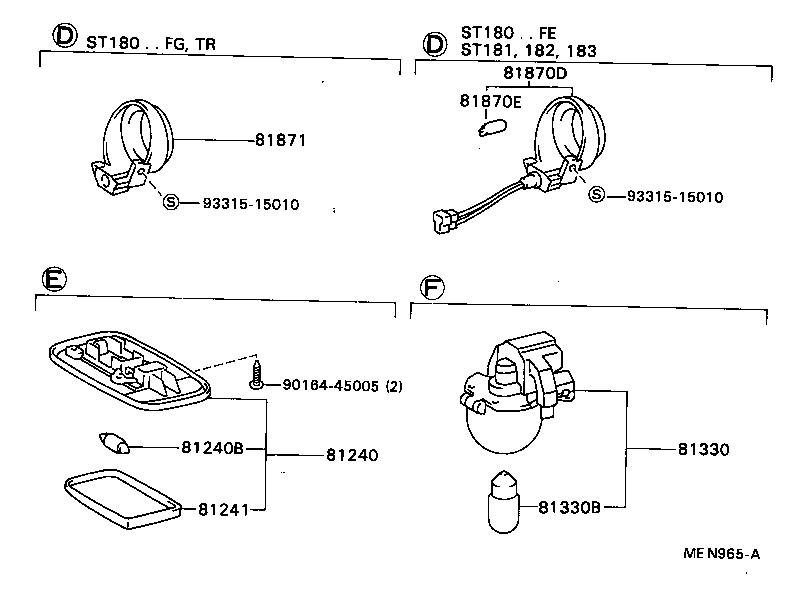

ILLUST NO. 2 OF 2(8909- )

Click highlighted areas on diagram

diagram 81240 81240B 81241 81330 81330B 81870D 81870E 81871 9016445005 9331515010 9331515010
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2011006

ST18#

SABLE,TRIM4#

 1
81240-2011012

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
81240-2011003

ST18#

SHADOW GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

ST18#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

ST18#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-30090

ST18#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

ST18#

12V 3.8W

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-20030

ST182,183;ST180,181..FE

 1
81870-22030

ST182,183;ST180,181..FE

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

ST182,183

12V 1.2W ｿｹｯﾄ無し

 1
Common parts
90164-45005
93315-15010
