ST183-ATPGK (1989)

Toyota Corona Exiv

Production Sep 1989 - Sep 1993
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )3SFE,4SF#

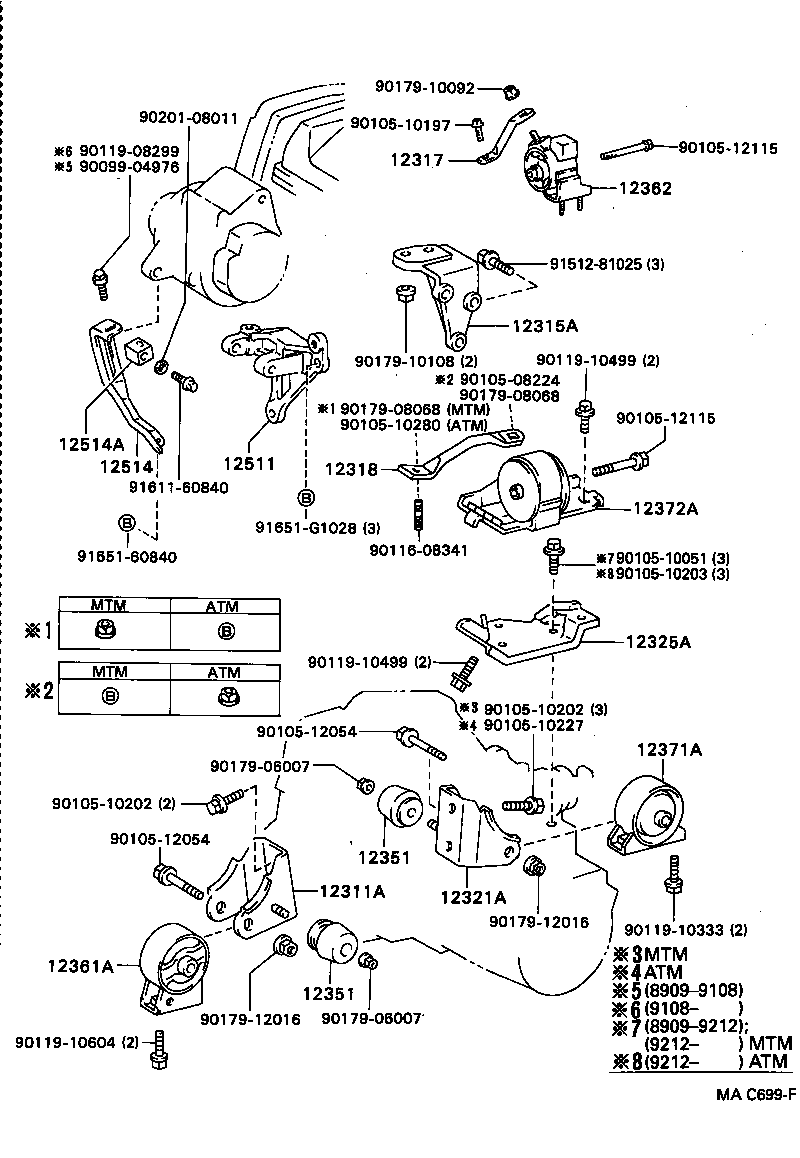

Click highlighted areas on diagram

diagram 12311A 12315A 12317 12318 12321A 12325A 12351 12351 12361A 12362 12371A 12372A 12511 12514 12514A 9009904976 9010508224 9010510051 9010510197 9010510202 9010510202 9010510203 9010510227 9010510280 9010512054 9010512054 9010512115 9010512115 9011608341 9011908299 9011910333 9011910499 9011910499 9011910604 9017906007 9017906007 9017908068 9017908068 9017910092 9017910108 9017912016 9017912016 9020108011 9151281025 9161160840 9165160840 91651G1028
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74080

3S#,4SF#..ST18#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-74030

3S#,4SF#..ST18#

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-74080

3SFE,4SF#..ST18#

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-74100

3S#,4SF#..ST18#..ATM

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74150

3S#,4SF#..ST18#..ATM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74090

3S#,4SF#..ST18#..ATM

 1
12351 - DAMPER, ENGINE MOUNTING
12351-74060

3S#,4SF#..ST18#..ATM

ﾌﾛﾝﾄ

 1
12351-74070

3S#,4SF#..ST18#..ATM

ﾘﾔ

 1
12351 - DAMPER, ENGINE MOUNTING
12351-74060

3S#,4SF#..ST18#..ATM

ﾌﾛﾝﾄ

 1
12351-74070

3S#,4SF#..ST18#..ATM

ﾘﾔ

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74140

3S#,4SF#..ST18#..ATM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74120

3SFE,4SF#..ST18#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74190

3S#,4SF#..ST18#..ATM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74211

3SFE,4SF#..ST18#..ATM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74051

3SFE,4SFE..ST18#

 1
12511-74050

3SFE,4SF#..ST18#

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-74040

3SFE,4SF#..ST18#

 1
12514A - SLIDER, FAN BELT ADJUSTING
16385-64011

3SFE,4SF#..ST18#

 1
16385-64011

3SFE,4SFE..ST18#

ｱﾘ(ｴｱｺﾝ)

 1
16385-64011

3SFE,4SFE..ST18#

 1
Common parts
90099-04976
90105-08224
90105-10051
90105-10197
90105-10202
90105-10203
90105-10227
90105-10280
90105-12054
90105-12115
90116-08341
90119-08299
90119-10333
90119-10499
90119-10604
90179-06007
90179-08068
90179-10092
90179-10108
90179-12016
90201-08011
91512-81025
91611-60840
91651-60840
91651-G1028
