ST183-ATMVF (1989)
Toyota Corona Exiv
Production
Sep 1989
-
Sep 1993
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

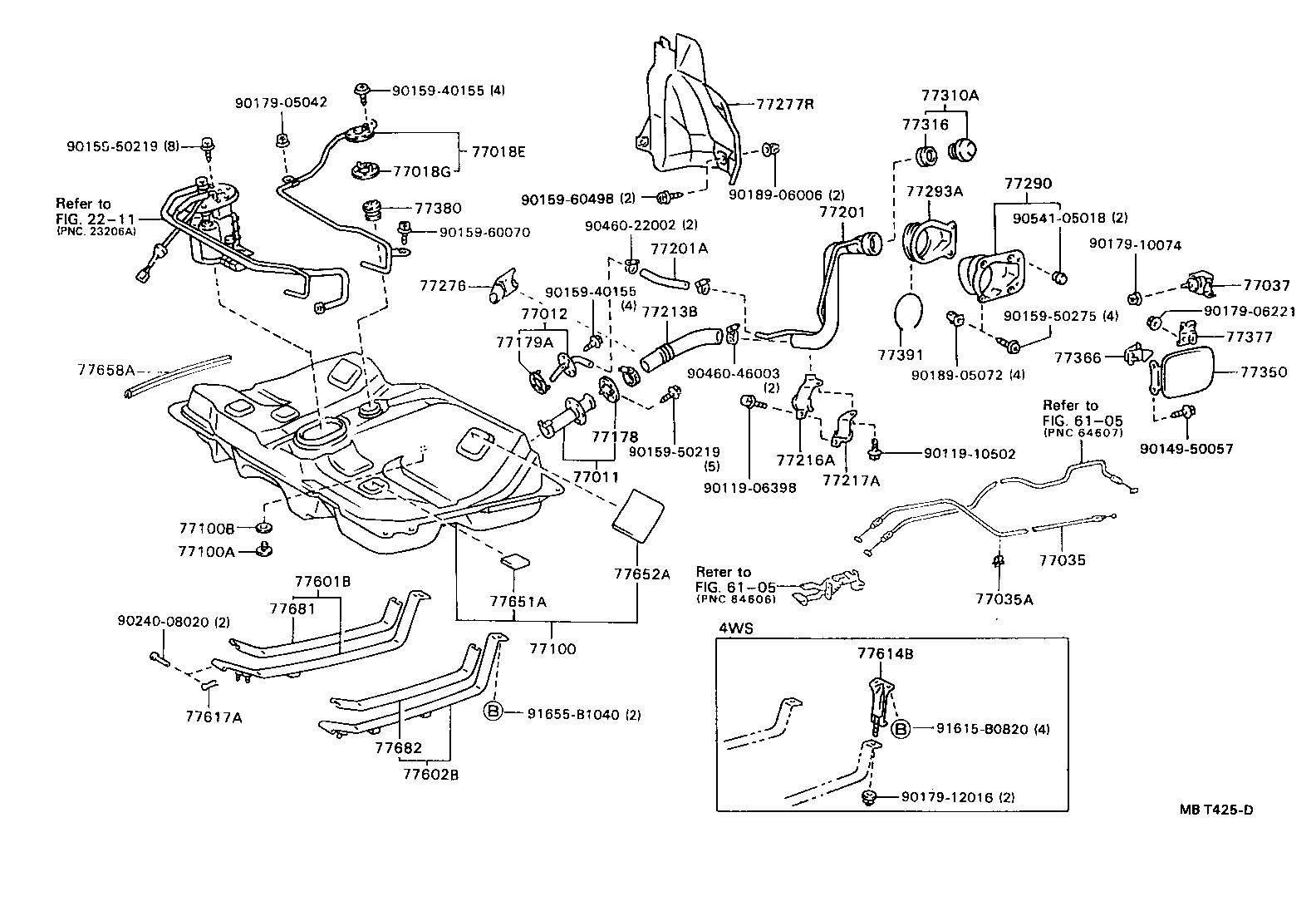

ILLUST NO. 1 OF 2(8909- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-20080 |
ST18# |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-20090 |
ST18# |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-20120 |
ST18# |
1 | ||
| 77018-20121 |
ST18# |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
ST18# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-20210 |
ST18# |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90959-01334 |
ST18# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-20060 |
ST18# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-29285 |
ST18# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
ST18# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
ST18# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
ST18# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
ST18# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20360 |
ST181,183 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22033 |
ST18# 長さ=175 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-20130 |
ST181,183 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-20130 |
ST18# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-20030 |
ST18# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-20180 |
ST18# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-20130 |
ST18# |
1 | ||
| 77290-20130 |
ST180,182,183;ST181..FE..CI;ST181..ATM..TR;ST181..MTM..TR..CI |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20080 |
ST180,182,183;ST181..FE..CI;ST181..ATM..TR;ST181..MTM..TR..CI |
1 | ||
| 77293-20080 |
ST18# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
ST18# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
ST18# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-20180 |
ST18# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12030 |
ST18# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20050 |
ST18# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
ST18# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
ST18# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-20161 |
ST181,183 |
1 | ||
| 77601-20160 |
ST181,183 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-20190 |
ST181,183 |
1 | ||
| 77602-20191 |
ST181,183 |
1 | ||
| 77614B - BRACKET, FUEL TANK BAND, NO.2 | ||||
| 77614-20080 |
ST181,183 |
2 | ||
| 77617A - UNION, AUXILIARY FUEL BAND | ||||
| 77617-12010 |
ST18# |
2 | ||
| 90468-14004 |
ST18# ﾀｲﾌﾟ B |
2 | ||
| 77617-12010 |
ST18# ﾀｲﾌﾟ A |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-32030 |
ST18# |
6 | ||
| 77651-20090 |
ST18# |
4 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20110 |
ST18# |
4 | ||
| 77652-20110 |
ST18# |
2 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-20020 |
ST18# |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-20030 |
ST18# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-20030 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90119-10502 | ||||
| 90149-50057 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90159-50275 | ||||
| 90159-60070 | ||||
| 90159-60498 | ||||
| 90179-05042 | ||||
| 90179-06221 | ||||
| 90179-10074 | ||||
| 90179-12016 | ||||
| 90189-05072 | ||||
| 90189-06006 | ||||
| 90240-08020 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90541-05018 | ||||
| 91615-B0820 | ||||
| 91655-B1040 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||

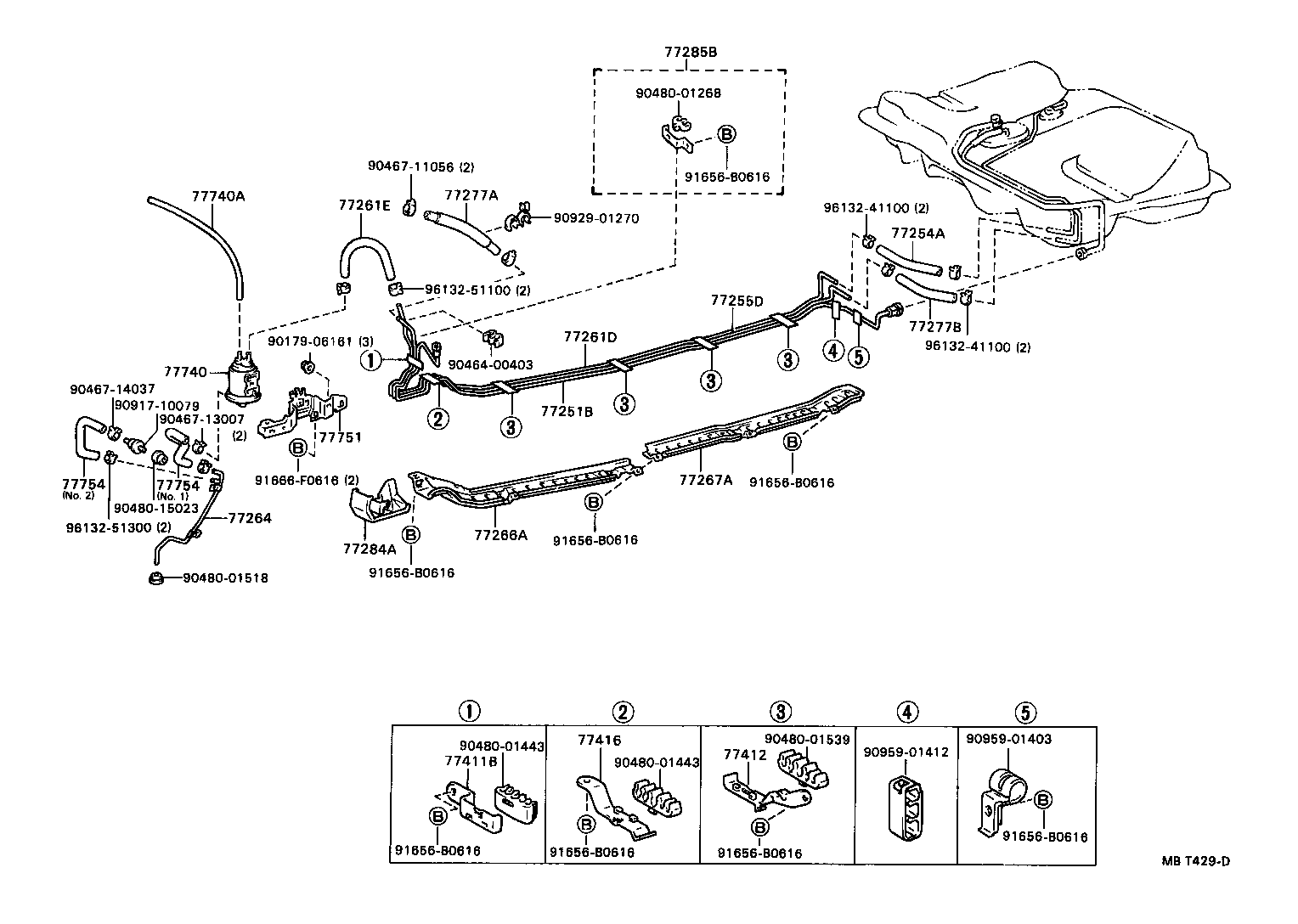

ILLUST NO. 2 OF 2(8909- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20510 |
ST18# |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06020 |
ST18# *H,L=200 |
1 | ||
| 95333-06020 |
ST18# *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20360 |
ST18# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-20230 |
ST18# |
1 | ||
| 77261-20231 |
ST18# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-20120 |
ST18# 長さ=170 |
1 | ||
| 77259-20060 |
ST18# 長さ=240 |
1 | ||
| 95333-06020 |
ST18# *H,L=200 |
1 | ||
| 77264 - TUBE, CANISTER TO FRONT SIDE MEMBER | ||||
| 77264-20080 |
ST18# |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20110 |
ST18# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20070 |
ST18# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12103 |
ST18#..CI,TWC 長さ=380 |
1 | ||
| 90447-12084 |
ST182,183..TWC 長さ=280 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 77259-20110 |
ST18# 長さ=160 |
1 | ||
| 95333-06020 |
ST18# *H,L=200 |
1 | ||
| 77259-20130 |
ST18# 長さ=150 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-20020 |
ST18# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20060 |
ST18# |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-20030 |
ST18# |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-20020 |
ST18# |
4 | ||
| 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 | ||||
| 77416-20010 |
ST18# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-20380 |
ST182,183..TWC |
1 | ||
| 77704-20260 |
ST18# |
1 | ||
| 77704-20230 |
ST18# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
ST182,183..TWC 長さ=600 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-20230 |
ST18# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20110 |
ST18# NO.2 |
1 | ||
| 77754-20100 |
ST18# NO.1 |
1 | ||
| 77754-20110 |
ST182,183..TWC NO.2 |
1 | ||
| 77754-20100 |
ST182,183..TWC NO.1 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20110 |
ST18# NO.2 |
1 | ||
| 77754-20100 |
ST18# NO.1 |
1 | ||
| 77754-20110 |
ST182,183..TWC NO.2 |
1 | ||
| 77754-20100 |
ST182,183..TWC NO.1 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90464-00403 | ||||
| 90467-11056 | ||||
| 90467-13007 | ||||
| 90467-14037 | ||||
| 90480-01268 | ||||
| 90480-01443 | ||||
| 90480-01518 | ||||
| 90480-01539 | ||||
| 90480-15023 | ||||
| 90917-10079 | ||||
| 90929-01270 | ||||
| 90959-01403 | ||||
| 90959-01412 | ||||
| 91656-B0616 | ||||
| 91666-F0616 | ||||
| 96132-41100 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
