Toyota Corona exiv ST183 STARTER

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-74011	3S#,4SF#..ST18#	09/1989 - 08/1991	1
28011-74060	3SFE,4SFE..ST18#	08/1991 - 09/1993	1
28100 - STARTER ASSY
28100-74011	3SFE,4SF#..ST18# 12V 1.0KW	09/1989 - 09/1993	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-74010	3SFE,4SF#..ST18#	09/1989 - 09/1993	1
28120 - YOKE ASSY, STARTER
28120-26071	3SFE,4SF#..ST18#	09/1989 - 09/1993	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-74010	3SFE,4SF#..ST18#	09/1989 - 09/1993	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-74010	3SFE,4SF#..ST18#	09/1989 - 09/1993	1
28143 - SPRING, STARTER BRUSH
90099-17112	3S#,4SF#..ST18#	09/1989 - 09/1993	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-74010	3SFE,4SF#..ST18#	09/1989 - 09/1993	1
28160 - ARMATURE ASSY, STARTER
28160-26071	3SFE,4SF#..ST18#	09/1989 - 09/1993	1
28160A - BEARING, STARTER ARMATURE
28253-45020	3SFE,4SF#..ST18# NO.1	09/1989 - 09/1993	1
90099-10113	3SFE,4SF#..ST18# NO.2	09/1989 - 09/1993	1
28160A - BEARING, STARTER ARMATURE
28253-45020	3SFE,4SF#..ST18# NO.1	09/1989 - 09/1993	1
90099-10113	3SFE,4SF#..ST18# NO.2	09/1989 - 09/1993	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-74010	3S#,4SF#..ST18#	09/1989 - 08/1991	1
28165-74010	3SFE,4SFE..ST18#	08/1991 - 09/1993	1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040	3S#,4SF#..ST18#	09/1989 - 09/1993	5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040	3S#,4SF#..ST18#	09/1989 - 08/1991	1
28229-26040	3SFE,4SFE..ST18#	08/1991 - 09/1993	1
28252 - GEAR, STARTER IDLE
28254-54070	3SFE,4SF#..ST18#	09/1989 - 09/1993	1
Common parts
90099-00902
90099-00907
90099-04562
90099-05129
90099-12009
90179-08146
91611-61035
94110-40800
94511-00800

ST183-ATMSK (1989)

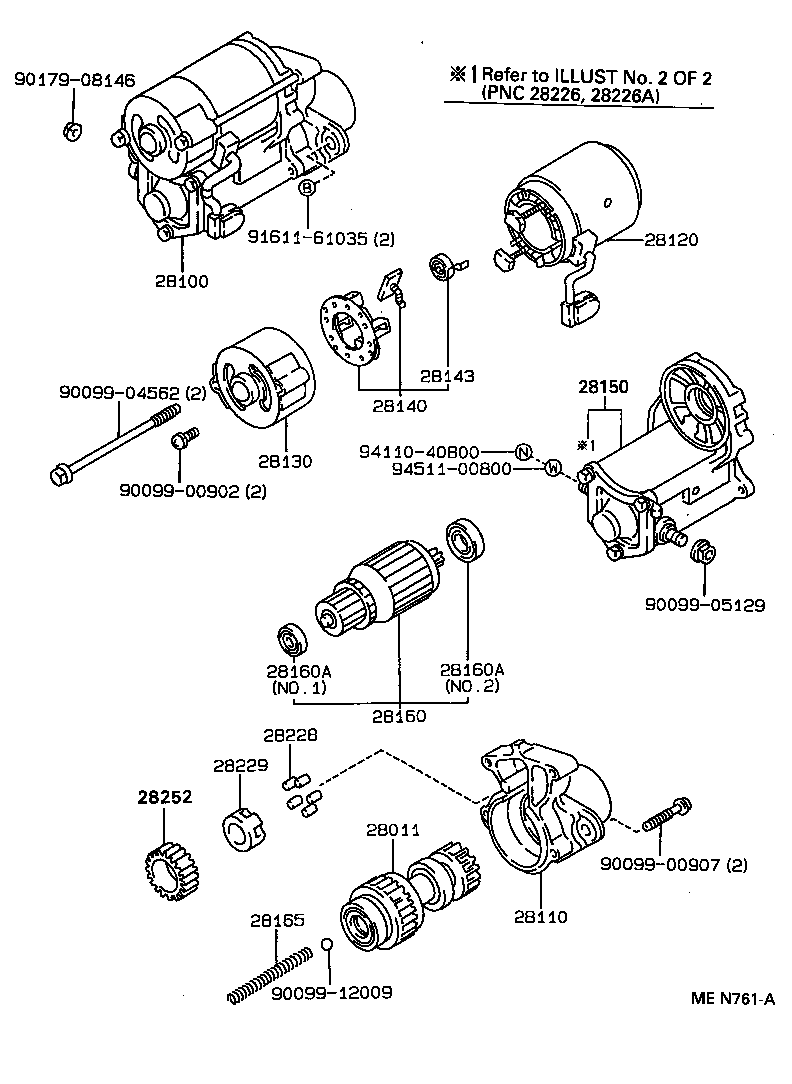

ILLUST NO. 1 OF 2(8909- )3SFE,4SF#

ILLUST NO. 2 OF 2(8909- )
