ST183-ATMGK (1989)
Toyota Corona Exiv
Production
Sep 1989
-
Sep 1993
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )ST182,183

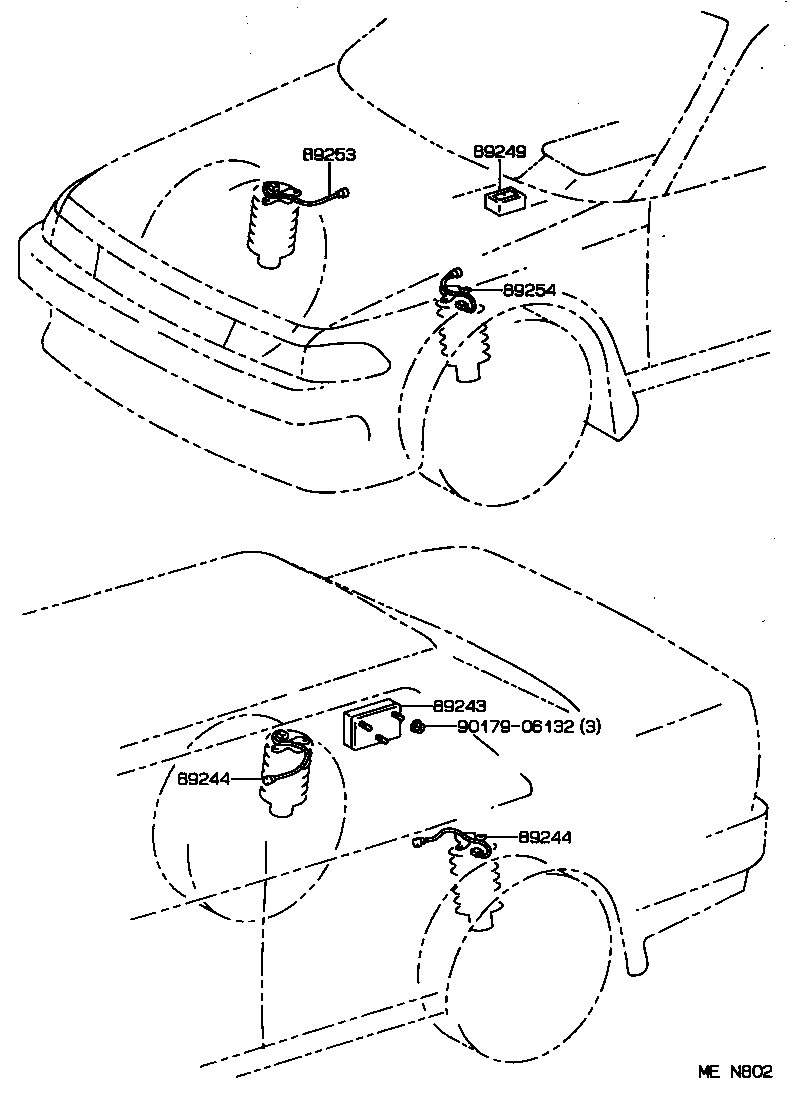

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89243 - COMPUTER, ABSORBER CONTROL | ||||
| 89243-20090 |
ST182,183 |
1 | ||
| 89244 - WIRE, ABSORBER CONTROL, REAR | ||||
| 89244-20010 |
ST182,183 |
2 | ||
| 89244 - WIRE, ABSORBER CONTROL, REAR | ||||
| 89244-20010 |
ST182,183 |
2 | ||
| 89249 - SWITCH, ABSORBER CONTROL | ||||
| 89249-20030 |
ST182,183 |
1 | ||
| 89253 - WIRE, ABSORBER CONTROL, FRONT RH | ||||
| 89253-20030 |
ST182,183 |
1 | ||
| 89254 - WIRE, ABSORBER CONTROL, FRONT LH | ||||
| 89254-20030 |
ST182,183 |
1 | ||
| Common parts | ||||
| 90179-06132 | ||||
