ST182-ATPVF (1989)
Toyota Corona Exiv

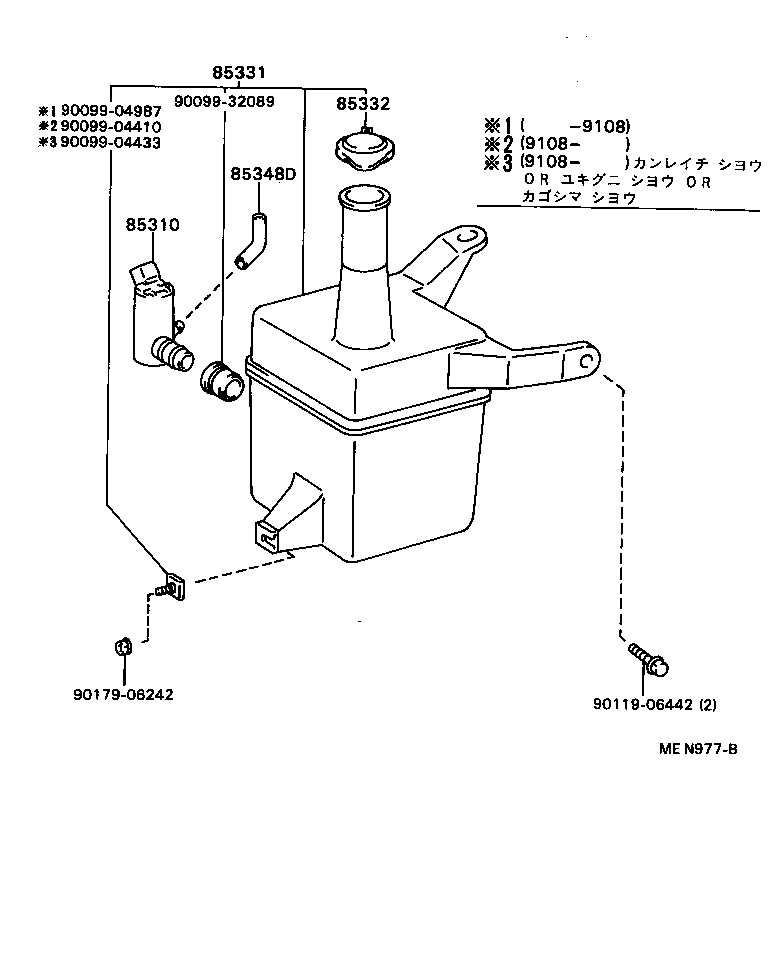

ILLUST NO. 1 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-12280 |
ST182,183;ST180,181..FE ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 85310-20170 |
ST182,183 ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 85310-20170 |
ST182,183;ST180,181..FE ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 85310-20210 |
ST18# |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-20760 |
ST182,183;ST180,181..FE 4.5L,ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 85331-20760 |
ST182,183;ST180,181..FE 4.5L,ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 85331-20770 |
ST18# 4.5L |
1 | ||
| 85331-20750 |
ST18# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-20750 |
ST18# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
ST18# |
1 | ||
| Common parts | ||||
| 90099-04410 | ||||
| 90099-04433 | ||||
| 90099-04987 | ||||
| 90099-32089 | ||||
| 90119-06442 | ||||
| 90179-06242 | ||||

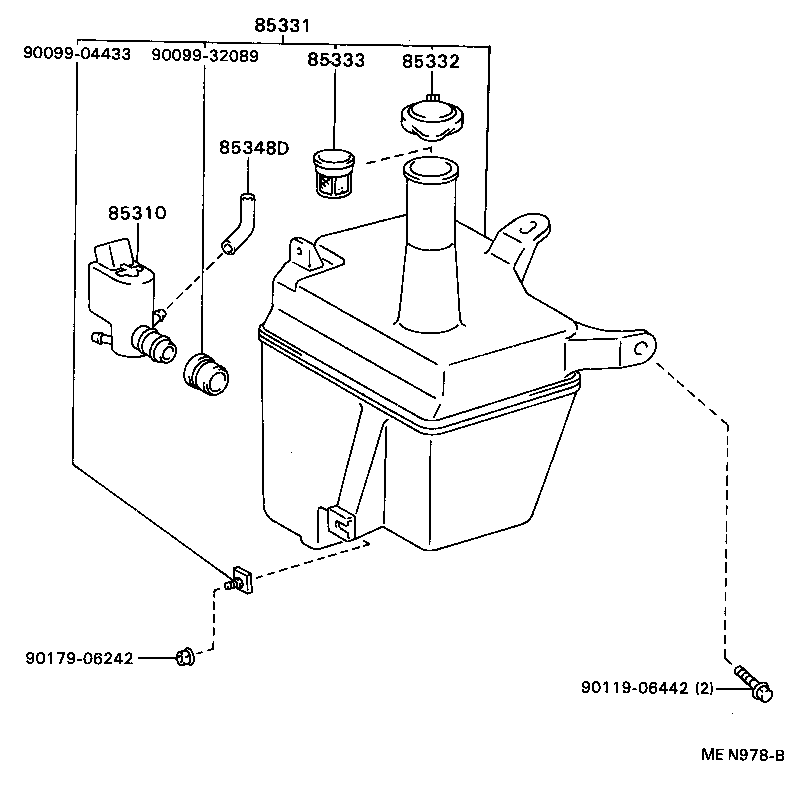

ILLUST NO. 1 OF 2(8909- )ST182,183 ; (8909- )ST180,181..FE
W(REAR WINDOW WIPER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-12280 |
ST182,183;ST180,181..FE ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 85310-20170 |
ST182,183 ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 85310-20170 |
ST182,183;ST180,181..FE ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 85310-20210 |
ST18# |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-20760 |
ST182,183;ST180,181..FE 4.5L,ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 85331-20760 |
ST182,183;ST180,181..FE 4.5L,ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 85331-20770 |
ST18# 4.5L |
1 | ||
| 85331-20750 |
ST18# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-20750 |
ST18# |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-12470 |
ST182,183;ST180,181..FE ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
ST18# |
1 | ||
| Common parts | ||||
| 90099-04433 | ||||
| 90099-32089 | ||||
| 90119-06442 | ||||
| 90179-06242 | ||||

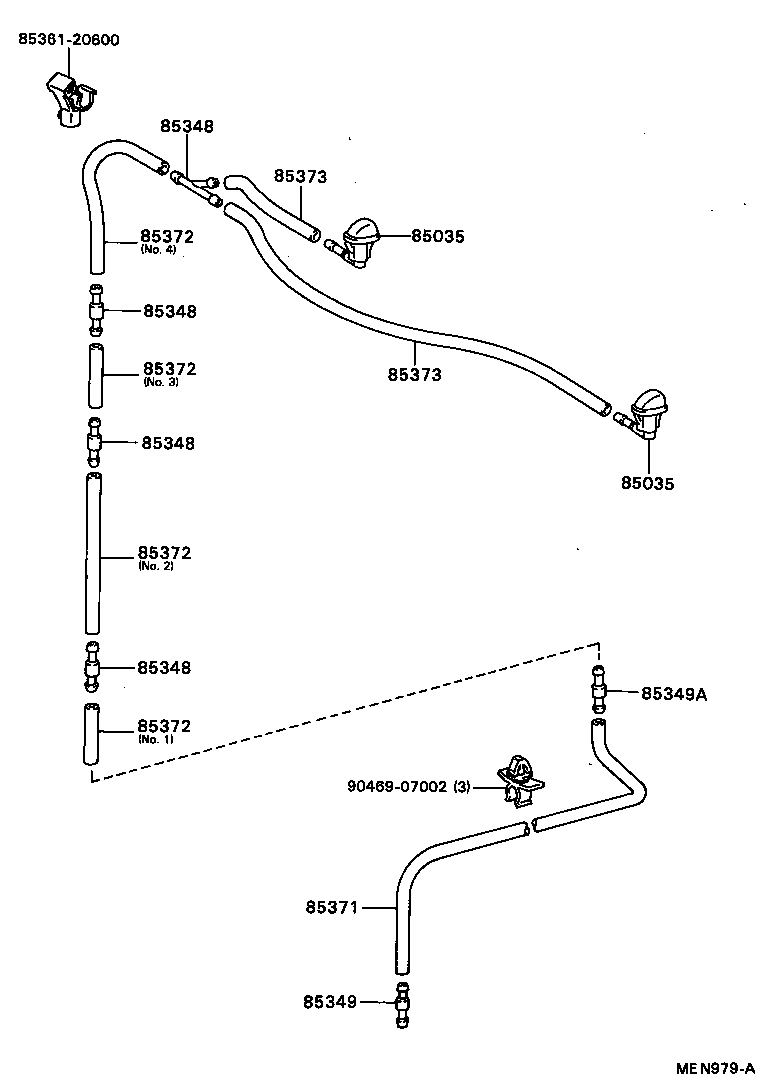

ILLUST NO. 2 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2037002 |
ST18# RED MICA,3H4 |
2 | ||
| 85035-2037001 |
ST18# BLACK,182 ,6K8 ,8G5 |
2 | ||
| 85035-2037001 |
ST18# BLACK,182 ,8G5 |
2 | ||
| 85035-2037007 |
ST18# LIGHT KHAKI G.M.M,6K7 |
2 | ||
| 85035-2037012 |
ST18# MAUVE G.M.,3J3 |
2 | ||
| 85035-20370G0 |
ST18# DARK MOSS GREEN M.M.,6M4 |
2 | ||
| 85035-2037001 |
ST18# BLACK,182 ,3K1 ,6K8 ,191 |
2 | ||
| 85035-2037008 |
ST18# SUPER WHITE,040 |
2 | ||
| 85035-20370H0 |
ST18# MEDIUM TURQUOISE M.,749 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2037002 |
ST18# RED MICA,3H4 |
2 | ||
| 85035-2037001 |
ST18# BLACK,182 ,6K8 ,8G5 |
2 | ||
| 85035-2037001 |
ST18# BLACK,182 ,8G5 |
2 | ||
| 85035-2037007 |
ST18# LIGHT KHAKI G.M.M,6K7 |
2 | ||
| 85035-2037012 |
ST18# MAUVE G.M.,3J3 |
2 | ||
| 85035-20370G0 |
ST18# DARK MOSS GREEN M.M.,6M4 |
2 | ||
| 85035-2037001 |
ST18# BLACK,182 ,3K1 ,6K8 ,191 |
2 | ||
| 85035-2037008 |
ST18# SUPER WHITE,040 |
2 | ||
| 85035-20370H0 |
ST18# MEDIUM TURQUOISE M.,749 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
ST18# |
1 | ||
| 85349-89122 |
ST18# 2 WAY |
3 | ||
| 85348-12250 |
ST18# 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
ST18# |
1 | ||
| 85349-89122 |
ST18# 2 WAY |
3 | ||
| 85348-12250 |
ST18# 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
ST18# |
1 | ||
| 85349-89122 |
ST18# 2 WAY |
3 | ||
| 85348-12250 |
ST18# 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
ST18# |
1 | ||
| 85349-89122 |
ST18# 2 WAY |
3 | ||
| 85348-12250 |
ST18# 3 WAY |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ST18# |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
ST18# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
ST18# *H,L=800 |
1 | ||
| 90446-07001 |
ST18# |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
ST18# NO.2 |
1 | ||
| 90446-07001 |
ST18# *H,L=440,NO.2 |
1 | ||
| 90099-33299 |
ST18# 長さ=1000,NO.1 |
1 | ||
| 90099-33080 |
ST18# L=1450,NO.3,NO.4 |
1 | ||
| 90099-33080 |
ST18# L=1450,NO.3,NO.4 |
2 | ||
| 90099-33080 |
ST18# *H,L=190,NO.3 & NO.4 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
ST18# NO.2 |
1 | ||
| 90446-07001 |
ST18# *H,L=440,NO.2 |
1 | ||
| 90099-33299 |
ST18# 長さ=1000,NO.1 |
1 | ||
| 90099-33080 |
ST18# L=1450,NO.3,NO.4 |
1 | ||
| 90099-33080 |
ST18# L=1450,NO.3,NO.4 |
2 | ||
| 90099-33080 |
ST18# *H,L=190,NO.3 & NO.4 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
ST18# NO.2 |
1 | ||
| 90446-07001 |
ST18# *H,L=440,NO.2 |
1 | ||
| 90099-33299 |
ST18# 長さ=1000,NO.1 |
1 | ||
| 90099-33080 |
ST18# L=1450,NO.3,NO.4 |
1 | ||
| 90099-33080 |
ST18# L=1450,NO.3,NO.4 |
2 | ||
| 90099-33080 |
ST18# *H,L=190,NO.3 & NO.4 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
ST18# NO.2 |
1 | ||
| 90446-07001 |
ST18# *H,L=440,NO.2 |
1 | ||
| 90099-33299 |
ST18# 長さ=1000,NO.1 |
1 | ||
| 90099-33080 |
ST18# L=1450,NO.3,NO.4 |
1 | ||
| 90099-33080 |
ST18# L=1450,NO.3,NO.4 |
2 | ||
| 90099-33080 |
ST18# *H,L=190,NO.3 & NO.4 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ST18# L=1450,左側,右側 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ST18# L=1450,左側,右側 |
1 | ||
| Common parts | ||||
| 85361-20600 | ||||
| 90469-07002 | ||||
