ST182-ATPVF (1989)

Toyota Corona Exiv

Production Sep 1989 - Sep 1993
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )ST182,183 ; (8909- )ST180,181..FE

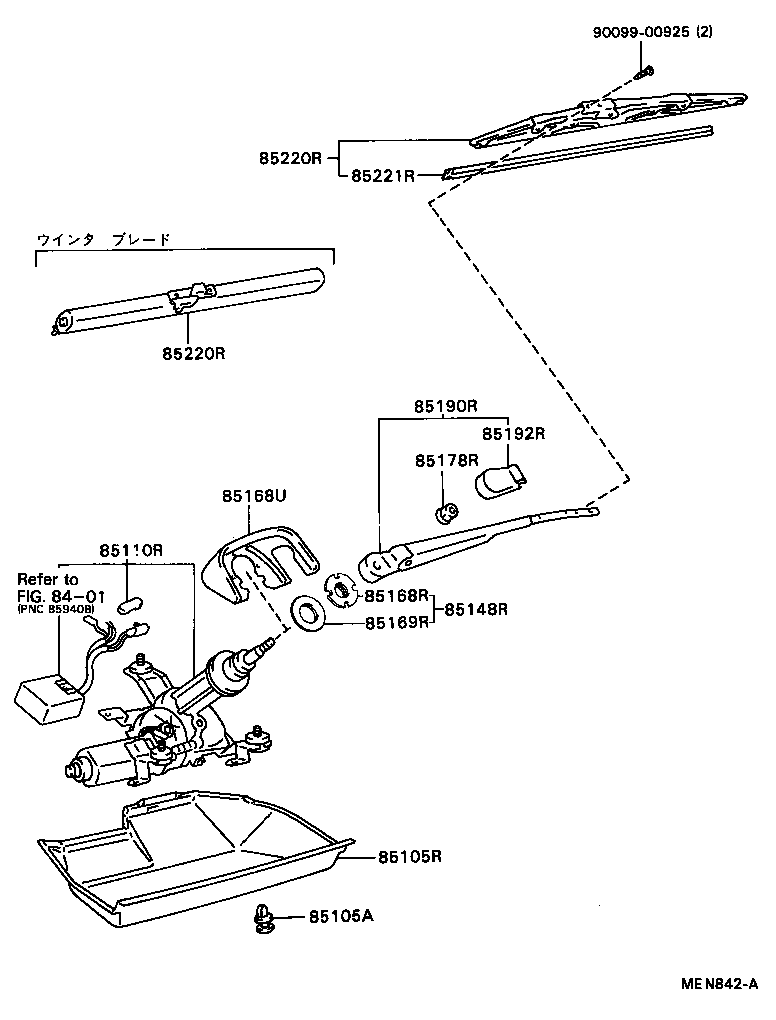

Click highlighted areas on diagram

diagram 8401 85105A 85105R 85110R 85148R 85168R 85168U 85169R 85178R 85190R 85192R 85220R 85220R 85221R 9009900925
Part # Description Qty Price
85105A - CLIP, REAR WIPER PROTECTOR
90467-0705903

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 2
90467-0705922

ST182,183;ST180,181..FE

BLACK,TRIM1#,3#,4#

 2
85105R - PROTECTOR, REAR WIPER
85105-20020C0

ST182,183;ST180,181..FE

BLACK,TRIM1#,3#,4#

 1
85105-2002003

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 1
85110R - MOTOR ASSY, REAR WIPER
85110-20690

ST182,183;ST180,181..FE

 1
85148R - NUT, W/WASHER PACKING, REAR WIPER LINK PIVOT
85148-12020

ST182,183;ST180,181..FE

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90179-22013

ST182,183;ST180,181..FE

 1
85168U - COVER, REAR WIPER
85168-2069003

ST182,183;ST180,181..FE

SHADOW,TRIM1#

 1
85168-2069006

ST182,183;ST180,181..FE

SABLE,TRIM4#

 1
85168-2069002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90210-28002

ST182,183;ST180,181..FE

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

ST182,183;ST180,181..FE

 1
85190R - ARM ASSY, REAR WIPER
85190-20790

ST182,183;ST180,181..FE

 1
85192R - COVER, REAR WIPER ARM
85192-13060

ST182,183;ST180,181..FE

 1
85220R - BLADE ASSY, REAR WIPER
85220-1A150

ST182,183;ST180,181..FE

 1
85220-1A090

ST182,183;ST180,181..FE

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 1
85220-1A150

ST182,183;ST180,181..FE

 1
85220R - BLADE ASSY, REAR WIPER
85220-1A150

ST182,183;ST180,181..FE

 1
85220-1A090

ST182,183;ST180,181..FE

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 1
85220-1A150

ST182,183;ST180,181..FE

 1
85221R - BLADE, REAR WIPER
85221-14210

ST182,183;ST180,181..FE

 1
Common parts
90099-00925
Linked diagrams
8401
