ST182-ATPVF (1989)
Toyota Corona Exiv

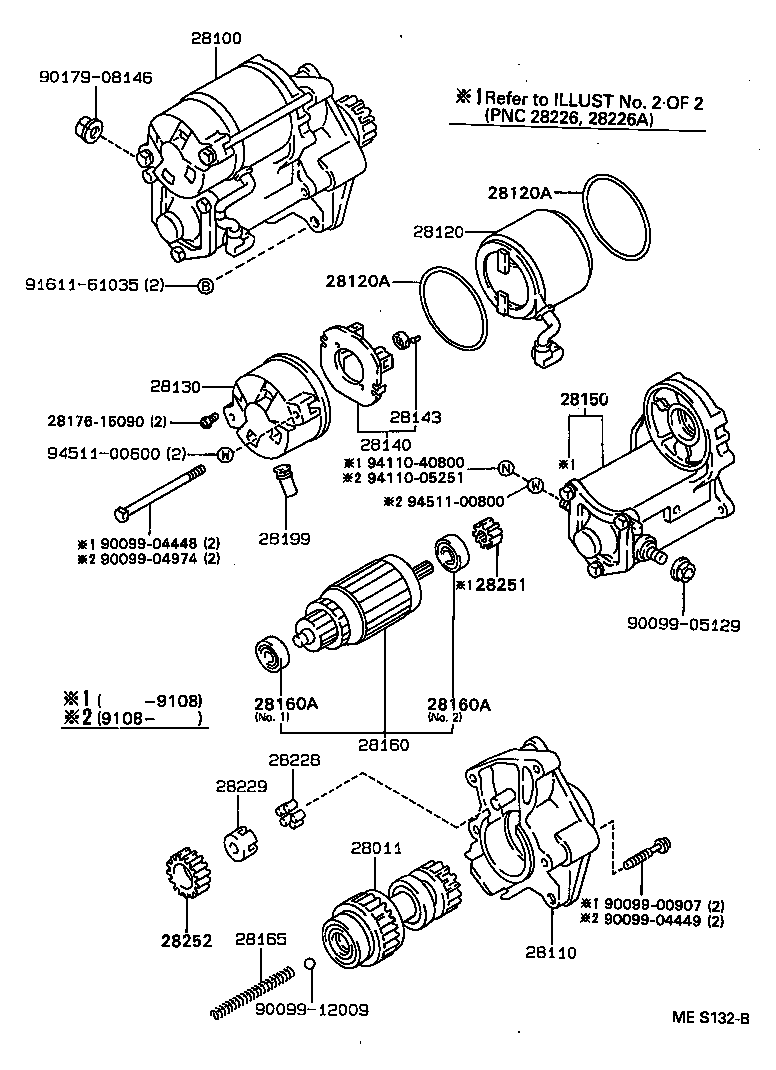

ILLUST NO. 1 OF 2(8909- )3SGE
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-74011 |
3S#,4SF#..ST18# |
1 | ||
| 28011-74070 |
3SGE..ST182,183 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-74021 |
3SGE..ST182,183 12V 1.4KW |
1 | ||
| 28100-74090 |
3SGE..ST182,183 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-74020 |
3SGE..ST182,183 |
1 | ||
| 28110-74090 |
3SGE..ST182,183 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
3SGE..ST182,183 |
1 | ||
| 28120-74070 |
3SGE..ST182,183 |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
3SGE..ST182,183 |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
3SGE..ST182,183 |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-74090 |
3SGE..ST182,183 |
1 | ||
| 28130-74020 |
3SGE..ST182,183 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-74070 |
3SGE..ST182,183 |
1 | ||
| 28140-74020 |
3SGE..ST182,183 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3S#,4SF#..ST18# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-74070 |
3SGE..ST182,183 |
1 | ||
| 28150-74020 |
3SGE..ST182,183 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
3SGE..ST182,183 |
1 | ||
| 28160-15091 |
3SGE..ST182,183 |
1 | ||
| 28160-74070 |
3SGE..ST182,183 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3SGE..ST182,183 NO.2 |
1 | ||
| 90099-10197 |
3SGE..ST182,183 NO.1 |
1 | ||
| 90099-10196 |
3SGE..ST182,183 NO.2 |
1 | ||
| 90099-10144 |
3SGE..ST182,183 NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3SGE..ST182,183 NO.2 |
1 | ||
| 90099-10197 |
3SGE..ST182,183 NO.1 |
1 | ||
| 90099-10196 |
3SGE..ST182,183 NO.2 |
1 | ||
| 90099-10144 |
3SGE..ST182,183 NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-74010 |
3S#,4SF#..ST18# |
1 | ||
| 28165-74070 |
3SGE..ST182,183 |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-15090 |
3SGE..ST182,183 |
1 | ||
| 28199-74110 |
3SGE..ST182,183 |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
3S#,4SF#..ST18# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3S#,4SF#..ST18# |
1 | ||
| 28229-74070 |
3SGE..ST182,183 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
3SGE..ST182,183 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-74070 |
3SGE..ST182,183 |
1 | ||
| 28254-45020 |
3SGE..ST182,183 |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61035 | ||||
| 94110-05251 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||

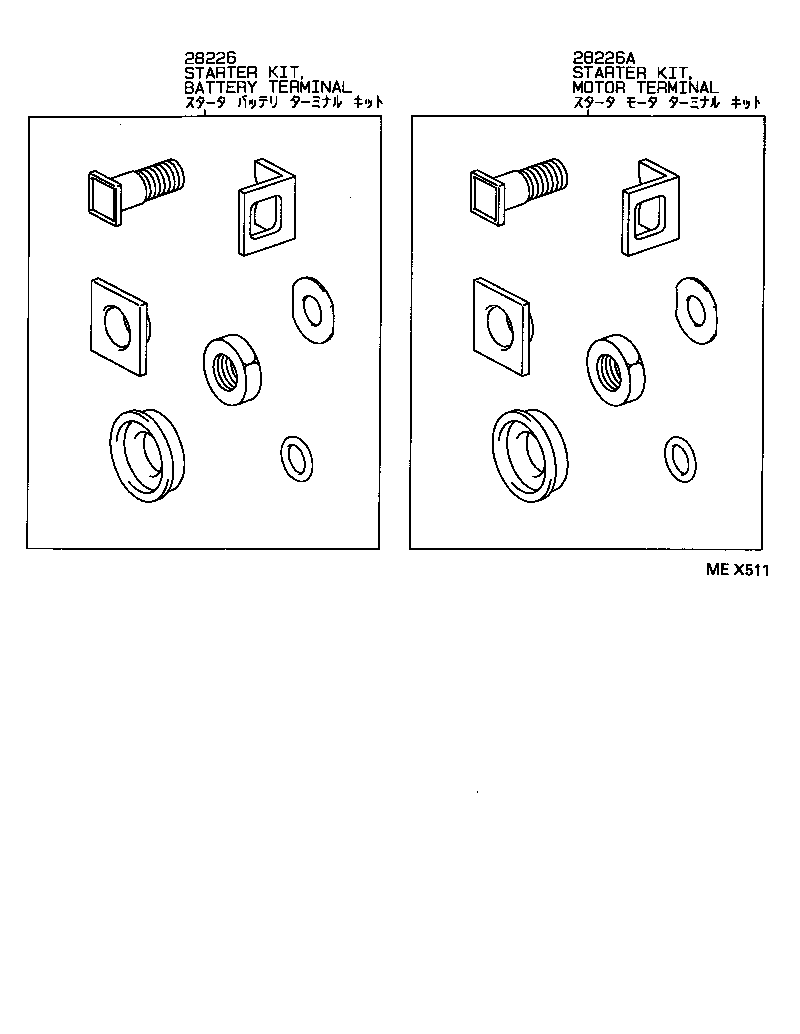

ILLUST NO. 2 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-16130 |
3SGE..ST182,183 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-74070 |
3SGE..ST182,183 |
1 | ||
