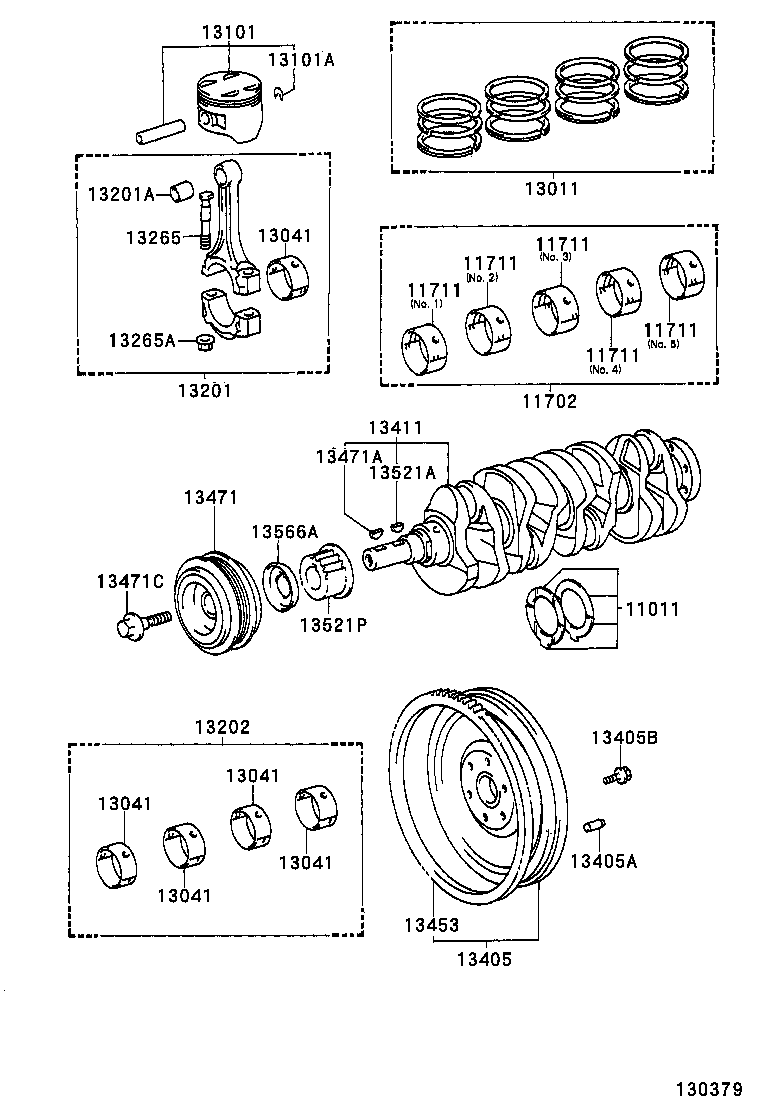

Toyota Corona exiv ST182 CRANKSHAFT & PISTON

Part #	Description	Period	Qty
11011 - WASHER SET, CRANKSHAFT THRUST
11011-25010	3S#,4SF#..ST18# STD	09/1989 - 06/1991	1
11011-74020	3S#,4SFE..ST18# STD	06/1991 - 09/1993	1
11702 - BEARING SET, CRANKSHAFT
11704-88360	3SGE..ST182,183 U/S 0.25	09/1989 - 09/1993	1
11711 - BEARING, CRANKSHAFT
11071-8836001	3SGE..ST182,183 MARK 1,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836004	3SGE..ST182,183 MARK 4,NO.3,DAIDO	09/1989 - 09/1993	1
11701-8836003	3SGE..ST182,183 MARK 3,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836005	3SGE..ST182,183 MARK 5,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836001	3SGE..ST182,183 MARK 1,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11071-8836005	3SGE..ST182,183 MARK 5,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836002	3SGE..ST182,183 MARK 2,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836003	3SGE..ST182,183 MARK 3,NO.3,DAIDO	09/1989 - 09/1993	1
11701-8836004	3SGE..ST182,183 MARK 4,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836002	3SGE..ST182,183 MARK 2,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11711 - BEARING, CRANKSHAFT
11071-8836001	3SGE..ST182,183 MARK 1,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836004	3SGE..ST182,183 MARK 4,NO.3,DAIDO	09/1989 - 09/1993	1
11701-8836003	3SGE..ST182,183 MARK 3,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836005	3SGE..ST182,183 MARK 5,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836001	3SGE..ST182,183 MARK 1,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11071-8836005	3SGE..ST182,183 MARK 5,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836002	3SGE..ST182,183 MARK 2,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836003	3SGE..ST182,183 MARK 3,NO.3,DAIDO	09/1989 - 09/1993	1
11701-8836004	3SGE..ST182,183 MARK 4,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836002	3SGE..ST182,183 MARK 2,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11711 - BEARING, CRANKSHAFT
11071-8836001	3SGE..ST182,183 MARK 1,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836004	3SGE..ST182,183 MARK 4,NO.3,DAIDO	09/1989 - 09/1993	1
11701-8836003	3SGE..ST182,183 MARK 3,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836005	3SGE..ST182,183 MARK 5,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836001	3SGE..ST182,183 MARK 1,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11071-8836005	3SGE..ST182,183 MARK 5,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836002	3SGE..ST182,183 MARK 2,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836003	3SGE..ST182,183 MARK 3,NO.3,DAIDO	09/1989 - 09/1993	1
11701-8836004	3SGE..ST182,183 MARK 4,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836002	3SGE..ST182,183 MARK 2,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11711 - BEARING, CRANKSHAFT
11071-8836001	3SGE..ST182,183 MARK 1,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836004	3SGE..ST182,183 MARK 4,NO.3,DAIDO	09/1989 - 09/1993	1
11701-8836003	3SGE..ST182,183 MARK 3,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836005	3SGE..ST182,183 MARK 5,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836001	3SGE..ST182,183 MARK 1,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11071-8836005	3SGE..ST182,183 MARK 5,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836002	3SGE..ST182,183 MARK 2,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836003	3SGE..ST182,183 MARK 3,NO.3,DAIDO	09/1989 - 09/1993	1
11701-8836004	3SGE..ST182,183 MARK 4,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836002	3SGE..ST182,183 MARK 2,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11711 - BEARING, CRANKSHAFT
11071-8836001	3SGE..ST182,183 MARK 1,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836004	3SGE..ST182,183 MARK 4,NO.3,DAIDO	09/1989 - 09/1993	1
11701-8836003	3SGE..ST182,183 MARK 3,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836005	3SGE..ST182,183 MARK 5,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836001	3SGE..ST182,183 MARK 1,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11071-8836005	3SGE..ST182,183 MARK 5,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836002	3SGE..ST182,183 MARK 2,NO.3,DAIDO	09/1989 - 09/1993	1
11071-8836003	3SGE..ST182,183 MARK 3,NO.3,DAIDO	09/1989 - 09/1993	1
11701-8836004	3SGE..ST182,183 MARK 4,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
11701-8836002	3SGE..ST182,183 MARK 2,NO.1,2,4,5,DAIDO	09/1989 - 09/1993	4
13011 - RING SET, PISTON
13011-88363	3SGE..ST182,183 STD	09/1989 - 09/1993	1
13041 - BEARING, CONNECTING ROD
13041-8836001	3SGE..ST182,183 MARK 1	09/1989 - 09/1993	4
13041-8836002	3SGE..ST182,183 MARK 2	09/1989 - 09/1993	4
13041-8836003	3SGE..ST182,183 MARK 3	09/1989 - 09/1993	4
13041 - BEARING, CONNECTING ROD
13041-8836001	3SGE..ST182,183 MARK 1	09/1989 - 09/1993	4
13041-8836002	3SGE..ST182,183 MARK 2	09/1989 - 09/1993	4
13041-8836003	3SGE..ST182,183 MARK 3	09/1989 - 09/1993	4
13041 - BEARING, CONNECTING ROD
13041-8836001	3SGE..ST182,183 MARK 1	09/1989 - 09/1993	4
13041-8836002	3SGE..ST182,183 MARK 2	09/1989 - 09/1993	4
13041-8836003	3SGE..ST182,183 MARK 3	09/1989 - 09/1993	4
13041 - BEARING, CONNECTING ROD
13041-8836001	3SGE..ST182,183 MARK 1	09/1989 - 09/1993	4
13041-8836002	3SGE..ST182,183 MARK 2	09/1989 - 09/1993	4
13041-8836003	3SGE..ST182,183 MARK 3	09/1989 - 09/1993	4
13041 - BEARING, CONNECTING ROD
13041-8836001	3SGE..ST182,183 MARK 1	09/1989 - 09/1993	4
13041-8836002	3SGE..ST182,183 MARK 2	09/1989 - 09/1993	4
13041-8836003	3SGE..ST182,183 MARK 3	09/1989 - 09/1993	4
13101 - PISTON SUB-ASSY, W/PIN
13101-7409002	3SGE..ST182,183 STD,MARK 2	09/1989 - 09/1993	4
13101-7409001	3SGE..ST182,183 STD,MARK 1	09/1989 - 09/1993	4
13101-7409003	3SGE..ST182,183 STD,MARK 3	09/1989 - 09/1993	4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-25004	3SGE..ST182,183	09/1989 - 08/1991	8
90521-25004	3S#..ST182,183	08/1991 - 09/1993	8
13201 - ROD SUB-ASSY, CONNECTING
13201-79096	3SGE..ST182,183	08/1991 - 09/1991	4
13201-79096	3SGE..ST182,183	09/1989 - 08/1991	4
13201-79096	3SGE..ST182,183	09/1991 - 09/1993	4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73112	3S#..ST182,183	08/1990 - 09/1993	4
90999-73112	3SGE..ST182,183	09/1989 - 08/1990	4
13202 - BEARING SET, CONNECTING ROD
13204-88360	3SGE..ST182,183 U/S 0.25	09/1989 - 09/1993	1
13265 - BOLT, CONNECTING ROD
13265-74010	3SGE..ST182,183	09/1989 - 09/1993	8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-10107	3SGE..ST182,183	09/1989 - 09/1993	8
13411 - CRANKSHAFT
13411-74903	3SGE..ST182,183	09/1989 - 09/1993	1
13471 - PULLEY, CRANKSHAFT
13407-74020	3SGE..ST182,183	09/1989 - 09/1993	1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05005	3S#,4SFE..ST18#	10/1991 - 09/1993	1
95161-20519	3S#,4SF#..ST18#	09/1989 - 10/1991	1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14011	3SGE..ST182,183	09/1989 - 09/1993	1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-20519	3S#,4SF#..ST18#	09/1989 - 10/1991	1
90280-05005	3S#,4SFE..ST18#	10/1991 - 09/1993	1
13521P - PULLEY, CRANKSHAFT TIMING
13521-88360	3SGE..ST182,183	09/1989 - 09/1993	1
13566A - GUIDE, TIMING BELT
13566-88360	3SGE..ST182,183	09/1989 - 09/1993	1

ST182-ATPVF (1989)

(8909- )3SGE
