ST182-ATMVF (1989)

Toyota Corona Exiv

Production Sep 1989 - Sep 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

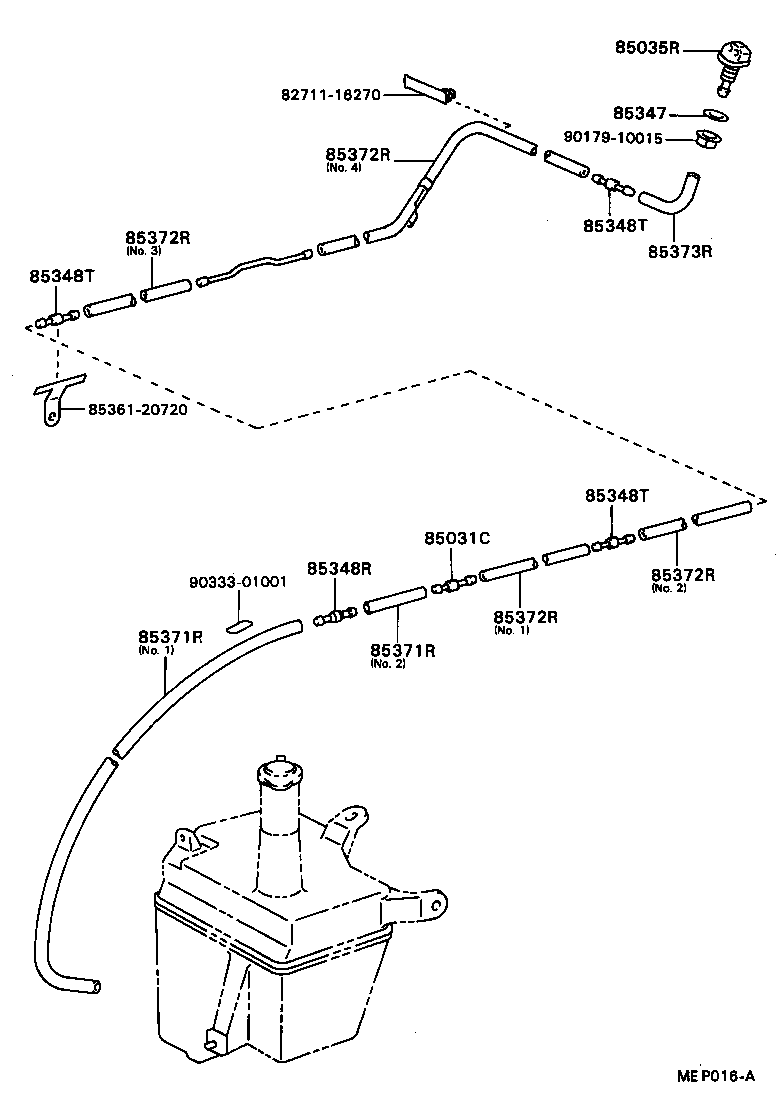

Click highlighted areas on diagram

diagram 8271116270 85031C 85035R 85347 85348R 85348T 85348T 85348T 8536120720 85371R 85371R 85372R 85372R 85372R 85372R 85373R 9017910015 9033301001
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-12250

ST182,183;ST180,181..FE

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85035-20380

ST182,183;ST180,181..FE

 1
85347 - PACKING, REAR WASHER
85347-12010

ST182,183;ST180,181..FE

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ST182,183;ST180,181..FE

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ST182,183;ST180,181..FE

 1
85349-89122

ST182,183;ST180,181..FE

 3
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ST182,183;ST180,181..FE

 1
85349-89122

ST182,183;ST180,181..FE

 3
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ST182,183;ST180,181..FE

 1
85349-89122

ST182,183;ST180,181..FE

 3
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

ST182,183;ST180,181..FE

*H,L=650,NO.1

 1
90099-33299

ST182,183;ST180,181..FE

長さ=1000,NO.2

 1
90446-07001

ST182,183;ST180,181..FE

NO.1

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

ST182,183;ST180,181..FE

*H,L=650,NO.1

 1
90099-33299

ST182,183;ST180,181..FE

長さ=1000,NO.2

 1
90446-07001

ST182,183;ST180,181..FE

NO.1

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-07001

ST182,183;ST180,181..FE

NO.1,NO.3,NO.4,NO.2

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-07001

ST182,183;ST180,181..FE

NO.1,NO.3,NO.4,NO.2

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-07001

ST182,183;ST180,181..FE

NO.1,NO.3,NO.4,NO.2

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-07001

ST182,183;ST180,181..FE

NO.1,NO.3,NO.4,NO.2

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

ST182,183;ST180,181..FE

長さ=1000

 1
Common parts
82711-16270
85361-20720
90179-10015
90333-01001
