ST182-ATMSK (1989)

Toyota Corona Exiv

Production Sep 1989 - Sep 1993
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

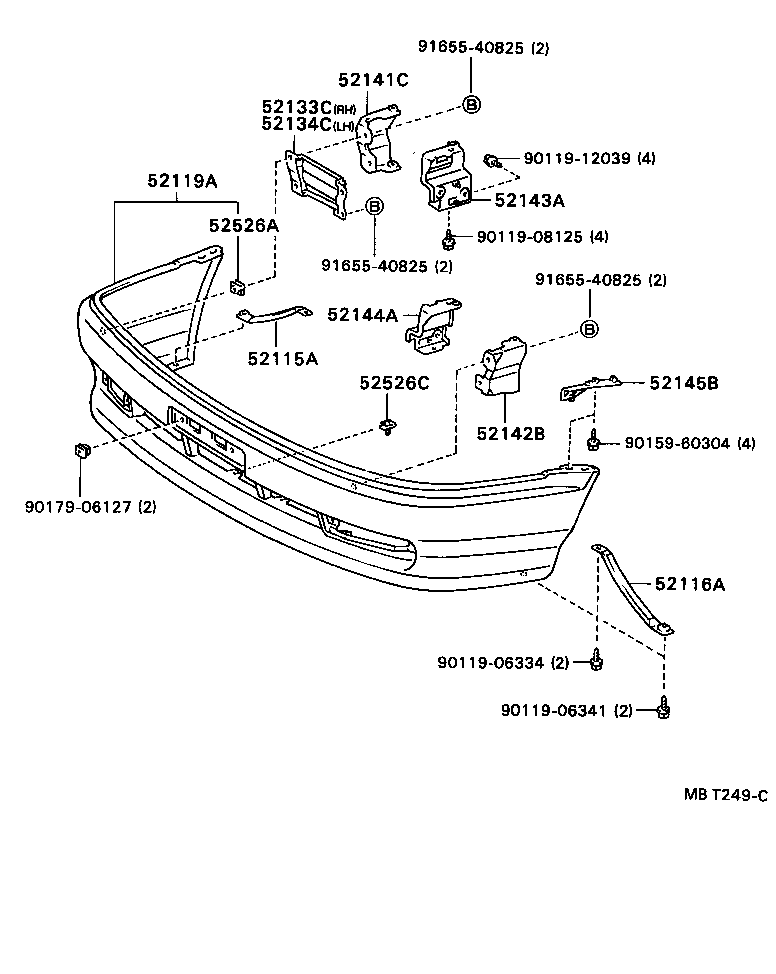

Click highlighted areas on diagram

diagram 52115A 52116A 52119A 52133C 52134C 52141C 52142B 52143A 52144A 52145B 52526A 52526C 9011906334 9011906341 9011908125 9011912039 9015960304 9017906127 9165540825 9165540825 9165540825
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20280

ST18#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-20280

ST18#

 1
52119A - COVER, FRONT BUMPER
52101-2003008

ST18#

SUPER WHITE 2,040

 1
52101-2003003

ST18#

BLUISH GRAY M,182

 1
52101-2003004

ST18#

DARK BLUE M M,8G5

 1
52101-2003002

ST18#

RED MICA,3H4

 1
52101-2003017

ST18#

BLACKISH KHAKI M,6K8

 1
52101-20050H0

ST18#

MEDIUM TURQUOISEM0,749

 1
52101-20050G2

ST18#

BLACKISH KHAKI M,6K8

 1
52101-20050G1

ST18#

BLACKISH KHAKI M,6K8

 1
52101-20050B1

ST180,182..FE

DARK BLUISH GRAY MC,191

 1
52101-2003012

ST18#

MAUVE G M,3J3

 1
52101-20050A0

ST18#

SUPER WHITE 2,040

 1
52101-20050G0

ST18#

DARK MOSSGREEN M.M,6M4

 1
52101-2003007

ST18#

LIGHT KHAKI G M M,6K7

 1
52101-20050D0

ST18#

DARK WINE M.M,3K1

 1
52101-20050B0

ST18#

BLUISH GLAY,182

 1
52133C - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-20080

ST18#

 1
52134C - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-20060

ST18#

 1
52141C - ARM, FRONT BUMPER, RH
52141-20170

ST18#

 1
52142B - ARM, FRONT BUMPER, LH
52142-20130

ST18#

 1
52143A - ARM, FRONT BUMPER, INNER RH
52143-20220

ST18#

 1
52144A - ARM, FRONT BUMPER, INNER LH
52144-20180

ST18#

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52146-20090

ST18#

左側

 1
52145-20100

ST18#

右側

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

ST18#

 8
52526C - RETAINER, FRONT BUMPER, LOWER
52526-20080

ST18#

 5
Common parts
90119-06334
90119-06341
90119-08125
90119-12039
90159-60304
90179-06127
91655-40825
