ST182-ATMGK (1989)
Toyota Corona Exiv

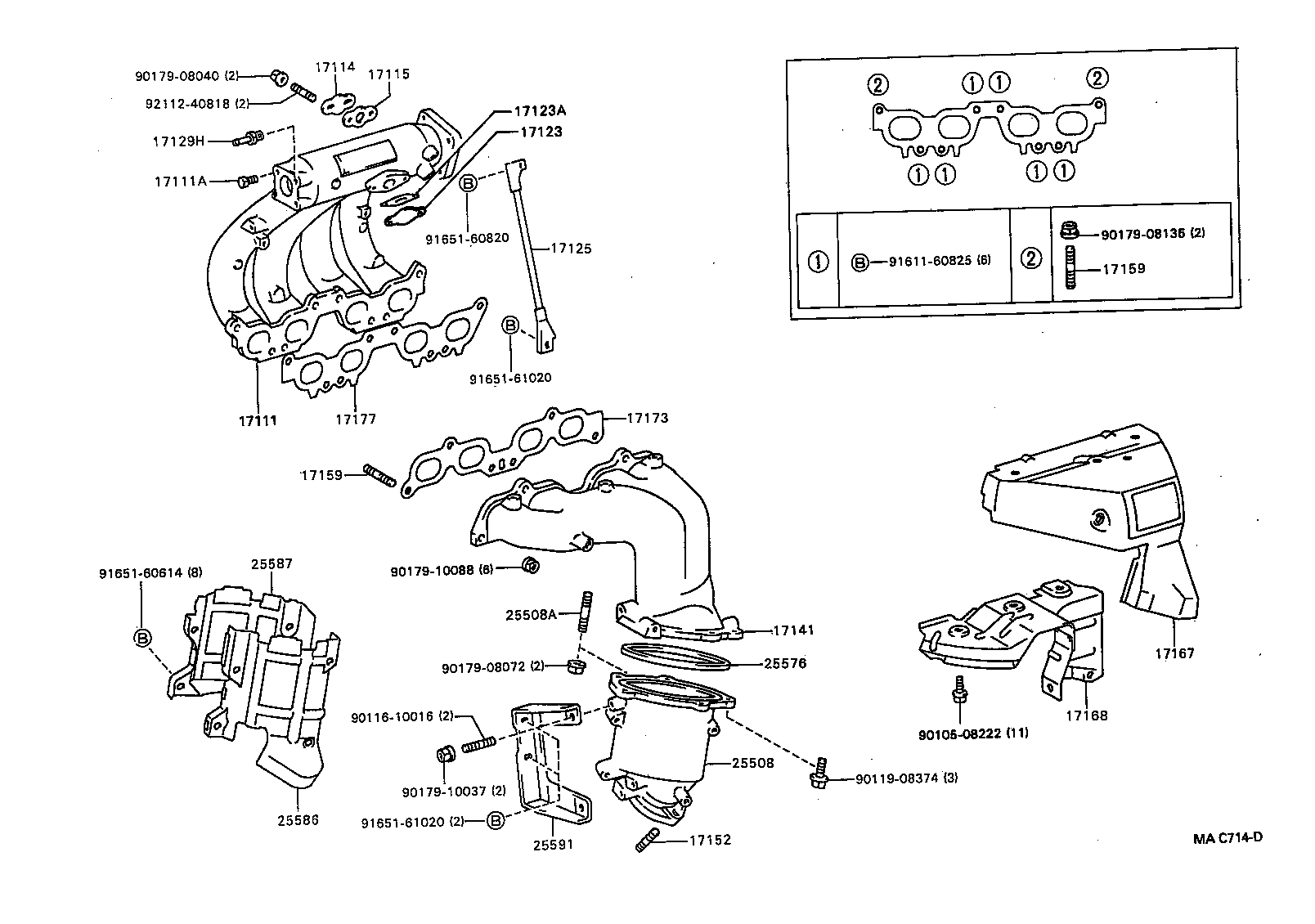

(8909-9008)3SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-74071 |
3SFE..ST182,183 W(PNC 17123,17123A) |
1 | ||
| 17101-74071 |
3SFE..ST182,183 |
1 | ||
| 17101-74150 |
3SFE..ST182,183 |
1 | ||
| 17101-74170 |
3SFE..ST182,183 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90345-51006 |
3SFE,4SFE..ST18# |
1 | ||
| 17114 - PLATE, INTAKE MANIFOLD HOLE COVER | ||||
| 25617-74020 |
3SFE..ST182,183 |
1 | ||
| 17115 - GASKET, INTAKE MANIFOLD HOLE COVER | ||||
| 25627-74011 |
3SFE..ST182,183 |
1 | ||
| 17123 - COVER, SURGE TANK | ||||
| 17123-74010 |
3SFE..ST182,183 |
1 | ||
| 17123A - GASKET(FOR SURGE TANK COVER) | ||||
| 23293-62020 |
3SFE..ST182,183 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-74060 |
3SFE..ST182,183 |
1 | ||
| 17125-88361 |
3SFE..ST182,183 |
1 | ||
| 17129H - UNION, NO.4 | ||||
| 90404-51026 |
3SFE,4SFE..ST18# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-74120 |
3SFE..ST182,183 |
1 | ||
| 17141-74031 |
3SFE..ST182,183 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
3S#,4SF#..ST18# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-60822 |
3SFE,4SF#..ST18# INTAKE MANIFOLD |
2 | ||
| 90116-10063 |
3S#,4SF#..ST18# EXHAUST MANIFOLD |
6 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-60822 |
3SFE,4SF#..ST18# INTAKE MANIFOLD |
2 | ||
| 90116-10063 |
3S#,4SF#..ST18# EXHAUST MANIFOLD |
6 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-74140 |
3SFE,4SFI..ST18# |
1 | ||
| 17167-74170 |
3SFE..ST182,183 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-74020 |
3SFE,4SFI..ST18# |
1 | ||
| 17168-74060 |
3SFE..ST182,183 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-74040 |
3S#,4SF#..ST18# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-74041 |
3SFE,4SFI..ST18# |
1 | ||
| 17177-74070 |
3SFE,4SFE..ST18# |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25508-74010 |
3SFE..ST182,183 |
1 | ||
| 25508A - BOLT, STUD(FOR MANIFOLD CONVERTER) | ||||
| 90116-08171 |
3SFE,4SFI..ST18# |
2 | ||
| 25576 - GASKET, MANIFOLD CONVERTER | ||||
| 25576-74020 |
3SFE..ST182,183 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-74011 |
3SFE..ST182,183 |
1 | ||
| 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 | ||||
| 25587-74011 |
3SFE..ST182,183 |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-74010 |
3SFE..ST182,183 |
1 | ||
| 25591-74011 |
3SFE..ST182,183 |
1 | ||
| Common parts | ||||
| 90105-08222 | ||||
| 90116-10016 | ||||
| 90119-08374 | ||||
| 90179-08040 | ||||
| 90179-08072 | ||||
| 90179-08135 | ||||
| 90179-10037 | ||||
| 90179-10088 | ||||
| 91611-60825 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 91651-61020 | ||||
| 92112-40818 | ||||

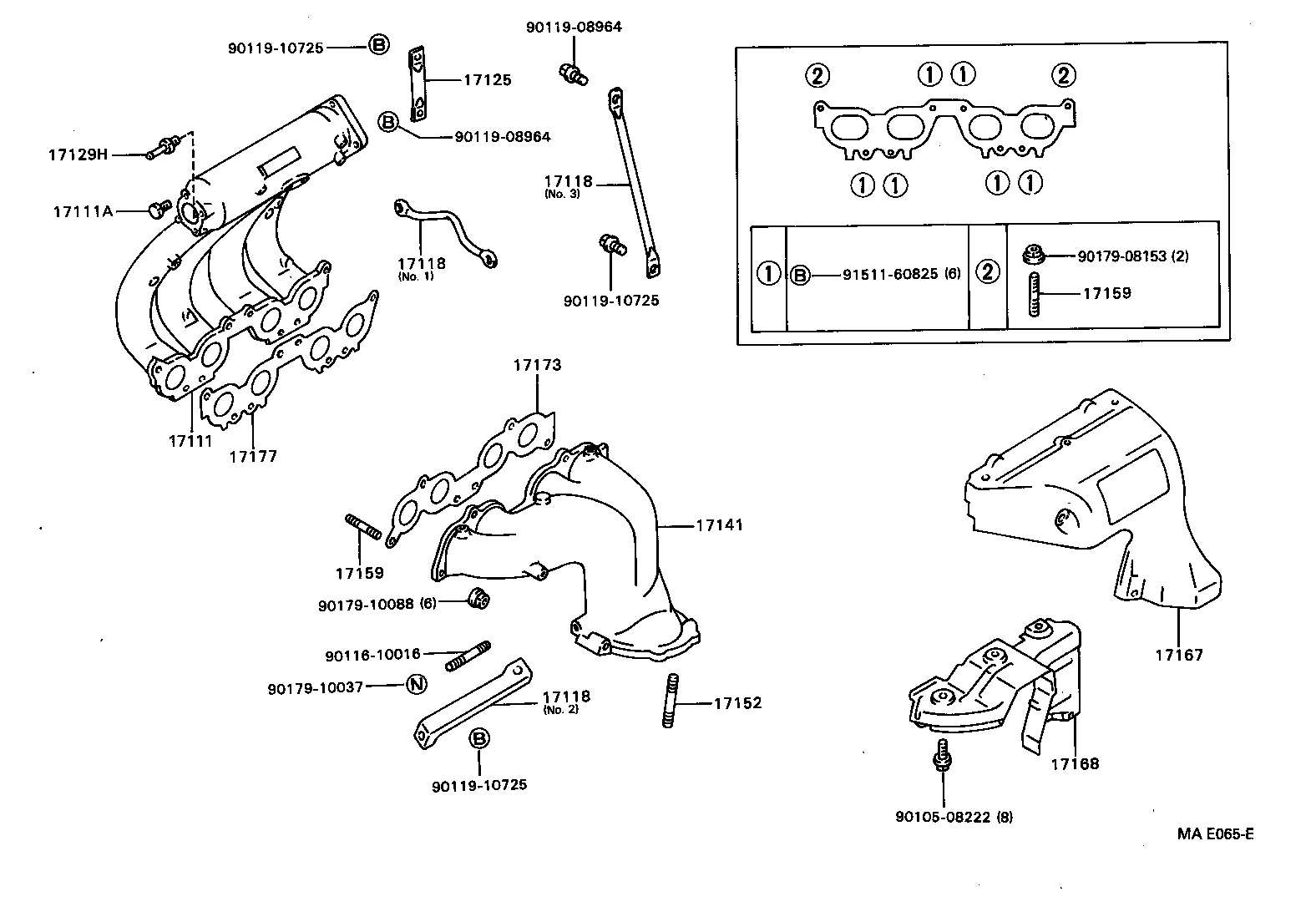

(9008- )3SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-74071 |
3SFE..ST182,183 W(PNC 17123,17123A) |
1 | ||
| 17101-74071 |
3SFE..ST182,183 |
1 | ||
| 17101-74150 |
3SFE..ST182,183 |
1 | ||
| 17101-74170 |
3SFE..ST182,183 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90345-51006 |
3SFE,4SFE..ST18# |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-74040 |
3SFE..ST182,183 NO.2 |
1 | ||
| 17118-74150 |
3SFE,4SFE..ST18# NO.1 |
1 | ||
| 17118-74200 |
3SFE..ST182,183 NO.3 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-74040 |
3SFE..ST182,183 NO.2 |
1 | ||
| 17118-74150 |
3SFE,4SFE..ST18# NO.1 |
1 | ||
| 17118-74200 |
3SFE..ST182,183 NO.3 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-74040 |
3SFE..ST182,183 NO.2 |
1 | ||
| 17118-74150 |
3SFE,4SFE..ST18# NO.1 |
1 | ||
| 17118-74200 |
3SFE..ST182,183 NO.3 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-74060 |
3SFE..ST182,183 |
1 | ||
| 17125-88361 |
3SFE..ST182,183 |
1 | ||
| 17129H - UNION, NO.4 | ||||
| 90404-51026 |
3SFE,4SFE..ST18# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-74120 |
3SFE..ST182,183 |
1 | ||
| 17141-74031 |
3SFE..ST182,183 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
3S#,4SF#..ST18# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-60822 |
3SFE,4SF#..ST18# INTAKE MANIFOLD |
2 | ||
| 90116-10063 |
3S#,4SF#..ST18# EXHAUST MANIFOLD |
6 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-60822 |
3SFE,4SF#..ST18# INTAKE MANIFOLD |
2 | ||
| 90116-10063 |
3S#,4SF#..ST18# EXHAUST MANIFOLD |
6 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-74140 |
3SFE,4SFI..ST18# |
1 | ||
| 17167-74170 |
3SFE..ST182,183 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-74020 |
3SFE,4SFI..ST18# |
1 | ||
| 17168-74060 |
3SFE..ST182,183 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-74040 |
3S#,4SF#..ST18# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-74041 |
3SFE,4SFI..ST18# |
1 | ||
| 17177-74070 |
3SFE,4SFE..ST18# |
1 | ||
| Common parts | ||||
| 90105-08222 | ||||
| 90116-10016 | ||||
| 90119-08964 | ||||
| 90119-10725 | ||||
| 90179-08153 | ||||
| 90179-10037 | ||||
| 90179-10088 | ||||
| 91511-60825 | ||||
