ST181-ATPSM (1989)
Toyota Corona Exiv

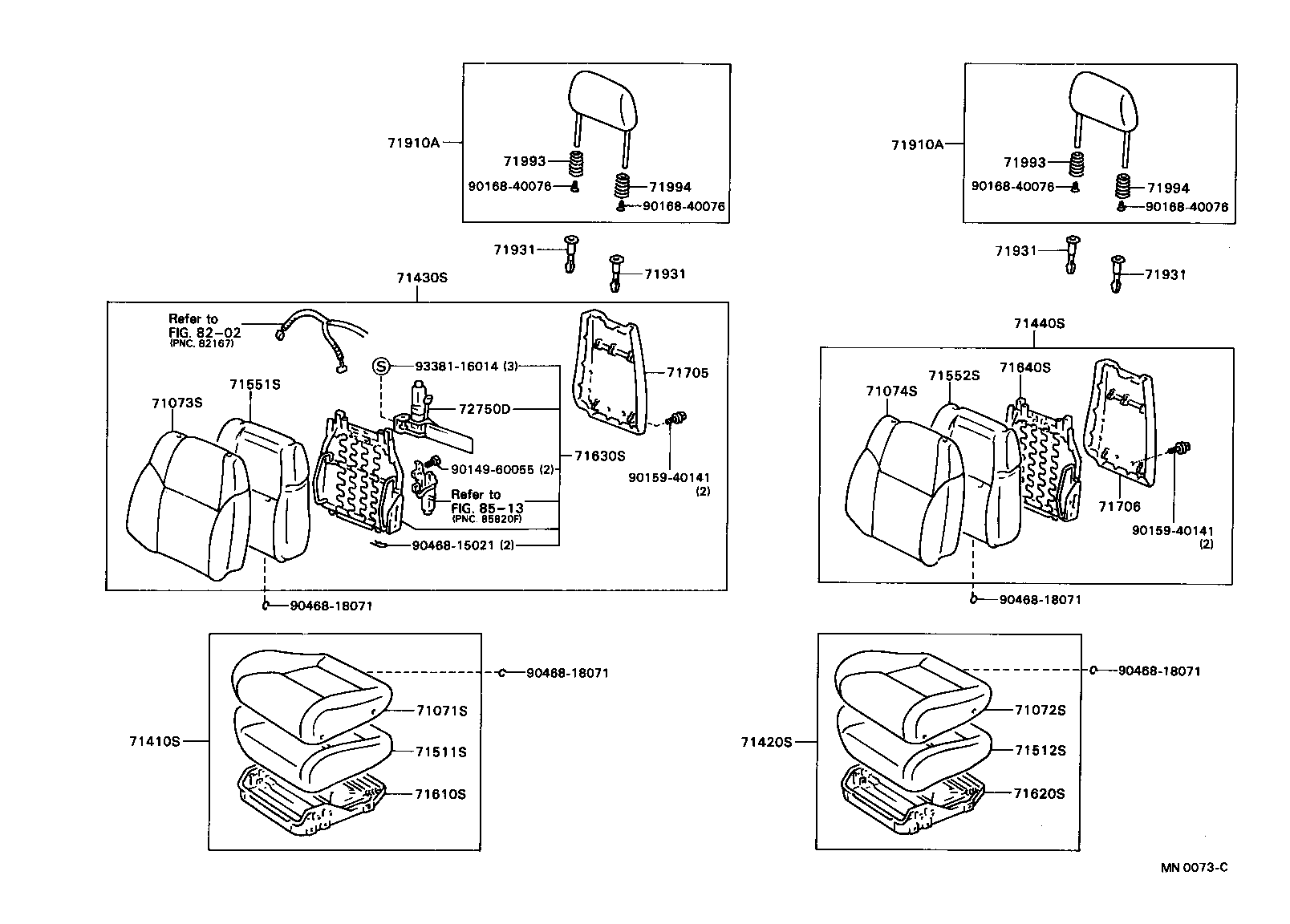

ILLUST NO. 1 OF 2(8909- )TR,TRG ; (9011- )ST182..FE
(9011-9012)FEﾘﾐﾃﾂﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2D76006 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71071-2D76003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D32006 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71072-2D32003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2D66003 |
ST18#..TR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D66006 |
ST18#..TR SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2D36003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D36006 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2G12006 |
ST18#..TR,TRG ***,SABLE,TRIM4# |
1 | ||
| 71410-2G12003 |
ST18#..TR,TRG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2D54006 |
ST18#..TR,TRG ***,SABLE,TRIM4# |
1 | ||
| 71420-2D54003 |
ST18#..TR,TRG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2G01006 |
ST18#..TR ***,SABLE,TRIM4# |
1 | ||
| 71430-2G01003 |
ST18#..TR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2D61003 |
ST18#..TR,TRG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2D61006 |
ST18#..TR,TRG ***,SABLE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20590 |
ST18#..TR,TRG |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20590 |
ST18#..TR,TRG |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20420 |
ST18#..TR,TRG |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20420 |
ST18#..TR,TRG |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20460 |
ST18# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20470 |
ST18# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20620 |
ST18#..TR |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-20620 |
ST18#..TR,TRG |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2012006 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71705-2012003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2012006 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71705-2012003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B43003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B43006 |
ST18#..TR,TRG SABLE,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B43003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B43006 |
ST18#..TR,TRG SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011016 |
ST18#..TR,TRG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2011003 |
ST18#..TR,TRG ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST18#..TR,TRG ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006016 |
ST18#..TR,TRG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011016 |
ST18#..TR,TRG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2011003 |
ST18#..TR,TRG ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST18#..TR,TRG ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006016 |
ST18#..TR,TRG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011016 |
ST18#..TR,TRG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2011003 |
ST18#..TR,TRG ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST18#..TR,TRG ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006016 |
ST18#..TR,TRG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011016 |
ST18#..TR,TRG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2011003 |
ST18#..TR,TRG ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST18#..TR,TRG ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006016 |
ST18#..TR,TRG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71993 - BOOT, HEADREST STAY, RH | ||||
| 71993-2002006 |
ST18#..TR,TRG SABLE,TRIM4# |
2 | ||
| 71993-2002003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
2 | ||
| 71993 - BOOT, HEADREST STAY, RH | ||||
| 71993-2002006 |
ST18#..TR,TRG SABLE,TRIM4# |
2 | ||
| 71993-2002003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
2 | ||
| 71994 - BOOT, HEADREST STAY, LH | ||||
| 71994-2002003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
2 | ||
| 71994-2002006 |
ST18#..TR,TRG SABLE,TRIM4# |
2 | ||
| 71994 - BOOT, HEADREST STAY, LH | ||||
| 71994-2002003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
2 | ||
| 71994-2002006 |
ST18#..TR,TRG SABLE,TRIM4# |
2 | ||
| Common parts | ||||
| 90149-60055 | ||||
| 90159-40141 | ||||
| 90168-40076 | ||||
| 90468-15021 | ||||
| 90468-18071 | ||||
| 93381-16014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8513 | ||||

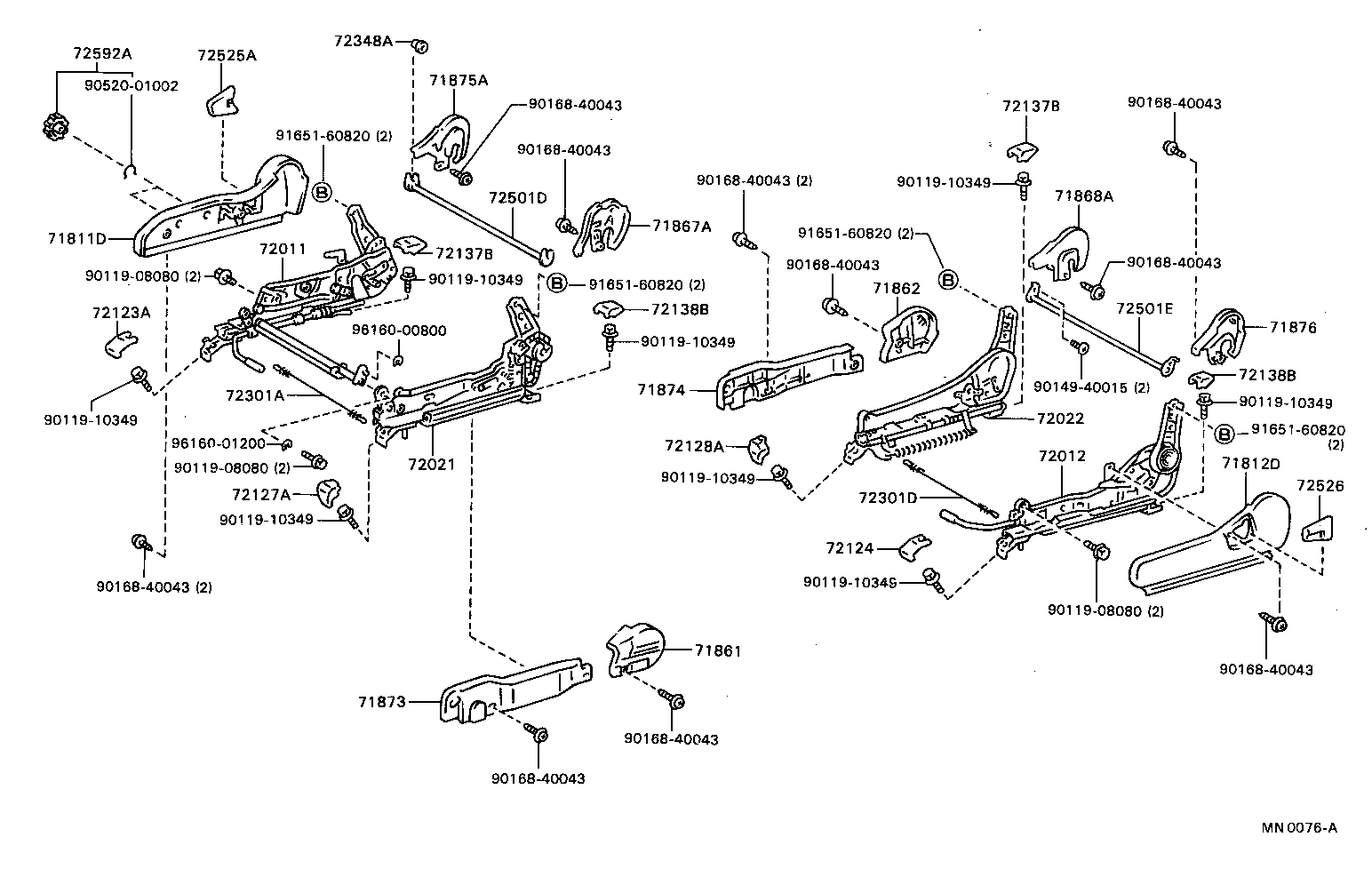

ILLUST NO. 2 OF 2(8909- )TR,TRG ; (9011- )ST182..FE
(9011-9012)FEﾘﾐﾃﾂﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2021003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71811-2021006 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2018003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71812-2018016 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2010006 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71861-2010003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2009016 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71862-2009003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-2002006 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71867-2002003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-2001003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71868-2001016 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-20030 |
ST18# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-20030 |
ST18# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-2003003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71875-2003006 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-2002003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 71876-2002016 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20160 |
ST18#..TR,TRG |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20200 |
ST18#..TR,TRG |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20120 |
ST18#..TR,TRG |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20160 |
ST18#..TR,TRG |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-2012003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72123-2012016 |
ST18# SABLE,TRIM4# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-2012003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72123-2012016 |
ST18# SABLE,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-2004016 |
ST18# SABLE,TRIM4# |
1 | ||
| 72127-2004003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-2003016 |
ST18# SABLE,TRIM4# |
1 | ||
| 72128-2003003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2005016 |
ST18# SABLE,TRIM4# |
2 | ||
| 72137-2005003 |
ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2005016 |
ST18# SABLE,TRIM4# |
2 | ||
| 72137-2005003 |
ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-2005003 |
ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-2005016 |
ST18# SABLE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-2005003 |
ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-2005016 |
ST18# SABLE,TRIM4# |
2 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-20270 |
ST18# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-20270 |
ST18# |
1 | ||
| 72348A - HOOK, RECLINING CONECTING, NO.2, RH | ||||
| 72348-20010 |
ST18#..TR,TRG |
2 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-20020 |
ST18#..TR,TRG |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-20030 |
ST18#..TR,TRG |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-2012003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 72525-2012006 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-2009003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2009016 |
ST18#..TR,TRG SABLE,TRIM4# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-2004016 |
ST18#..TR,TRG SABLE,TRIM4# |
2 | ||
| 72592-2004003 |
ST18#..TR,TRG SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90149-40015 | ||||
| 90168-40043 | ||||
| 90520-01002 | ||||
| 91651-60820 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
