ST181-ATPSM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )ATM

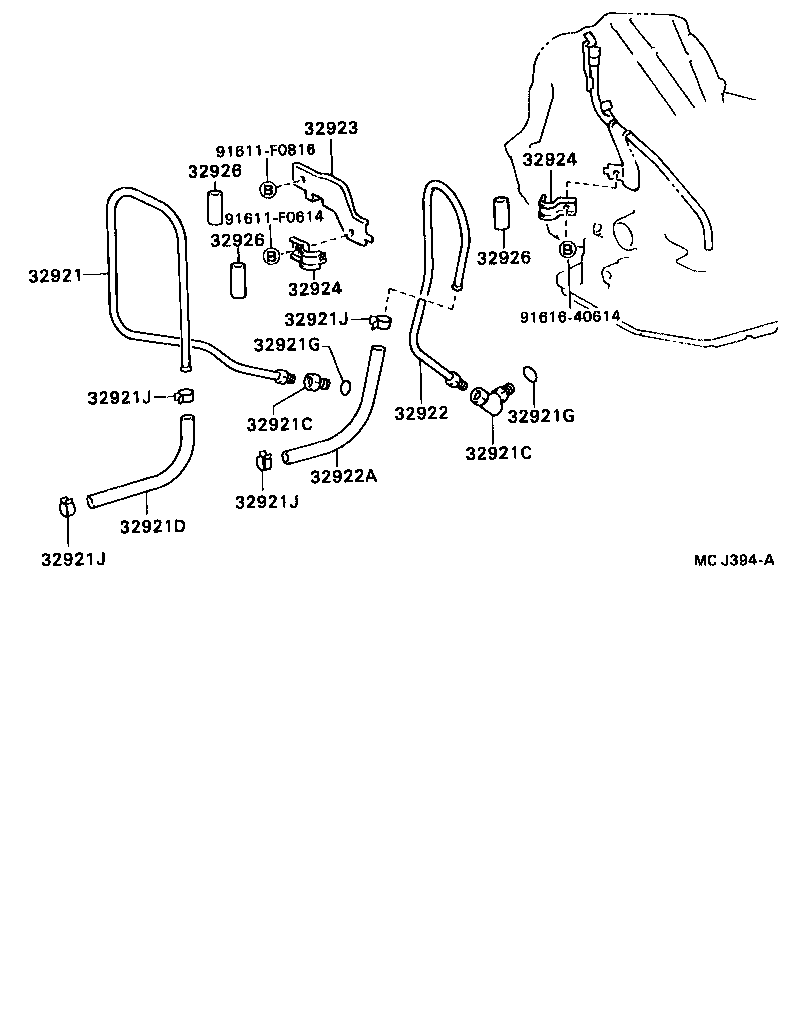

Click highlighted areas on diagram

A140L,A140E

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32923 32924 32924 32926 32926 32926 91611F0614 91611F0816 9161640614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-20290

ST18#..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

ST18#..ATM

INLET

 1
32901-32010

ST18#..ATM

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

ST18#..ATM

INLET

 1
32901-32010

ST18#..ATM

OUTLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-16026

ST18#..ATM

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ST18#..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ST18#..ATM

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

ST18#..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

ST18#..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

ST18#..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

ST18#..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-20320

ST18#..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-15030

ST18#..ATM

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-20110

ST18#..ATM

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-20070

ST18#..ATM

 2
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-20070

ST18#..ATM

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

ST18#..ATM

長さ=25,内径=8

 3
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

ST18#..ATM

長さ=25,内径=8

 3
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

ST18#..ATM

長さ=25,内径=8

 3
Common parts
91611-F0614
91611-F0816
91616-40614
