ST181-ATPSM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909-9008)4SFI

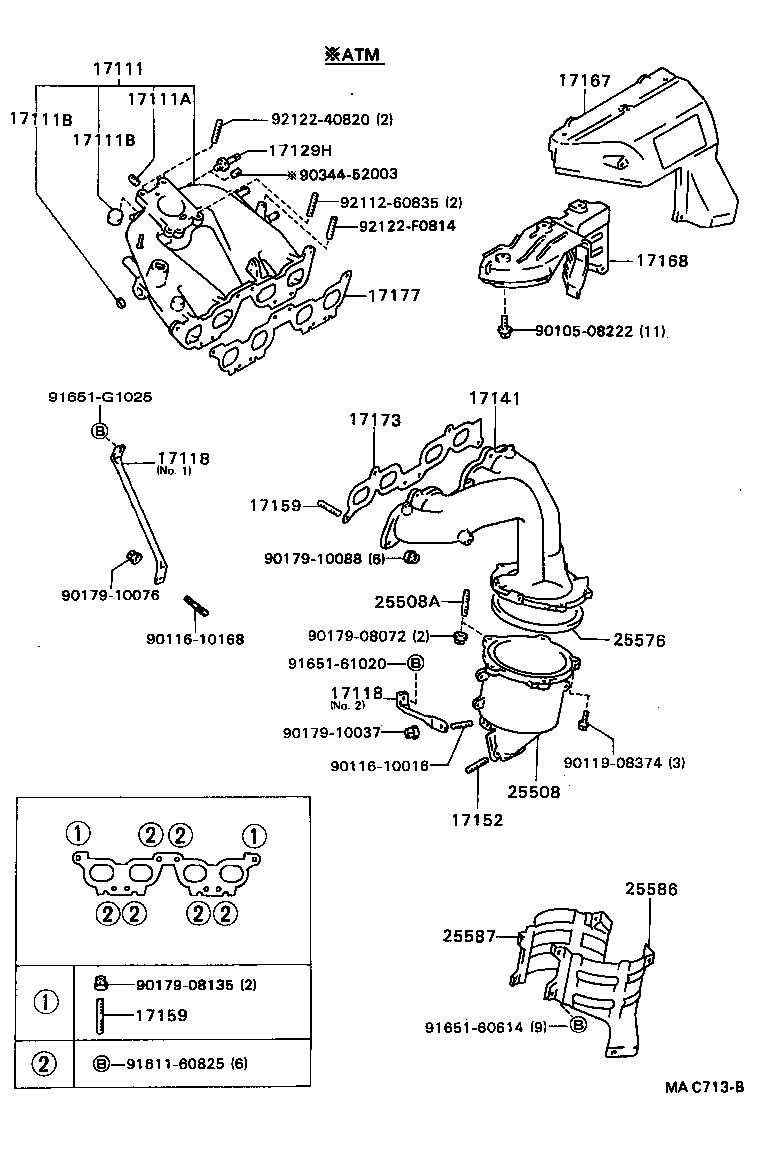

Click highlighted areas on diagram

diagram 17111 17111A 17111B 17111B 17118 17118 17129H 17141 17152 17159 17159 17167 17168 17173 17177 25508 25508A 25576 25586 25587 9010508222 9011610016 9011610168 9011908374 9017908072 9017908135 9017910037 9017910076 9017910088 9034452003 9161160825 9165160614 9165161020 91651G1025 9211260835 9212240820 92122F0814
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74100

4SFI..ST180,181

 1
17111A - PLUG, NO.1
90344-51014

4SFI..ST180,181

 1
17111B - PLUG, NO.2
96411-41800

4SFI..ST180,181

OD=18

 1
96411-43000

4SFI..ST180,181

OD=30

 1
17111B - PLUG, NO.2
96411-41800

4SFI..ST180,181

OD=18

 1
96411-43000

4SFI..ST180,181

OD=30

 1
17118 - STAY, MANIFOLD
17118-74160

4SFI..ST180,181

NO.1

 1
17118-74100

4SF#..ST180,181

NO.2

 1
17118 - STAY, MANIFOLD
17118-74160

4SFI..ST180,181

NO.1

 1
17118-74100

4SF#..ST180,181

NO.2

 1
17141 - MANIFOLD, EXHAUST
17141-74081

4SF#..ST180,181

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

3S#,4SF#..ST18#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60822

3SFE,4SF#..ST18#

INTAKE MANIFOLD

 2
90116-10063

3S#,4SF#..ST18#

EXHAUST MANIFOLD

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60822

3SFE,4SF#..ST18#

INTAKE MANIFOLD

 2
90116-10063

3S#,4SF#..ST18#

EXHAUST MANIFOLD

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74140

3SFE,4SFI..ST18#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74020

3SFE,4SFI..ST18#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74040

3S#,4SF#..ST18#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74041

3SFE,4SFI..ST18#

 1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-74060

4SF#..ST180,181

 1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-08171

3SFE,4SFI..ST18#

 2
25576 - GASKET, MANIFOLD CONVERTER
25576-15010

4SF#..ST180,181

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-74030

4SF#..ST180,181

 1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-74030

4SF#..ST180,181

 1
Common parts
90105-08222
90116-10016
90116-10168
90119-08374
90179-08072
90179-08135
90179-10037
90179-10076
90179-10088
90344-52003
91611-60825
91651-60614
91651-61020
91651-G1025
92112-60835
92122-40820
92122-F0814
