ST181-ATPGM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909-9108)

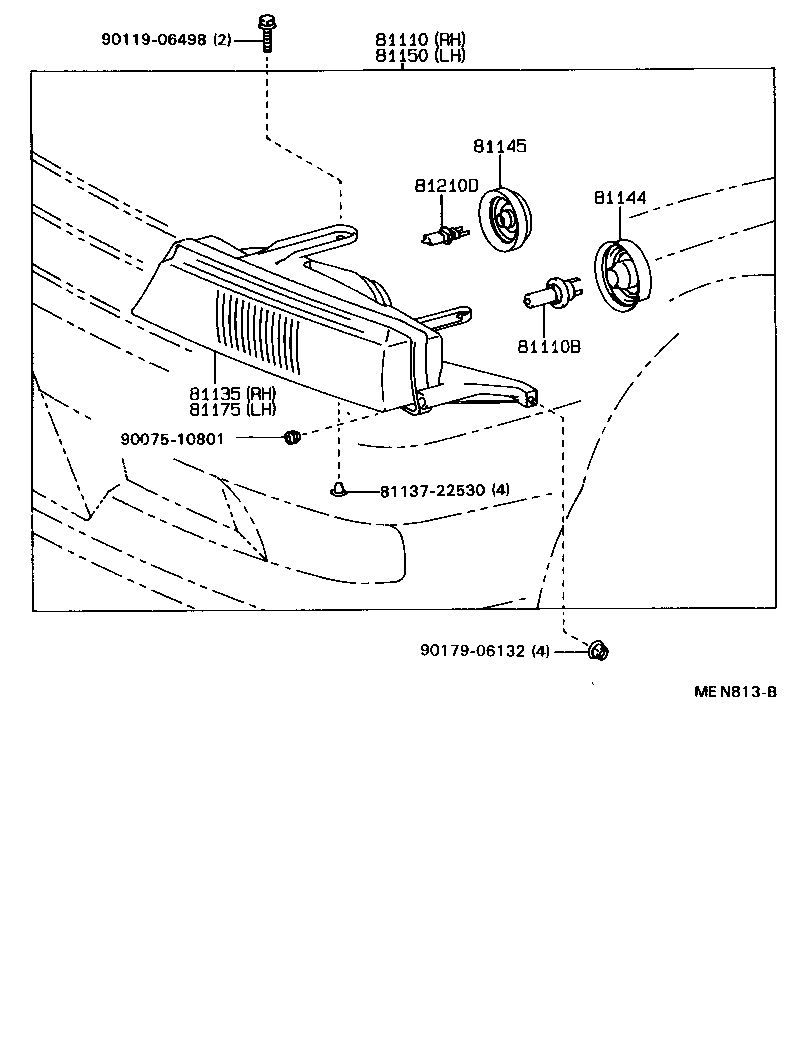

Click highlighted areas on diagram

diagram 81110 81110B 81135 8113722530 81144 81145 81150 81175 81210D 9007510801 9011906498 9017906132
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-2B470

ST18#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

ST18#

12V 60/55W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-2B470

ST18#

 1
81144 - COVER, HEADLAMP, NO.1
90075-99023

ST18#

 2
81145 - COVER, HEADLAMP, NO.2
90075-99024

ST18#

 2
81150 - HEADLAMP ASSY, LH
81150-2B320

ST18#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-2B320

ST18#

 1
81210D - BULB, FOG LAMP
90981-13027

ST18#

12V 55W,ﾊﾛｹﾞﾝ

 2
Common parts
81137-22530
90075-10801
90119-06498
90179-06132
