ST181-ATPGM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909-9108)

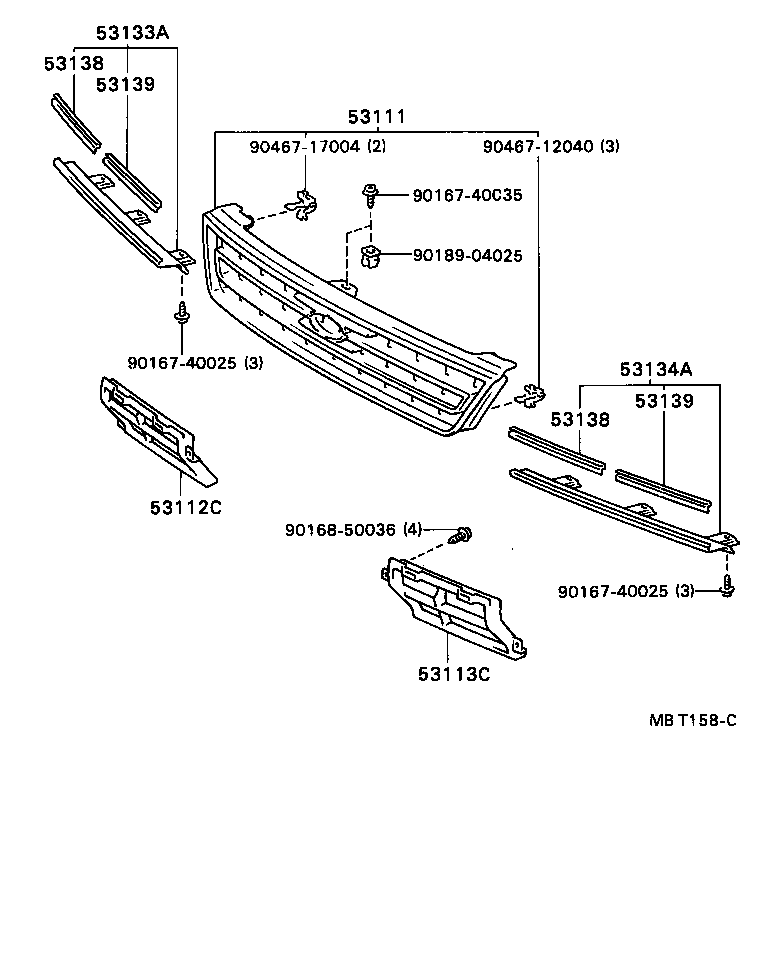

Click highlighted areas on diagram

diagram 53111 53112C 53113C 53133A 53134A 53138 53138 53139 53139 9016740025 9016740025 9016740C35 9016850036 9018904025 9046712040 9046717004
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-20380

ST18#

 1
53112C - GRILLE, RADIATOR, LOWER RH
53112-20150

ST18#

 1
53113C - GRILLE, RADIATOR, LOWER LH
53113-20090

ST18#

 1
53133A - DOOR, HEADLAMP, LOWER RH
53133-20070

ST18#

 1
53134A - DOOR, HEADLAMP, LOWER LH
53134-20040

ST18#

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53139-20060

ST18#

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53139-20060

ST18#

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-20060

ST18#

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-20060

ST18#

 1
Common parts
90167-40025
90167-40C35
90168-50036
90189-04025
90467-12040
90467-17004
