ST181-ATMGM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )ST181,183

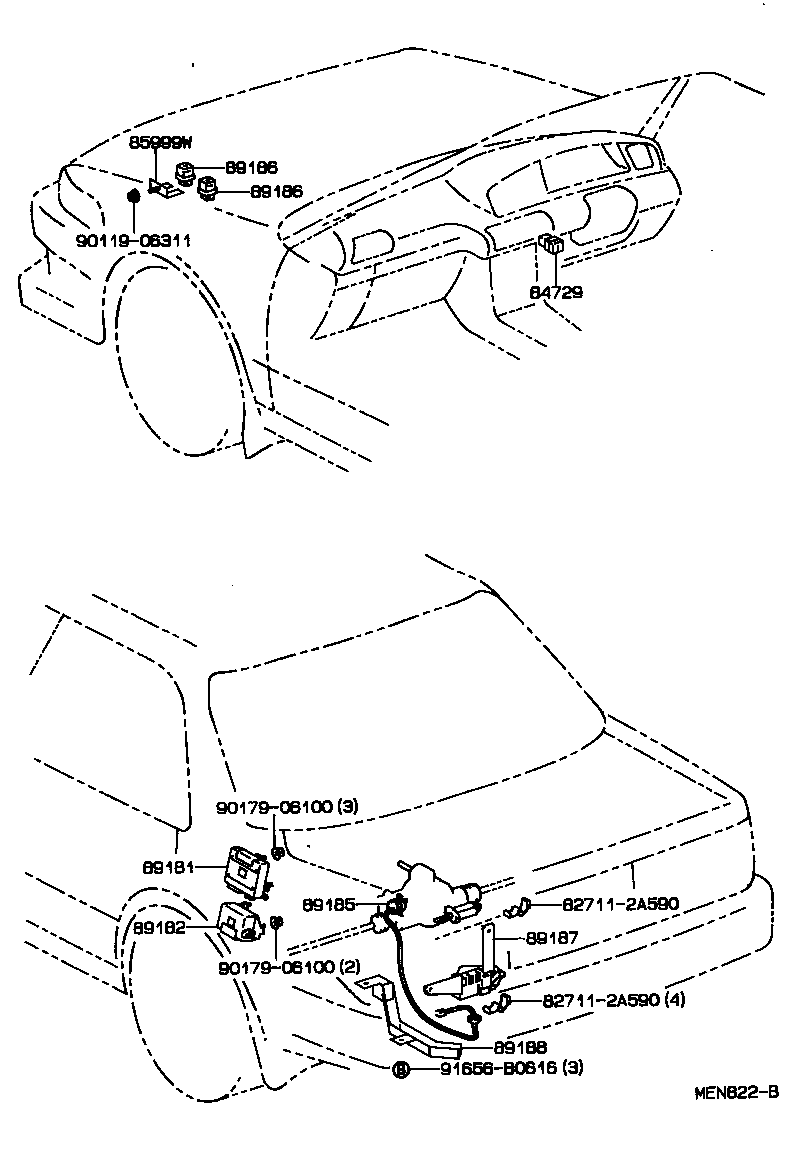

Click highlighted areas on diagram

diagram 827112A590 827112A590 84729 85999W 89181 89182 89185 89186 89186 89187 89188 9011906311 9017906100 9017906100 91656B0616
Part # Description Qty Price
84729 - SWITCH, FOUR WHEEL STEERING
84729-20010

ST181,183

 1
85999W - BRACKET, RELAY
85999-20400

ST181,183

 1
89181 - COMPUTER, STEERING CONTROL
89181-20020

ST181,183

 1
89182 - DRIVER, STEERING CONTROL MOTOR
89182-20020

ST181,183

 1
89185 - SENSOR, STEERING CONTROL
89185-20010

ST181,183

 1
89186 - RELAY, STEERING CONTROL
89186-20010

ST181,183

 2
89186 - RELAY, STEERING CONTROL
89186-20010

ST181,183

 2
89187 - PROTECTOR, STEERING CONTROL WIRING HARNESS
89187-20020

ST181,183

 1
89188 - GUIDE, STEERING CONTROL SENSOR
89188-20020

ST181,183

 1
Common parts
82711-2A590
90119-06311
90179-06100
91656-B0616
