ST181-ATMGM (1989)
Toyota Corona Exiv
(8909- )ATM
A140L,A140E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-20260 |
ST18#..MTM |
1 | ||
| 33570-20030 |
ST18#..ATM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-20320 |
ST18#..MTM |
1 | ||
| 33574-20300 |
ST18#..ATM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-20340 |
ST18# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-20310 |
ST18#..ATM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01538 |
ST18#..MTM |
1 | ||
| 90480-01568 |
ST18#..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01560 |
ST18#..ATM |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01562 |
ST18#..ATM |
1 | ||
| 33821K - CLAMP, NO.3 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01563 |
ST18#..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-32020 |
ST18#..ATM |
1 | ||
| Common parts | ||||
| 90119-06231 | ||||
| 90159-60025 | ||||
| 90179-06214 | ||||
| 90179-08061 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91611-60816 | ||||
| 93560-15020 | ||||
| 94110-40600 | ||||
(8909- )ATM
A140L,A140E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-20060 |
ST18#..ATM |
1 | ||
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-20020 |
ST18#..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-20280 |
ST18#..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-20051 |
ST18#..MTM |
1 | ||
| 33503-20470 |
ST18#..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
ST18#..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2011012 |
ST18#..MTM..FE MAUVE,TRIM3# |
1 | ||
| 33542-2012002 |
ST180,181..ATM..FE MAUVE,TRIM3# |
1 | ||
| 33542-2012006 |
ST18#..ATM SABLE,TRIM4# |
1 | ||
| 33504-2011003 |
ST18#..MTM..(FE,FG) SHADOW GRAY,TRIM1# |
1 | ||
| 33542-2012003 |
ST18#..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33504-2011016 |
ST18#..MTM..(FE,FG) SABLE,TRIM4# |
1 | ||
| 33504G - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB) | ||||
| 90501-06060 |
ST18#..ATM |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-32020 |
ST18#..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11012 |
ST18#..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11012 |
ST18#..ATM |
2 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08091 |
ST18#..ATM |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11036 |
ST18#..ATM 12V 1.7W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09001 |
ST18#..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-20030 |
ST18#..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-05025 |
ST18#..ATM |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-20020 |
ST18#..ATM |
1 | ||
| 33564C - SPRING, TORSION (FOR SHIFT LOCK RELEASE LINK NO.1) | ||||
| 90508-06008 |
ST18#..ATM |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-20030 |
ST18#..ATM |
1 | ||
| 33595 - BRACKET, SHIFT LOCK COMPUTER | ||||
| 33595-20050 |
ST18#..ATM |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-2003003 |
ST18#..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33622-2003006 |
ST18#..ATM SABLE,TRIM4# |
1 | ||
| 33622-2003002 |
ST182,183..ATM;ST180,181..ATM..FE MAUVE,TRIM3# |
1 | ||
| 33622B - PLUG, SHIFT LEVER KNOB | ||||
| 33622-2005003 |
ST18#..ATM SHADOW GRAY,TRIM1# |
2 | ||
| 33622-2005006 |
ST18#..ATM SABLE,TRIM4# |
2 | ||
| 33622-2005002 |
ST182,183..ATM;ST180,181..ATM..FE MAUVE,TRIM3# |
2 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-2004003 |
ST18#..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33623-2004002 |
ST180,181..ATM..FE MAUVE,TRIM3# |
1 | ||
| 33623-2004006 |
ST18#..ATM SABLE,TRIM4# |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-20020 |
ST18#..ATM |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-20010 |
ST18#..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-20120 |
ST18#..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-06061 |
ST18#..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04007 |
ST18#..ATM |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-12029 |
ST18#..ATM |
1 | ||
| 33876 - GUIDE, SHIFT LOCK PLATE | ||||
| 33876-20020 |
ST18#..ATM NO.1 |
1 | ||
| 33876-20040 |
ST18#..ATM NO.2 |
1 | ||
| 33876 - GUIDE, SHIFT LOCK PLATE | ||||
| 33876-20020 |
ST18#..ATM NO.1 |
1 | ||
| 33876-20040 |
ST18#..ATM NO.2 |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-20020 |
ST18#..ATM |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-16010 |
ST18#..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-20040 |
ST18#..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-20280 |
ST18#..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-20160 |
ST18#..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-20120 |
ST18#..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-20100 |
ST18#..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-20030 |
ST18#..ATM |
1 | ||
| 55539L - COVER, SPARE SWITCH HOLE | ||||
| 55539-22100 |
ST180,181..ATM |
1 | ||
| Common parts | ||||
| 90119-08606 | ||||
| 90159-40210 | ||||
| 90206-12002 | ||||
| 90209-12010 | ||||
| 90463-12570 | ||||
| 91665-40818 | ||||
| 93315-14010 | ||||
| 93315-15012 | ||||
| 93510-13010 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
| 8701 | ||||

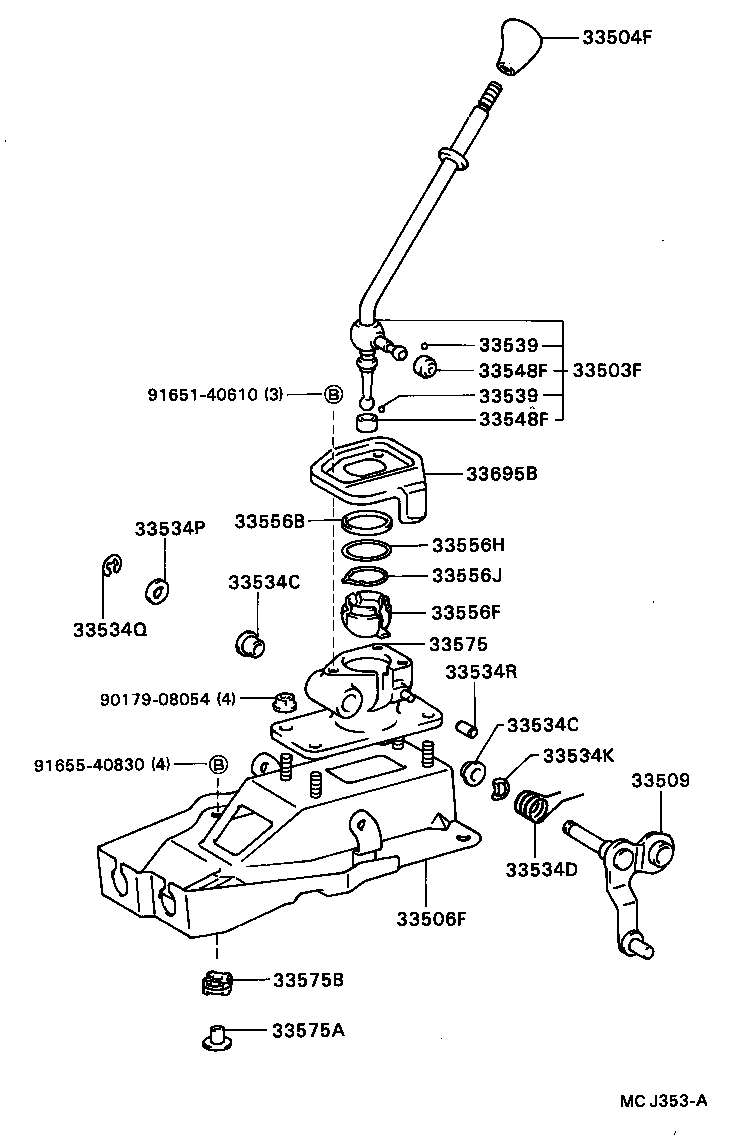

(8909-9108)MTM
S50,52,53
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-20051 |
ST18#..MTM |
1 | ||
| 33503-20470 |
ST18#..ATM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2011012 |
ST18#..MTM..FE MAUVE,TRIM3# |
1 | ||
| 33542-2012002 |
ST180,181..ATM..FE MAUVE,TRIM3# |
1 | ||
| 33542-2012006 |
ST18#..ATM SABLE,TRIM4# |
1 | ||
| 33504-2011003 |
ST18#..MTM..(FE,FG) SHADOW GRAY,TRIM1# |
1 | ||
| 33542-2012003 |
ST18#..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33504-2011016 |
ST18#..MTM..(FE,FG) SABLE,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-20260 |
ST18#..MTM |
1 | ||
| 33570-20030 |
ST18#..ATM |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-20012 |
ST18#..MTM |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
ST18#..MTM |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
ST18#..MTM |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20084 |
ST18#..MTM |
1 | ||
| 33534K - WASHER, WAVE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90206-12003 |
ST18#..MTM |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
ST18#..MTM |
1 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
ST18#..MTM |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06029 |
ST18#..MTM |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
ST18#..MTM |
2 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
ST18#..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
ST18#..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
ST18#..MTM |
2 | ||
| 33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90389-37001 |
ST18#..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-20040 |
ST18#..MTM |
1 | ||
| 33556H - SHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90564-37011 |
ST18#..MTM 厚さ=0.7,ﾏｰｸ=C |
1 | ||
| 90564-37010 |
ST18#..MTM 厚さ=0.6,ﾏｰｸ=B |
1 | ||
| 90564-37015 |
ST18#..MTM 厚さ=1.1,ﾏｰｸ=G |
1 | ||
| 90564-37013 |
ST18#..MTM 厚さ=0.9,ﾏｰｸ=E |
1 | ||
| 90564-37009 |
ST18#..MTM 厚さ=0.5,ﾏｰｸ=A |
1 | ||
| 90564-37014 |
ST18#..MTM 厚さ=1.0,ﾏｰｸ=F |
1 | ||
| 90564-37012 |
ST18#..MTM 厚さ=0.8,ﾏｰｸ=D |
1 | ||
| 90564-37018 |
ST18#..MTM 厚さ=1.4,ﾏｰｸ=K |
1 | ||
| 90564-37019 |
ST18#..MTM 厚さ=1.5,ﾏｰｸ=L |
1 | ||
| 90564-37017 |
ST18#..MTM 厚さ=1.3,ﾏｰｸ=J |
1 | ||
| 90564-37021 |
ST18#..MTM 厚さ=1.7,ﾏｰｸ=N |
1 | ||
| 90564-37020 |
ST18#..MTM 厚さ=1.6,ﾏｰｸ=M |
1 | ||
| 90564-37016 |
ST18#..MTM 厚さ=1.2,ﾏｰｸ=H |
1 | ||
| 33556J - RING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT) | ||||
| 90520-36018 |
ST18#..MTM |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-20362 |
ST18#..MTM |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08082 |
ST18#..MTM |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90385-09006 |
ST18#..MTM |
4 | ||
| 33695B - COVER, SELECTING SPRING (FOR FLOOR SHIFT) | ||||
| 33695-20030 |
ST18#..MTM |
1 | ||
| Common parts | ||||
| 90179-08054 | ||||
| 91651-40610 | ||||
| 91655-40830 | ||||

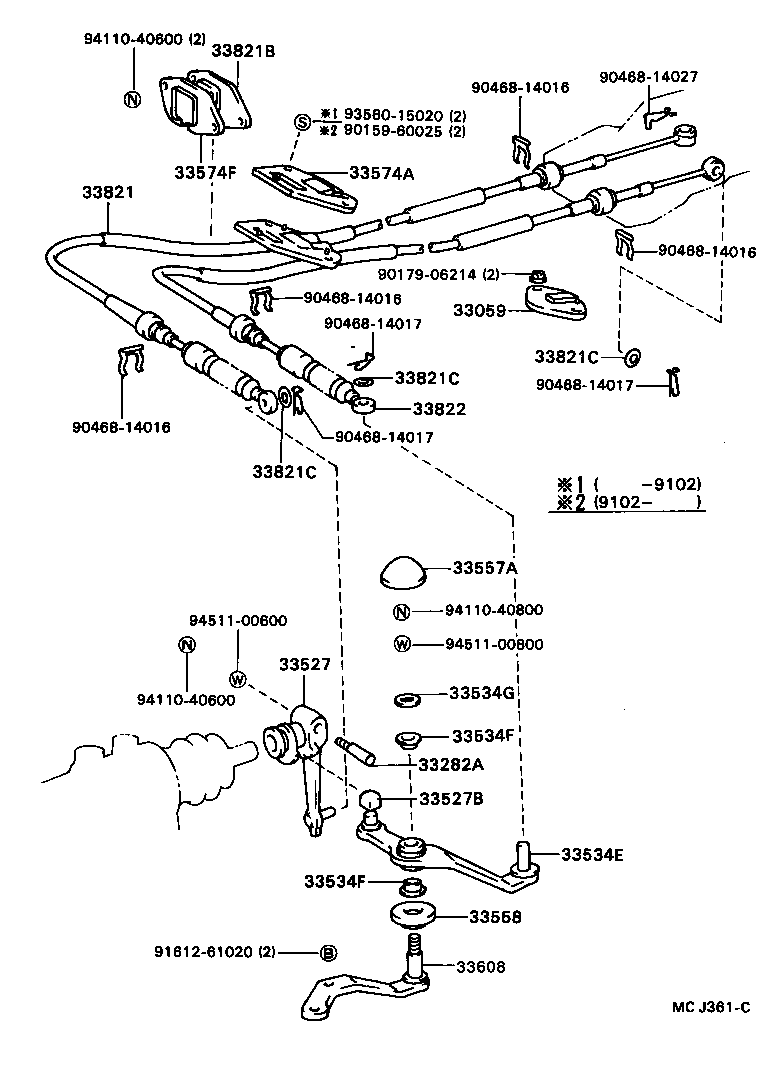

(8909- )MTM
S50,52,53
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33059 - RETAINER SUB-ASSY, DUST SEAL | ||||
| 33059-20020 |
ST18#..MTM |
1 | ||
| 33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER) | ||||
| 33282-35010 |
ST18#..MTM |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-32010 |
ST18#..MTM |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
ST18#..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-32030 |
ST18#..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
ST18#..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
ST18#..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
ST18#..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
ST18#..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-32010 |
ST18#..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-20320 |
ST18#..MTM |
1 | ||
| 33574-20300 |
ST18#..ATM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-20340 |
ST18# |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-32021 |
ST18#..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-20681 |
ST18#..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01538 |
ST18#..MTM |
1 | ||
| 90480-01568 |
ST18#..ATM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
ST18#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10113 |
ST18#..MTM 外径=18,SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
ST18#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10113 |
ST18#..MTM 外径=18,SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
ST18#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10113 |
ST18#..MTM 外径=18,SHIFT LEVER SIDE |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-20251 |
ST18#..MTM |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90179-06214 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14027 | ||||
| 91612-61020 | ||||
| 93560-15020 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
