ST180-ATPSM (1989)
Toyota Corona Exiv
Production
Sep 1989
-
Aug 1990
Engine
4SFI
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )

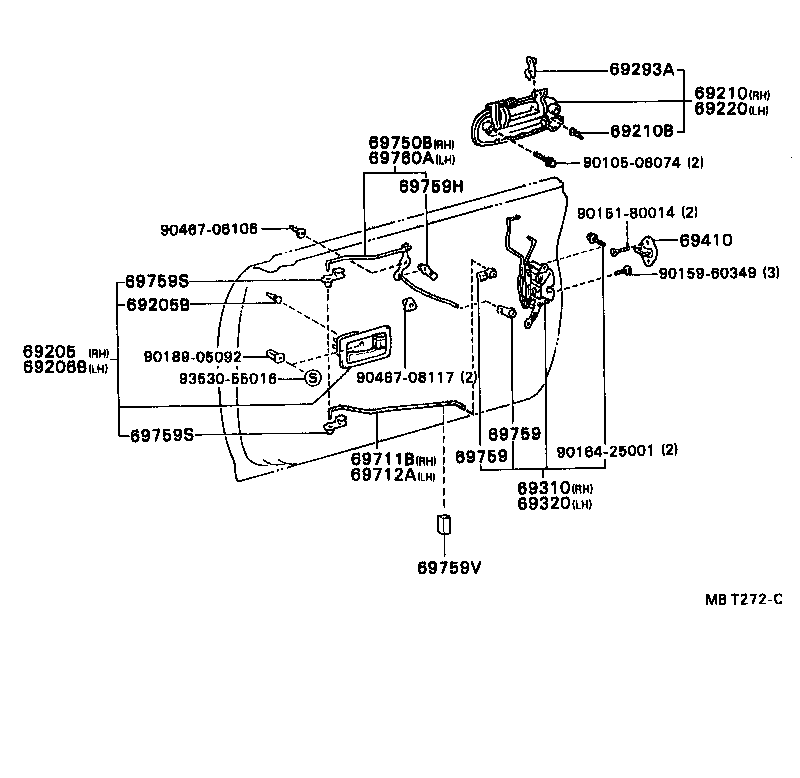

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-2010003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 69205-2010006 |
ST18# SABLE,TRIM4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
ST18# |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-2010003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 69206-2010006 |
ST18# SABLE,TRIM4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-20230 |
ST18# |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
ST18# |
8 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-20230 |
ST18# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
ST18# ｲｴﾛｰ |
1 | ||
| 69293-12030 |
ST18# NATURAL |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-20340 |
ST18# MITUI |
1 | ||
| 69030-20350 |
ST18# AISIN |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-20310 |
ST18#..FG,TR MITUI |
1 | ||
| 69040-20330 |
ST18#..FG,TR AISIN |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20100 |
ST18# AISIN |
2 | ||
| 69410-20090 |
ST18# MITUI |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-20170 |
ST18# |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-20170 |
ST18# |
1 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-20040 |
ST18# |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
ST18# GREEN |
4 | ||
| 69759-24060 |
ST18# GRAY |
4 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
ST18# GREEN |
4 | ||
| 69759-24060 |
ST18# GRAY |
4 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-24080 |
ST18# ｲｴﾛｰ |
1 | ||
| 69759-24090 |
ST18# ﾌﾞﾗｳﾝ |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
ST18# ｲｴﾛｰ |
2 | ||
| 69759-14050 |
ST18# PINK |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
ST18# ｲｴﾛｰ |
2 | ||
| 69759-14050 |
ST18# PINK |
2 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-14010 |
ST18# |
2 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-20040 |
ST18# |
1 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 90151-80014 | ||||
| 90159-60349 | ||||
| 90164-25001 | ||||
| 90189-05092 | ||||
| 90467-06106 | ||||
| 90467-08117 | ||||
| 93530-55016 | ||||
