ST180-ATPGM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

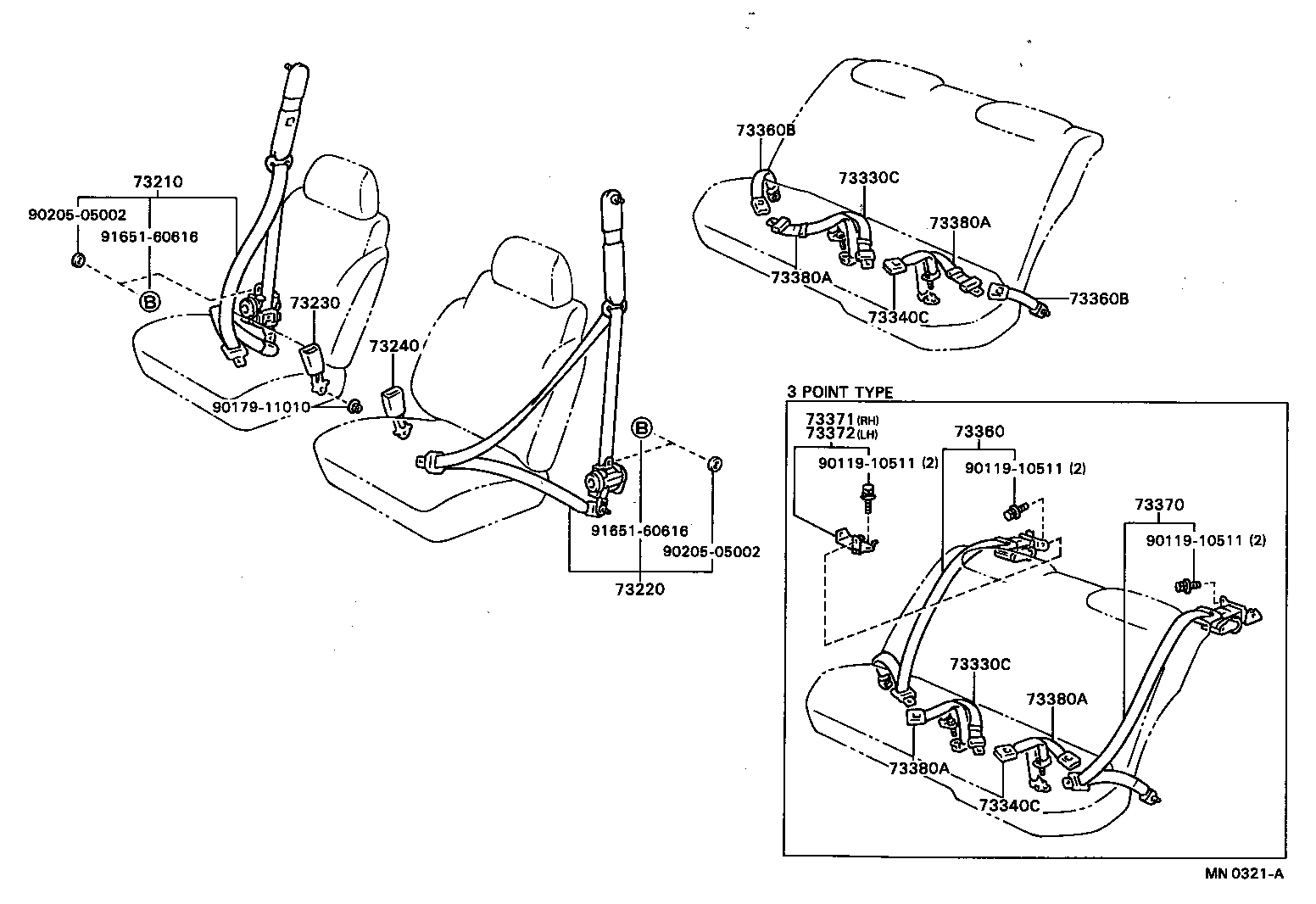

Click highlighted areas on diagram

diagram 73210 73220 73230 73240 73330C 73330C 73340C 73340C 73360 73360B 73360B 73370 73371 73372 73380A 73380A 73380A 73380A 9011910511 9011910511 9011910511 9017911010 9020505002 9020505002 9165160616 9165160616
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-2054002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
73210-2054006

ST18#..EFI,TWC;ST180,181..FE..CI

SABLE,TRIM4#

 1
73210-2054003

ST18#..EFI,TWC;ST180,181..FE..CI

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-2041003

ST18#..EFI,TWC;ST180,181..FE..CI

SHADOW GRAY,TRIM1#

 1
73220-2041006

ST18#..EFI,TWC;ST180,181..FE..CI

SABLE,TRIM4#

 1
73220-2041002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-2049006

ST18#

SABLE,TRIM4#

 1
73230-2049003

ST18#

SHADOW GRAY,TRIM1#

 1
73230-2049002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-2049006

ST18#

SABLE,TRIM4#

 1
73230-2049003

ST18#

SHADOW GRAY,TRIM1#

 1
73230-2049002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH
73330-2034006

ST18#

SABLE,TRIM4#

 1
73330-2034002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
73330-2034003

ST18#

SHADOW GRAY,TRIM1#

 1
73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH
73330-2034006

ST18#

SABLE,TRIM4#

 1
73330-2034002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
73330-2034003

ST18#

SHADOW GRAY,TRIM1#

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-2012003

ST18#

SHADOW GRAY,TRIM1#

 1
73340-2012006

ST18#

SABLE,TRIM4#

 1
73340-2012002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-2012003

ST18#

SHADOW GRAY,TRIM1#

 1
73340-2012006

ST18#

SABLE,TRIM4#

 1
73340-2012002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
73360B - BELT ASSY, REAR SEAT, OUTER
73360-2030006

ST18#..CI,EFI

SABLE,TRIM4#

 2
73360-2030002

ST180,181..FE;ST182,183..EFI

MAUVE,TRIM3#

 2
73360-2030003

ST18#..CI,EFI

SHADOW GRAY,TRIM1#

 2
73360B - BELT ASSY, REAR SEAT, OUTER
73360-2030006

ST18#..CI,EFI

SABLE,TRIM4#

 2
73360-2030002

ST180,181..FE;ST182,183..EFI

MAUVE,TRIM3#

 2
73360-2030003

ST18#..CI,EFI

SHADOW GRAY,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-2026006

ST18#..CI,EFI

SABLE,TRIM4#

 2
73380-2026003

ST18#..CI,EFI

SHADOW GRAY,TRIM1#

 2
73380-2026002

ST180,181..FE;ST182,183..EFI

MAUVE,TRIM3#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-2026006

ST18#..CI,EFI

SABLE,TRIM4#

 2
73380-2026003

ST18#..CI,EFI

SHADOW GRAY,TRIM1#

 2
73380-2026002

ST180,181..FE;ST182,183..EFI

MAUVE,TRIM3#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-2026006

ST18#..CI,EFI

SABLE,TRIM4#

 2
73380-2026003

ST18#..CI,EFI

SHADOW GRAY,TRIM1#

 2
73380-2026002

ST180,181..FE;ST182,183..EFI

MAUVE,TRIM3#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-2026006

ST18#..CI,EFI

SABLE,TRIM4#

 2
73380-2026003

ST18#..CI,EFI

SHADOW GRAY,TRIM1#

 2
73380-2026002

ST180,181..FE;ST182,183..EFI

MAUVE,TRIM3#

 2
Common parts
90119-10511
90179-11010
90205-05002
91651-60616
