ST180-ATPGM (1989)
Toyota Corona Exiv

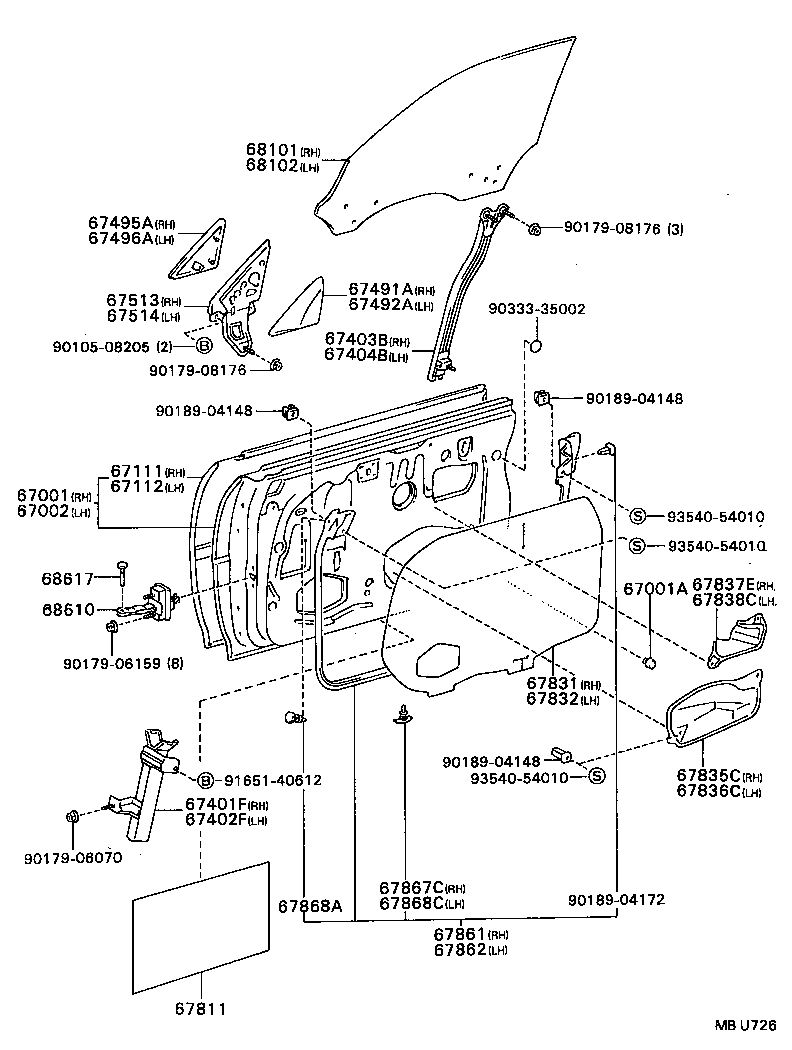

ILLUST NO. 1 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20860 |
ST18# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
ST18# A51-A54 |
2 | ||
| 90541-09059 |
ST18# A41,A42 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20820 |
ST18# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20310 |
ST18# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20330 |
ST18# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-20200 |
ST18# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-20190 |
ST18# |
1 | ||
| 67403B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH | ||||
| 67403-20070 |
ST18# |
1 | ||
| 67404B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH | ||||
| 67404-20070 |
ST18# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20210 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67491-20200 |
ST180,181;ST182,183..TR,TRG |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20220 |
ST180,181;ST182,183..TR,TRG |
1 | ||
| 67492-20230 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-20100 |
ST18# |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-20070 |
ST18# |
1 | ||
| 67513 - BRACKET, FRONT DOOR MIRROR, RH | ||||
| 67513-20030 |
ST18# |
1 | ||
| 67514 - BRACKET, FRONT DOOR MIRROR, LH | ||||
| 67514-20030 |
ST18# |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
ST18# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-20380 |
ST180,181;ST182,183..TR,TRG |
1 | ||
| 67831-20390 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-20380 |
ST180,181;ST182,183..TR,TRG |
1 | ||
| 67831-20390 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-20040 |
ST18# |
1 | ||
| 67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH | ||||
| 67836-20080 |
ST18# |
1 | ||
| 67837E - COVER, FRONT DOOR SERVICE HOLE, NO.4 RH | ||||
| 67837-20090 |
ST18# |
1 | ||
| 67838C - COVER, FRONT DOOR SERVICE HOLE, NO.4 LH | ||||
| 67838-20080 |
ST18# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20330 |
ST18# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20330 |
ST18# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-20140 |
ST18# |
18 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-20030 |
ST18# |
6 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20140 |
ST18# |
18 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-20540 |
ST18# *TT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68111-20530 |
ST18# *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-20460 |
ST18# *TT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68112-20450 |
ST18# *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-20080 |
ST18# |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20020 |
ST18# |
2 | ||
| Common parts | ||||
| 90105-08205 | ||||
| 90179-06070 | ||||
| 90179-06159 | ||||
| 90179-08176 | ||||
| 90189-04148 | ||||
| 90189-04172 | ||||
| 90333-35002 | ||||
| 91651-40612 | ||||
| 93540-54010 | ||||

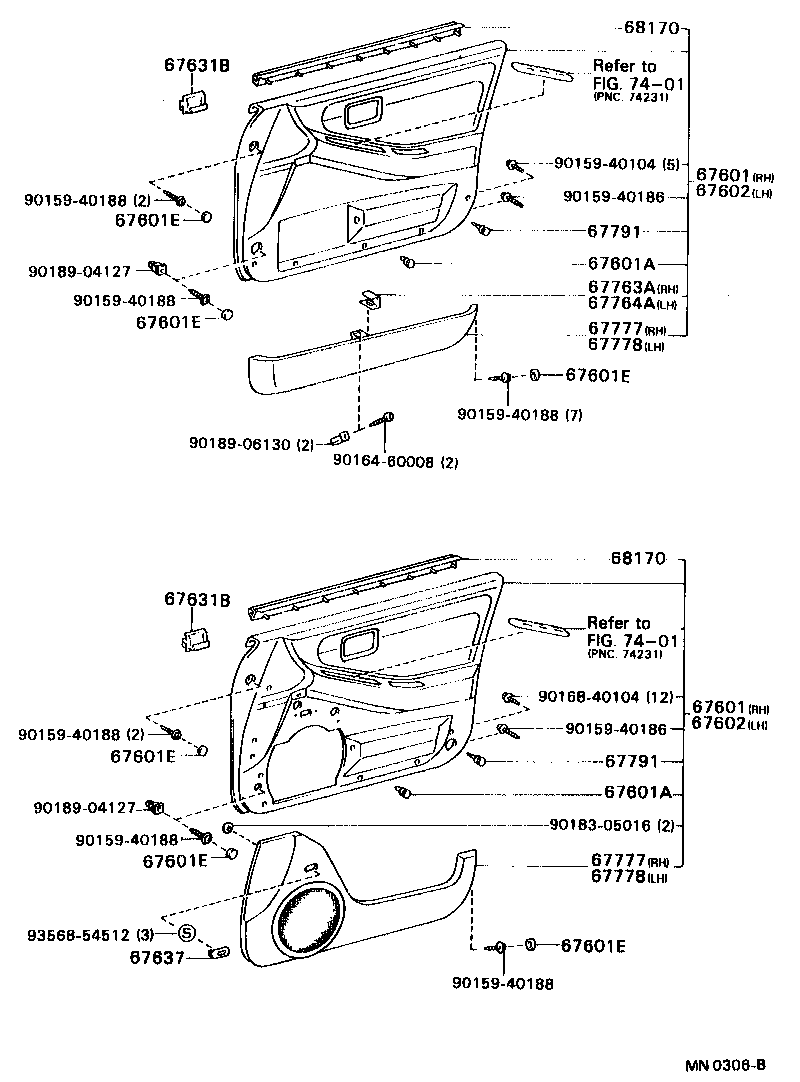

ILLUST NO. 2 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2B70002 |
ST180,181..FE MAUVE,TRIM3# |
1 | ||
| 67650-2B69003 |
ST180,181..FE,FG ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-2B69006 |
ST180,181..FE,FG ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67650-2B69002 |
ST180,181..FE ｱﾘ(ｽﾋﾟ-ｶ),MAUVE,TRIM3# |
1 | ||
| 67650-2B70006 |
ST180,181..FE,FG SABLE,TRIM4# |
1 | ||
| 67650-2B70003 |
ST180,181..FE,FG SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2B70002 |
ST180,181..FE MAUVE,TRIM3# |
1 | ||
| 67650-2B69003 |
ST180,181..FE,FG ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-2B69006 |
ST180,181..FE,FG ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67650-2B69002 |
ST180,181..FE ｱﾘ(ｽﾋﾟ-ｶ),MAUVE,TRIM3# |
1 | ||
| 67650-2B70006 |
ST180,181..FE,FG SABLE,TRIM4# |
1 | ||
| 67650-2B70003 |
ST180,181..FE,FG SHADOW GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12030 |
ST18# |
4 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12030 |
ST18# |
4 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000816 |
ST18# SABLE,TRIM4# |
6 | ||
| 90339-1000812 |
ST182,183;ST180,181..FE MAUVE,TRIM3# |
6 | ||
| 90339-1000803 |
ST18# SHADOW GRAY,TRIM1# |
6 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000816 |
ST18# SABLE,TRIM4# |
6 | ||
| 90339-1000812 |
ST182,183;ST180,181..FE MAUVE,TRIM3# |
6 | ||
| 90339-1000803 |
ST18# SHADOW GRAY,TRIM1# |
6 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000816 |
ST18# SABLE,TRIM4# |
6 | ||
| 90339-1000812 |
ST182,183;ST180,181..FE MAUVE,TRIM3# |
6 | ||
| 90339-1000803 |
ST18# SHADOW GRAY,TRIM1# |
6 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000816 |
ST18# SABLE,TRIM4# |
6 | ||
| 90339-1000812 |
ST182,183;ST180,181..FE MAUVE,TRIM3# |
6 | ||
| 90339-1000803 |
ST18# SHADOW GRAY,TRIM1# |
6 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000816 |
ST18# SABLE,TRIM4# |
6 | ||
| 90339-1000812 |
ST182,183;ST180,181..FE MAUVE,TRIM3# |
6 | ||
| 90339-1000803 |
ST18# SHADOW GRAY,TRIM1# |
6 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000816 |
ST18# SABLE,TRIM4# |
6 | ||
| 90339-1000812 |
ST182,183;ST180,181..FE MAUVE,TRIM3# |
6 | ||
| 90339-1000803 |
ST18# SHADOW GRAY,TRIM1# |
6 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G05002 |
ST180,181..FE ｱﾘ(ｽﾋﾟ-ｶ),MAUVE,TRIM3# |
1 | ||
| 67620-2G06002 |
ST180,181..FE MAUVE,TRIM3# |
1 | ||
| 67620-2G06006 |
ST180,181..FE,FG SABLE,TRIM4# |
1 | ||
| 67620-2G05003 |
ST180,181..FE,FG ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G06003 |
ST180,181..FE,FG SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G05006 |
ST180,181..FE,FG ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G05002 |
ST180,181..FE ｱﾘ(ｽﾋﾟ-ｶ),MAUVE,TRIM3# |
1 | ||
| 67620-2G06002 |
ST180,181..FE MAUVE,TRIM3# |
1 | ||
| 67620-2G06006 |
ST180,181..FE,FG SABLE,TRIM4# |
1 | ||
| 67620-2G05003 |
ST180,181..FE,FG ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G06003 |
ST180,181..FE,FG SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G05006 |
ST180,181..FE,FG ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67631B - RETAINER, FRONT DOOR TRIM, UPPER | ||||
| 67631-20010 |
ST18# |
2 | ||
| 67631B - RETAINER, FRONT DOOR TRIM, UPPER | ||||
| 67631-20010 |
ST18# |
2 | ||
| 67637 - PLATE, FRONT DOOR TRIM | ||||
| 67637-2003007 |
ST18# ｱﾘ(ｽﾋﾟ-ｶ),KHAKI,TRIM1# |
2 | ||
| 67637-2005002 |
ST180,181..FE;ST182,183..TR,TRG ﾅｼ(ｽﾋﾟ-ｶ),MAUVE,TRIM3# |
2 | ||
| 67637-2005006 |
ST180,181;ST182,183..TR,TRG ﾅｼ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
2 | ||
| 67637-2003002 |
ST182,183;ST180,181..FE ｱﾘ(ｽﾋﾟ-ｶ),MAUVE,TRIM3# |
2 | ||
| 67637-2005007 |
ST180,181;ST182,183..TR,TRG ﾅｼ(ｽﾋﾟ-ｶ),KHAKI,TRIM1# |
2 | ||
| 67637-2003006 |
ST18# ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
2 | ||
| 67763A - COVER, FRONT DOOR TRIM, LOWER RH | ||||
| 67763-2013003 |
ST180,181;ST182,183..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 67763-2013006 |
ST180,181;ST182,183..TR,TRG SABLE,TRIM4# |
1 | ||
| 67763-2013002 |
ST180,181..FE;ST182,183..TR,TRG MAUVE,TRIM3# |
1 | ||
| 67764A - COVER, FRONT DOOR TRIM, LOWER LH | ||||
| 67764-2007003 |
ST180,181;ST182,183..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 67764-2007006 |
ST180,181;ST182,183..TR,TRG SABLE,TRIM4# |
1 | ||
| 67764-2007002 |
ST180,181..FE;ST182,183..TR,TRG MAUVE,TRIM3# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2015003 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67777-2017003 |
ST180,181;ST182,183..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 67777-2017002 |
ST180,181..FE;ST182,183..TR,TRG MAUVE,TRIM3# |
1 | ||
| 67777-2015002 |
ST180,181..FE;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),MAUVE,TRIM3# |
1 | ||
| 67777-2017006 |
ST180,181;ST182,183..TR,TRG SABLE,TRIM4# |
1 | ||
| 67777-2015006 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2015003 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67777-2017003 |
ST180,181;ST182,183..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 67777-2017002 |
ST180,181..FE;ST182,183..TR,TRG MAUVE,TRIM3# |
1 | ||
| 67777-2015002 |
ST180,181..FE;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),MAUVE,TRIM3# |
1 | ||
| 67777-2017006 |
ST180,181;ST182,183..TR,TRG SABLE,TRIM4# |
1 | ||
| 67777-2015006 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2008002 |
ST180,181..FE;ST182,183..TR,TRG MAUVE,TRIM3# |
1 | ||
| 67778-2010003 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67778-2010006 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67778-2010002 |
ST180,181..FE;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),MAUVE,TRIM3# |
1 | ||
| 67778-2008006 |
ST180,181;ST182,183..TR,TRG SABLE,TRIM4# |
1 | ||
| 67778-2008003 |
ST180,181;ST182,183..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2008002 |
ST180,181..FE;ST182,183..TR,TRG MAUVE,TRIM3# |
1 | ||
| 67778-2010003 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67778-2010006 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67778-2010002 |
ST180,181..FE;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ),MAUVE,TRIM3# |
1 | ||
| 67778-2008006 |
ST180,181;ST182,183..TR,TRG SABLE,TRIM4# |
1 | ||
| 67778-2008003 |
ST180,181;ST182,183..TR,TRG SHADOW GRAY,TRIM1# |
1 | ||
| 67791 - RETAINER, FRONT DOOR POCKET | ||||
| 67791-20040 |
ST180,181;ST182,183..TR,TRG |
2 | ||
| 67791-20040 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67791 - RETAINER, FRONT DOOR POCKET | ||||
| 67791-20040 |
ST180,181;ST182,183..TR,TRG |
2 | ||
| 67791-20040 |
ST180,181;ST182,183..TR,TRG ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20380 |
ST18# 右側 |
1 | ||
| 68220-20290 |
ST18# 左側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20380 |
ST18# 右側 |
1 | ||
| 68220-20290 |
ST18# 左側 |
1 | ||
| Common parts | ||||
| 90159-40104 | ||||
| 90159-40186 | ||||
| 90159-40188 | ||||
| 90164-60008 | ||||
| 90168-40104 | ||||
| 90183-05016 | ||||
| 90189-04127 | ||||
| 90189-06130 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 7401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
