ST180-ATPGM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

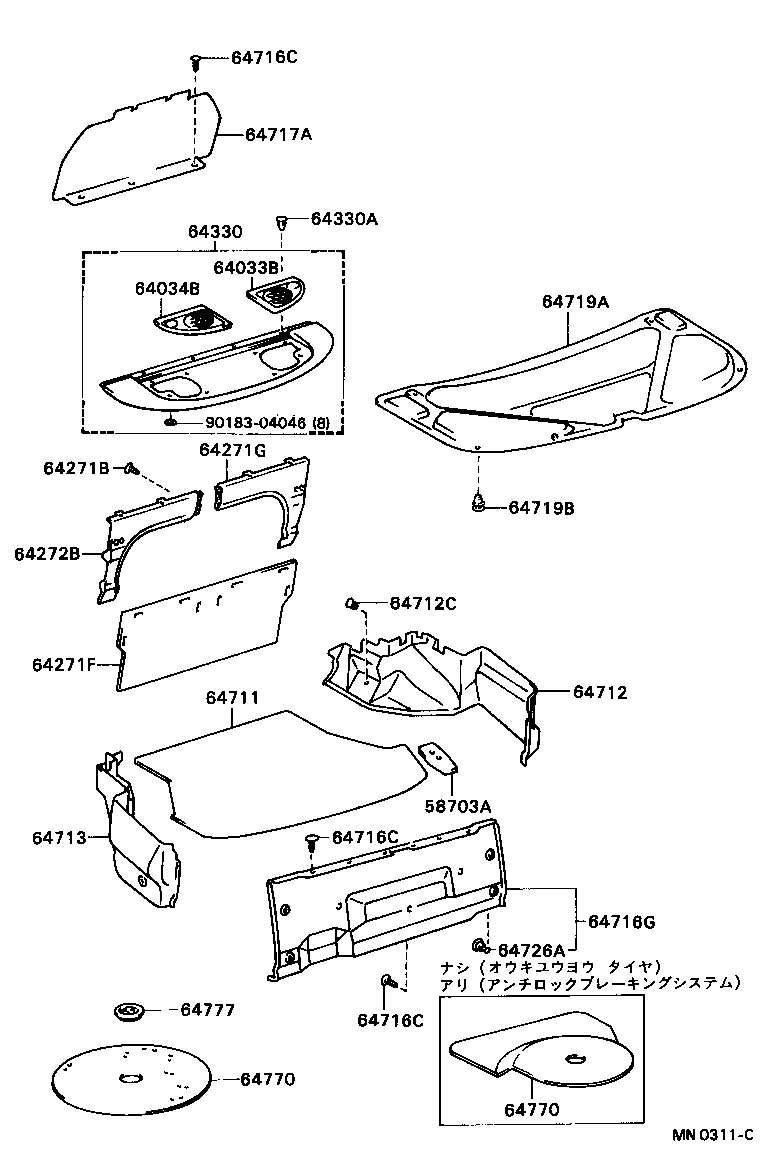

Click highlighted areas on diagram

diagram 58703A 64033B 64034B 64271B 64271F 64271G 64272B 64330 64330A 64711 64712 64712C 64713 64716C 64716C 64716C 64716G 64717A 64719A 64719B 64726A 64770 64770 64777 9018304046
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-20150

ST18#

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-2020006

ST18#

ｱﾘ(ﾂｲ-ﾀ),SABLE,TRIM4#

 1
64033-2016006

ST18#

SABLE,TRIM4#

 1
64033-2016002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
64033-2016003

ST18#

SHADOW GRAY,TRIM1#

 1
64033-2020002

ST182,183;ST180,181..FE

ｱﾘ(ﾂｲ-ﾀ),MAUVE,TRIM3#

 1
64033-2020003

ST18#

ｱﾘ(ﾂｲ-ﾀ),SHADOW GRAY,TRIM1#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64034-2017006

ST18#

ｱﾘ(ﾂｲ-ﾀ),SABLE,TRIM4#

 1
64034-2017002

ST182,183;ST180,181..FE

ｱﾘ(ﾂｲ-ﾀ),MAUVE,TRIM3#

 1
64034-2017003

ST18#

ｱﾘ(ﾂｲ-ﾀ),SHADOW GRAY,TRIM1#

 1
64034-2013002

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 1
64034-2013006

ST18#

SABLE,TRIM4#

 1
64034-2013003

ST18#

SHADOW GRAY,TRIM1#

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-0500501

ST182,183;ST180,181..FE

BLACK,TRIM1#,3#,4#

 1
64271G - BOARD, ROOM PARTITION, RH
64271-2021003

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 1
64272B - BOARD, ROOM PARTITION, LH
64272-2003003

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2B08002

ST180,181..FE;ST182,183..EFI

MAUVE,TRIM3#

 1
64330-2B11002

ST180,181..FE;ST182,183..EFI

ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ),MAUVE,TRIM3#

 1
64330-2B08006

ST18#..CI,EFI

SABLE,TRIM4#

 1
64330-2B08003

ST18#..CI,EFI

SHADOW GRAY,TRIM1#

 1
64330-2B15003

ST18#..CI,EFI

ｱﾘ(ﾂｲ-ﾀ),SHADOW GRAY,TRIM1#

 1
64330-2B15002

ST180,181..FE;ST182,183..EFI

ｱﾘ(ﾂｲ-ﾀ),MAUVE,TRIM3#

 1
64330-2B11006

ST180,181..FE;ST182,183..EFI

ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ),SABLE,TRIM4#

 1
64330-2B11003

ST180,181..FE;ST182,183..EFI

ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ),SHADOW GRAY,TRIM1#

 1
64330-2B16006

ST180,181..FE;ST182,183..EFI

ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ & ﾂｲｰﾀ),SABLE,TRIM4#

 1
64330-2B16003

ST180,181..FE;ST182,183..EFI

ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ & ﾂｲｰﾀ),SHADOW GRAY,TRIM1#

 1
64330-2B15006

ST18#..CI,EFI

ｱﾘ(ﾂｲ-ﾀ),SABLE,TRIM4#

 1
64330-2B16002

ST180,181..FE;ST182,183..EFI

ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ & ﾂｲｰﾀ),MAUVE,TRIM3#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0803732

ST182,183;ST180,181..FE

MAUVE,TRIM3#

 4
90467-0803746

ST18#

SABLE,TRIM4#

 4
90467-0803713

ST18#

SHADOW GRAY,TRIM1#

 4
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-2062003

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-2016003

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 1
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-0805623

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 7
64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH
64713-2016003

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0500433

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 7
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0500433

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 7
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0500433

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 7
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-2031003

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-2003003

ST182,183;ST180,181..FE

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1#,3#,4#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-0705903

ST182,183;ST180,181..FE

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1#,3#,4#

 15
64726A - CLIP, LUGGAGE TRIM, REAR
64726-2002003

ST182,183;ST180,181..FE

GRAY,TRIM1#,3#,4#

 6
64770 - COVER ASSY, SPARE WHEEL
64770-20140

ST180,182

 1
64770 - COVER ASSY, SPARE WHEEL
64770-20140

ST180,182

 1
64777 - CLAMP, SPARE WHEEL COVER
64777-32030

ST18#

 1
Common parts
90183-04046
