ST180-ATPGM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

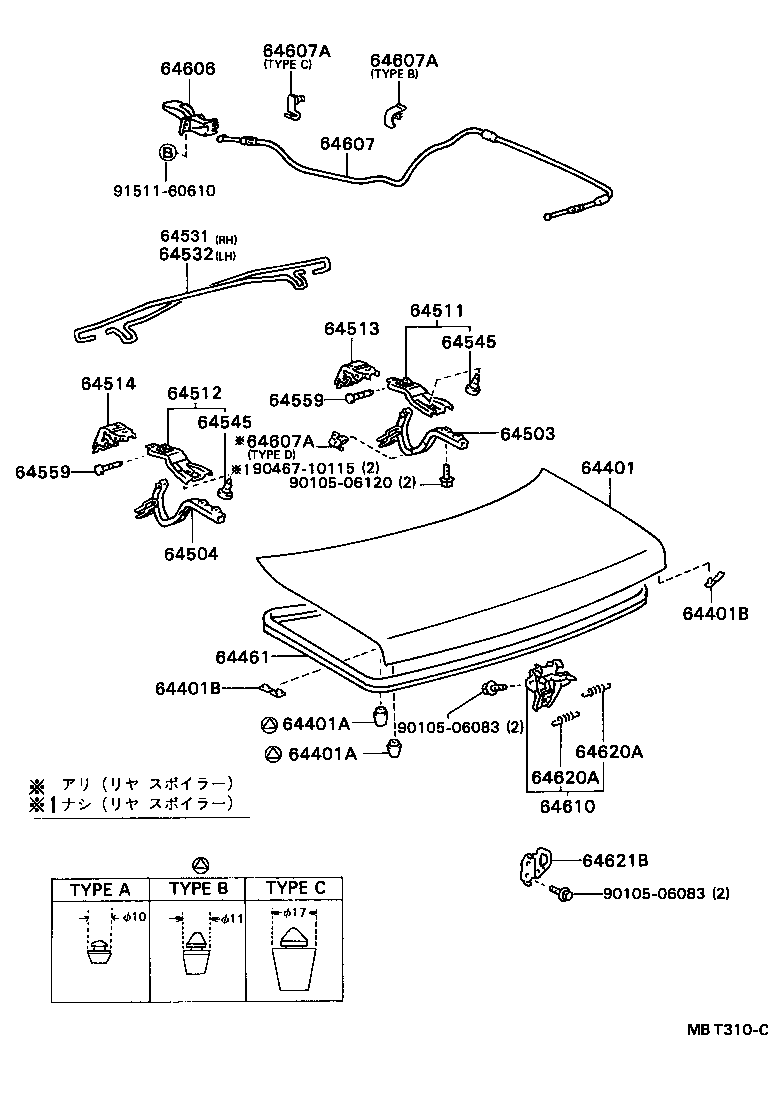

Click highlighted areas on diagram

diagram 64401 64401A 64401A 64401B 64401B 64461 64503 64504 64511 64512 64513 64514 64531 64532 64545 64545 64559 64559 64606 64607 64607A 64607A 64607A 64610 64620A 64620A 64621B 9010506083 9010506083 9010506120 9046710115 9151160610
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-2B300

ST18#

 1
64401-2B310

ST18#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06076

ST18#

ﾀｲﾌﾟ A

 2
90541-08024

ST18#

ﾀｲﾌﾟ B

 2
90541-09043

ST18#

ﾀｲﾌﾟ C

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06076

ST18#

ﾀｲﾌﾟ A

 2
90541-08024

ST18#

ﾀｲﾌﾟ B

 2
90541-09043

ST18#

ﾀｲﾌﾟ C

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64425-20010

ST18#

右側

 1
64426-20010

ST18#

左側

 1
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64425-20010

ST18#

右側

 1
64426-20010

ST18#

左側

 1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-20320

ST18#

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-20060

ST18#

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64504-20040

ST18#

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-20160

ST18#

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64512-20160

ST18#

 1
64513 - SUPPORT, LUGGAGE DOOR HINGE, NO.2 RH
64513-20030

ST18#

 1
64514 - SUPPORT, LUGGAGE DOOR HINGE, NO.2 LH
64514-20030

ST18#

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-20280

ST18#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64531-20270

ST18#

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-20280

ST18#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64532-20270

ST18#

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07030

ST18#

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07030

ST18#

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12030

ST18#

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12030

ST18#

 2
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-20120

ST18#

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-20630

ST18#

 1
64607-20641

ST18#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90959-01377

ST18#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),ﾀｲﾌﾟ D

 2
90959-01393

ST18#

ﾀｲﾌﾟ B

 1
90959-01394

ST18#

ﾀｲﾌﾟ C

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90959-01377

ST18#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),ﾀｲﾌﾟ D

 2
90959-01393

ST18#

ﾀｲﾌﾟ B

 1
90959-01394

ST18#

ﾀｲﾌﾟ C

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90959-01377

ST18#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),ﾀｲﾌﾟ D

 2
90959-01393

ST18#

ﾀｲﾌﾟ B

 1
90959-01394

ST18#

ﾀｲﾌﾟ C

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20200

ST18#

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-05002

ST18#

L=21.2, WD=5.2

 1
90506-06009

ST18#

L=21.0, WD=6.2

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-05002

ST18#

L=21.2, WD=5.2

 1
90506-06009

ST18#

L=21.0, WD=6.2

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-22040

ST18#

 1
Common parts
90105-06083
90105-06120
90467-10115
91511-60610
