ST180-ATPGM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

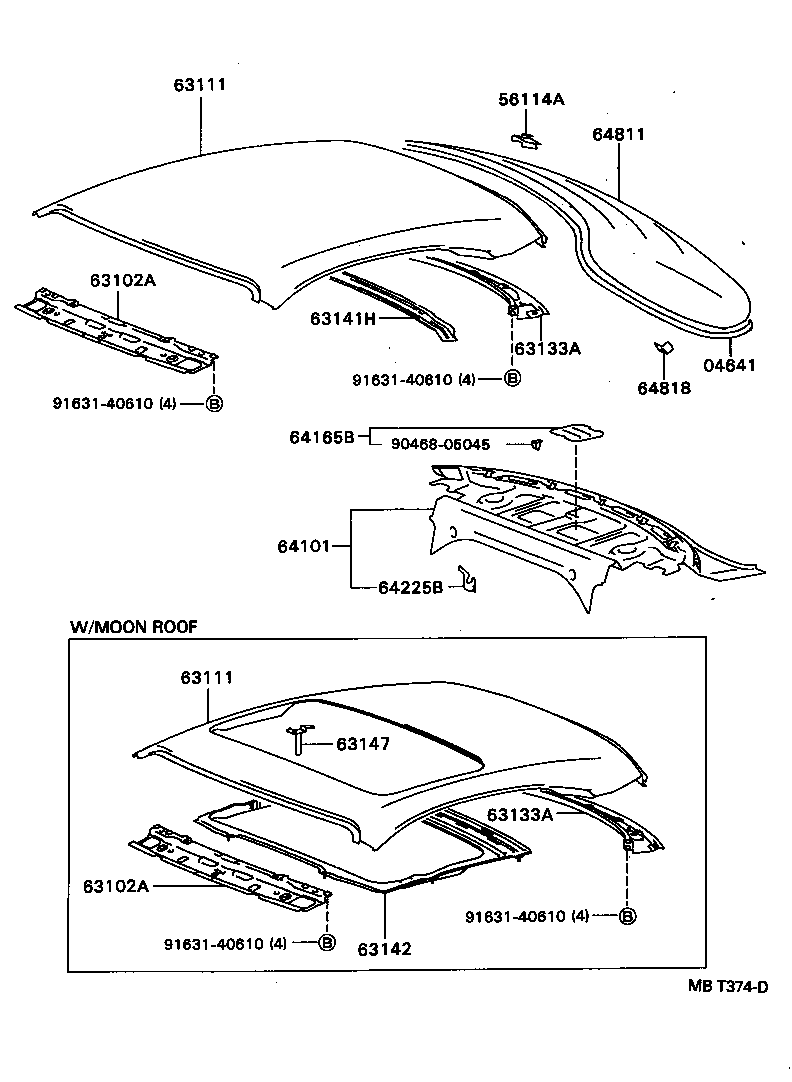

ILLUST NO. 1 OF 2(8909- )

Click highlighted areas on diagram

diagram 04641 56114A 63102A 63102A 63111 63111 63133A 63133A 63141H 63142 63147 64101 64165B 64225B 64811 64818 9046805045 9163140610 9163140610 9163140610 9163140610
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-12010

ST18#

 1
56114A - RETAINER, BACK WINDOW GLASS
56114-20010

ST18#

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20903

ST18#

 1
63102-20904

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20903

ST18#

 1
63102-20904

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
63111 - PANEL, ROOF
63111-20450

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
63111-20370

ST18#

 1
63111 - PANEL, ROOF
63111-20450

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
63111-20370

ST18#

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-20170

ST18#

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-20170

ST18#

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-20110

ST18#

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-20070

ST18#

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63147-20030

ST18#

 2
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20350

ST182,183;ST180,181..FE

ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ)

 1
64101-20420

ST18#

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-20080

ST18#

 2
64811 - GLASS, BACK WINDOW
64811-2B110

ST180,181..FE;ST182,183..TR

*EHTT,厚さ=3.5,ｸﾞﾚｰ,ｱﾘ(ｱﾝﾃﾅ & ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ)

 1
64811-2B060

ST180,181;ST182,183..TR,TRG

*EHT,厚さ=3.5,ｸﾞﾚｰ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ- ｱﾝﾃﾅ)

 1
64811-2B130

ST180,181;ST182,183..TR,TRG

*EHTT,厚さ=3.5,ｸﾞﾚｰ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ- ｱﾝﾃﾅ)

 1
64811-2B100

ST180,181;ST182,183..TR,TRG

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ- ｱﾝﾃﾅ)

 1
64811-20840

ST180,181..FE;ST182,183..TR,TRG

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ)

 1
64811-2B070

ST180,181..FE;ST182,183..TR,TRG

*EHT,厚さ=3.5,ｸﾞﾚｰ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ- ｱﾝﾃﾅ & ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ)

 1
64811-2B120

ST180,181..FE;ST182,183..TR,TRG

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ- ｱﾝﾃﾅ & ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ)

 1
64811-2B160

ST180,181;ST182,183..TR,TRG

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
64818 - SPACER, BACK WINDOW GLASS
64818-22060

ST18#

 9
Common parts
90468-05045
91631-40610

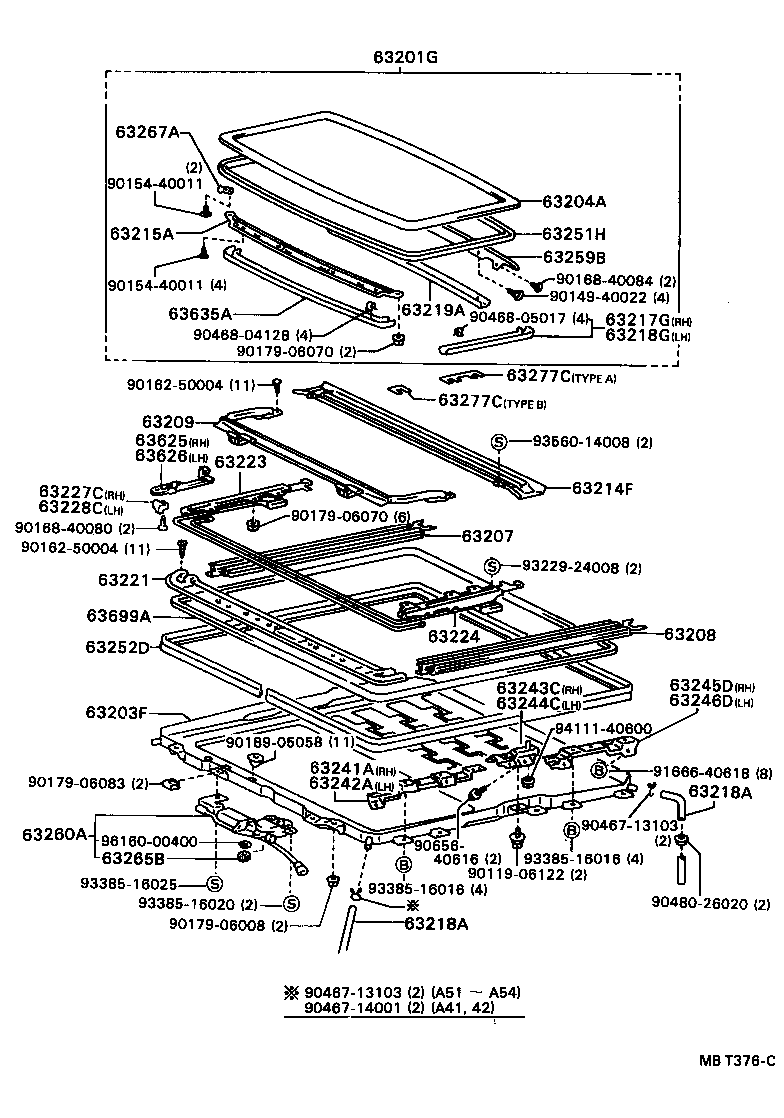

ILLUST NO. 2 OF 2(8909- )

Click highlighted areas on diagram

diagram 63201G 63203F 63204A 63207 63208 63209 63214F 63215A 63217G 63218A 63218A 63218G 63219A 63221 63223 63224 63227C 63228C 63241A 63242A 63243C 63244C 63245D 63246D 63251H 63252D 63259B 63260A 63265B 63267A 63277C 63277C 63625 63626 63635A 63699A 9011906122 9014940022 9015440011 9015440011 9016250004 9016250004 9016840080 9016840084 9017906008 9017906070 9017906070 9017906083 9018905058 9046713103 9046713103 9046714001 9046804128 9046805017 9048026020 9065640616 9166640618 9322924008 9338516016 9338516016 9338516020 9338516025 9356014008 9411140600 9616000400
Part # Description Qty Price
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-20090

ST18#

*SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
63201-20100

ST18#

*SERT,厚さ=4.0,ｸﾞﾚｰ

 1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-20060

ST18#

 1
63204A - PANEL SUB-ASSY, SLIDING ROOF, INNER
63204-20050

ST18#

*SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
63204-20060

ST18#

*SERT,厚さ=4.0,ｸﾞﾚｰ

 1
63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH
63207-20070

ST18#

 1
63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH
63208-20070

ST18#

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-20070

ST18#

 1
63214F - CHANNEL, ROOF DRIP, REAR
63214-20020

ST18#

 1
63215A - MOULDING, ROOF WINDOW, UPPER
63215-20020

ST18#

 2
63217G - GARNISH, SLIDING ROOF SIDE, RH
63217-20030

ST18#

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-20200

ST18#

REAR

 2
63249-10020

ST18#

FRONT

 2
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-20200

ST18#

REAR

 2
63249-10020

ST18#

FRONT

 2
63218G - GARNISH, SLIDING ROOF SIDE, LH
63218-20060

ST18#

 1
63219A - GARNISH, SLIDING ROOF, REAR
63219-20010

ST18#

 2
63221 - CASING, SLIDING ROOF CABLE GUIDE
63221-20060

ST18#

 1
63223 - CABLE, SLIDING ROOF DRIVE, RH
63223-20080

ST18#

 1
63224 - CABLE, SLIDING ROOF DRIVE, LH
63224-20080

ST18#

 1
63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63241-20060

ST18#

 1
63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63242-20030

ST18#

 1
63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH
63243-20070

ST18#

 1
63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH
63244-20070

ST18#

 1
63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH
63245-20030

ST18#

 1
63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH
63246-20030

ST18#

 1
63251H - WEATHERSTRIP, SLIDING ROOF
63251-20070

ST18#

 2
63252D - WEATHERSTRIP, SLIDING ROOF HOUSING
63252-20030

ST18#

 1
63259B - HOLDER, SLIDING ROOF WEATHERSTRIP
63259-20060

ST18#

 2
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-20070

ST18#

 1
63265B - GEAR, SLIDING ROOF DRIVE
63265-20010

ST18#

 1
63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH
63267-20050

ST18#

右側

 2
63268-20030

ST18#

左側

 2
63277C - SHIM, SLIDING ROOF PANEL
63277-20020

ST18#

厚さ=1.0,T=1.0,TYPE A

 1
63277-20030

ST18#

厚さ=1.0,T=1.0,TYPE B

 1
63277-20050

ST18#

厚さ=2.0,T=2.0,TYPE B

 1
63277-20040

ST18#

厚さ=2.0,T=2.0,TYPE A

 1
63277C - SHIM, SLIDING ROOF PANEL
63277-20020

ST18#

厚さ=1.0,T=1.0,TYPE A

 1
63277-20030

ST18#

厚さ=1.0,T=1.0,TYPE B

 1
63277-20050

ST18#

厚さ=2.0,T=2.0,TYPE B

 1
63277-20040

ST18#

厚さ=2.0,T=2.0,TYPE A

 1
63635A - GARNISH, SLIDING ROOF, FRONT
63635-20010

ST18#

 2
63699A - SEAL, SLIDING ROOF GUIDE RAIL
63699-12040

ST18#

 1
Common parts
90119-06122
90149-40022
90154-40011
90162-50004
90168-40080
90168-40084
90179-06008
90179-06070
90179-06083
90189-05058
90467-13103
90467-14001
90468-04128
90468-05017
90480-26020
90656-40616
91666-40618
93229-24008
93385-16016
93385-16020
93385-16025
93560-14008
94111-40600
96160-00400
