ST180-ATPGM (1989)
Toyota Corona Exiv
Production
Sep 1989
-
Aug 1990
Engine
4SFI
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )

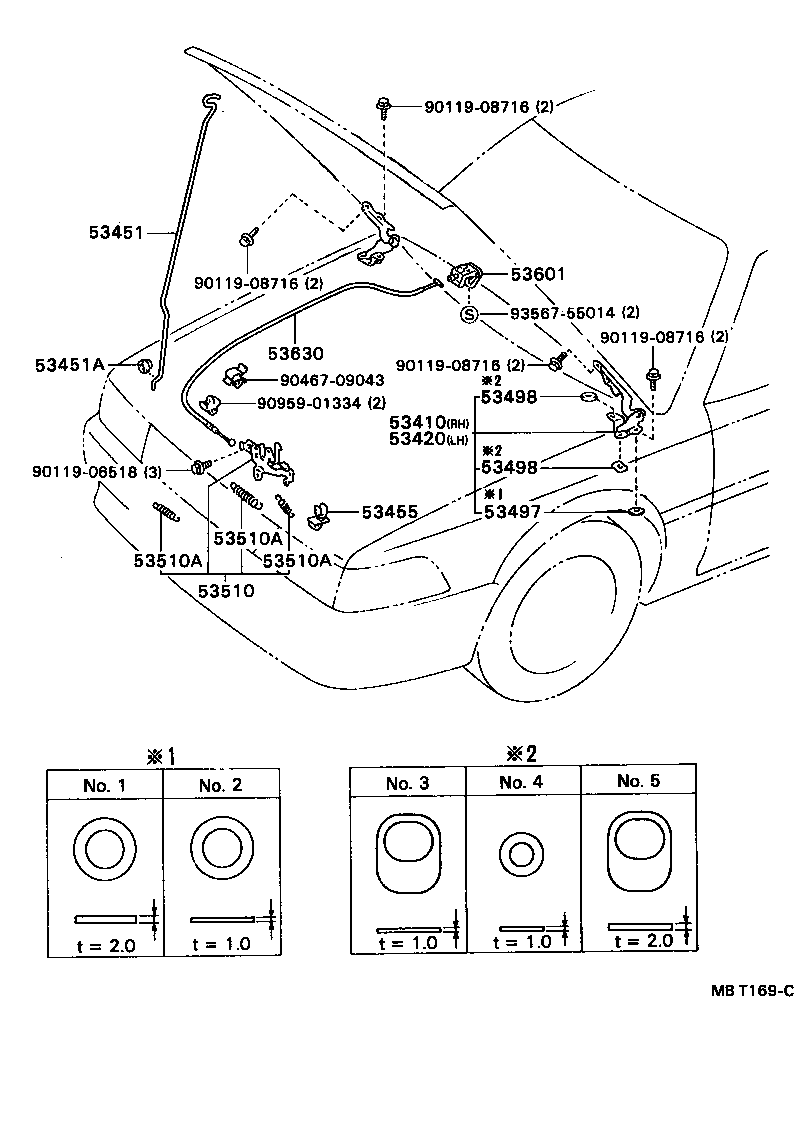

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-20130 |
ST18# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-20130 |
ST18# |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-20110 |
ST18# |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15020 |
ST18# |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-20030 |
ST18# |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50010 |
ST18# |
1 | ||
| 53497-20060 |
ST18# |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-20030 |
ST18# NO.3 |
1 | ||
| 53498-20050 |
ST18# NO.5 |
1 | ||
| 53498-20040 |
ST18# NO.4 |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-20030 |
ST18# NO.3 |
1 | ||
| 53498-20050 |
ST18# NO.5 |
1 | ||
| 53498-20040 |
ST18# NO.4 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-20300 |
ST18# |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09029 |
ST18# 線径=0.9,WD=0.9,CW=26.5,L=39.6 |
1 | ||
| 90506-09039 |
ST18# 線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,CW=21.25,L=34.4 |
1 | ||
| 90506-20061 |
ST18# WD=2.0,CW=17.0,L=59.0 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09029 |
ST18# 線径=0.9,WD=0.9,CW=26.5,L=39.6 |
1 | ||
| 90506-09039 |
ST18# 線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,CW=21.25,L=34.4 |
1 | ||
| 90506-20061 |
ST18# WD=2.0,CW=17.0,L=59.0 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09029 |
ST18# 線径=0.9,WD=0.9,CW=26.5,L=39.6 |
1 | ||
| 90506-09039 |
ST18# 線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,CW=21.25,L=34.4 |
1 | ||
| 90506-20061 |
ST18# WD=2.0,CW=17.0,L=59.0 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-2008103 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 53601-2008112 |
ST182,183;ST180,181..FE MAUVE,TRIM3# |
1 | ||
| 53601-2008116 |
ST18# SABLE,TRIM4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-20301 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06518 | ||||
| 90119-08716 | ||||
| 90467-09043 | ||||
| 90959-01334 | ||||
| 93567-55014 | ||||
