ST180-ATPGM (1989)
Toyota Corona Exiv
Production
Sep 1989
-
Aug 1990
Engine
4SFI
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )ATM

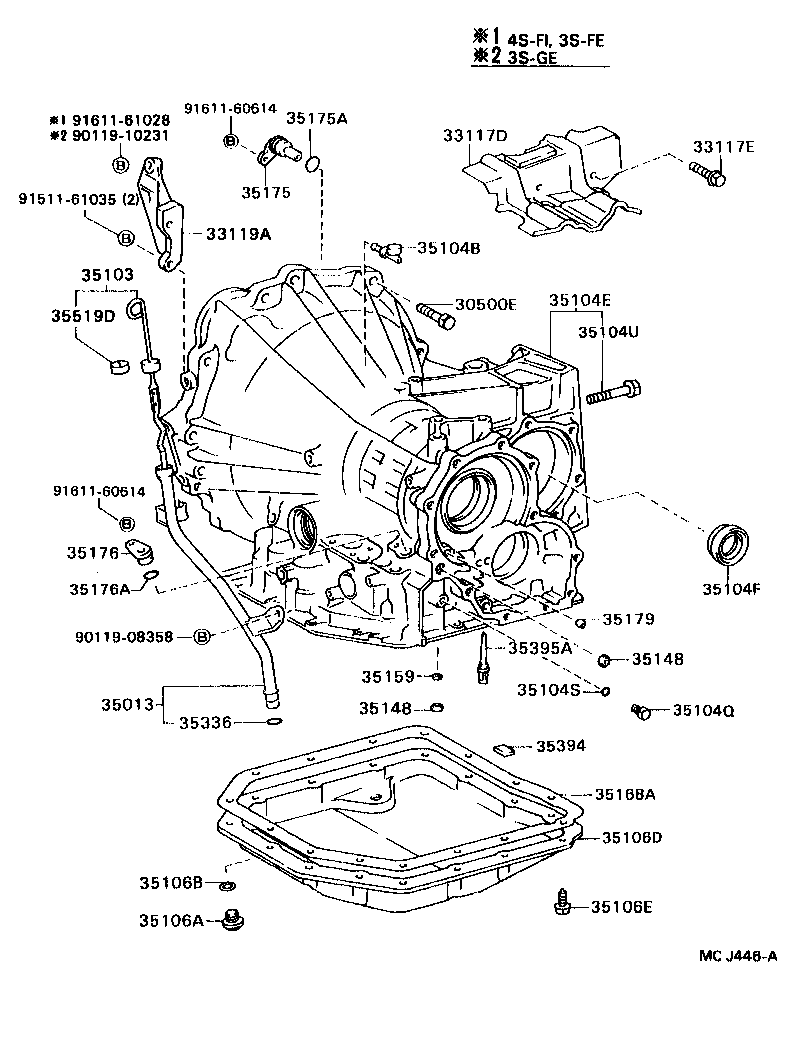

Click highlighted areas on diagram
A140L,A140E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91651-41022 |
ST18#..ATM *10−1.25PX22−22 |
1 | ||
| 90105-10077 |
ST18#..ATM *10−1.25PX43−26 |
1 | ||
| 91619-61245 |
ST18#..ATM *12−1.25PX45−30 |
3 | ||
| 90105-08040 |
ST18#..ATM *8−1.25PX18−15 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-32022 |
ST18#..ATM |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
ST18#..ATM |
2 | ||
| 33119A - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-32020 |
ST18#..ATM..(CI,EFI) |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-20440 |
ST18#..ATM..(CI,TWC) |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-20160 |
ST18#..ATM |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03089 |
ST18#..ATM |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-20073 |
ST18#..ATM |
1 | ||
| 35104F - SEAL, OIL (FOR TRANSAXLE CASE) | ||||
| 90311-35019 |
ST18#..ATM |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ST18#..ATM |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ST18#..ATM |
2 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90105-12052 |
ST18#..ATM *12−1.25PX54−24 |
2 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
ST18#..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-18008 |
ST18#..ATM |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-10021 |
ST18#..ATM |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ST18#..ATM |
15 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
ST18#..ATM |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
ST18#..ATM |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-32011 |
ST18#..ATM |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-32010 |
ST18#..ATM |
1 | ||
| 35175 - CAP, TRANSAXLE CASE, NO.2 | ||||
| 35175-32010 |
ST18#..ATM |
1 | ||
| 35175A - RING, O (FOR TRANSAXLE CASE CAP) | ||||
| 90301-21002 |
ST18#..ATM |
1 | ||
| 35176 - CAP, WIRE HARNESS | ||||
| 35176-32010 |
ST180,181..ATM |
1 | ||
| 35176A - RING, O (FOR WIRE HARNESS CAP) | ||||
| 96721-24013 |
ST180,181..ATM |
1 | ||
| 35179 - GASKET, OVERDRIVE BRAKE | ||||
| 35179-32010 |
ST18#..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
ST18#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
ST18#..ATM |
3 | ||
| 35395A - STRAINER, GOVERNOR OIL | ||||
| 35395-32020 |
ST180,181..ATM |
1 | ||
| Common parts | ||||
| 90119-08358 | ||||
| 90119-10231 | ||||
| 91511-61035 | ||||
| 91611-60614 | ||||
| 91611-61028 | ||||
