ST180-ATPGM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909-9008)4SFI

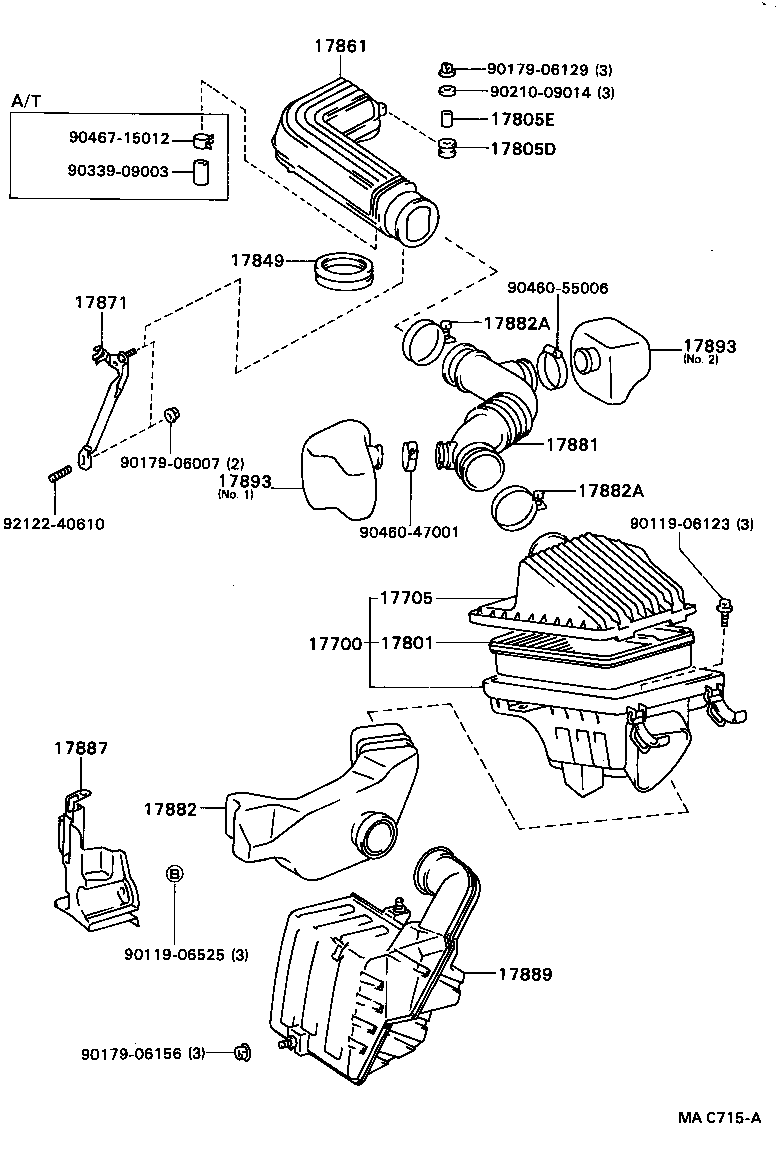

Click highlighted areas on diagram

diagram 17700 17705 17801 17805D 17805E 17849 17861 17871 17881 17882 17882A 17882A 17887 17889 17893 17893 9011906123 9011906525 9017906007 9017906129 9017906156 9021009014 9033909003 9046047001 9046055006 9046715012 9212240610
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74240

4SFI..ST180,181

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17735-74060

4SFI..ST180,181

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-16020

3SFE,4SFI..ST18#

 1
17805D - GROMMET(FOR INTAKE AIR CONNECTOR)
90480-12014

4SFI..ST180,181

 3
17805E - COLLAR(FOR INTAKE AIR CONNECTOR)
90387-06040

4SFI..ST180,181

 3
17849 - GASKET, INTAKE AIR CONNECTOR
17849-74010

4SFI..ST180,181

 1
17861 - CONNECTOR, INTAKE AIR
17861-74010

4SFI..ST180,181

 1
17871 - STAY, AIR CONNECTOR
17871-74010

4SFI..ST180,181

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74270

4SFI..ST180,181

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-74170

3S#,4SF#..ST18#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

3SFE,4SF#..ST18#

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

3SFE,4SF#..ST18#

 2
17887 - COVER, AIR CLEANER HOSE
17887-74010

3S#,4SF#..ST18#

 1
17889 - BOX, AIR CLEANER HOSE, NO.2
17889-74040

3S#,4SF#..ST18#

 1
17893 - RESONATOR, INTAKE AIR
17893-74080

4SFI..ST180,181

NO.2

 1
17893-74070

3SFE,4SF#..ST18#

NO.1

 1
17893 - RESONATOR, INTAKE AIR
17893-74080

4SFI..ST180,181

NO.2

 1
17893-74070

3SFE,4SF#..ST18#

NO.1

 1
Common parts
90119-06123
90119-06525
90179-06007
90179-06129
90179-06156
90210-09014
90339-09003
90460-47001
90460-55006
90467-15012
92122-40610
