ST180-ATPGM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

Click highlighted areas on diagram

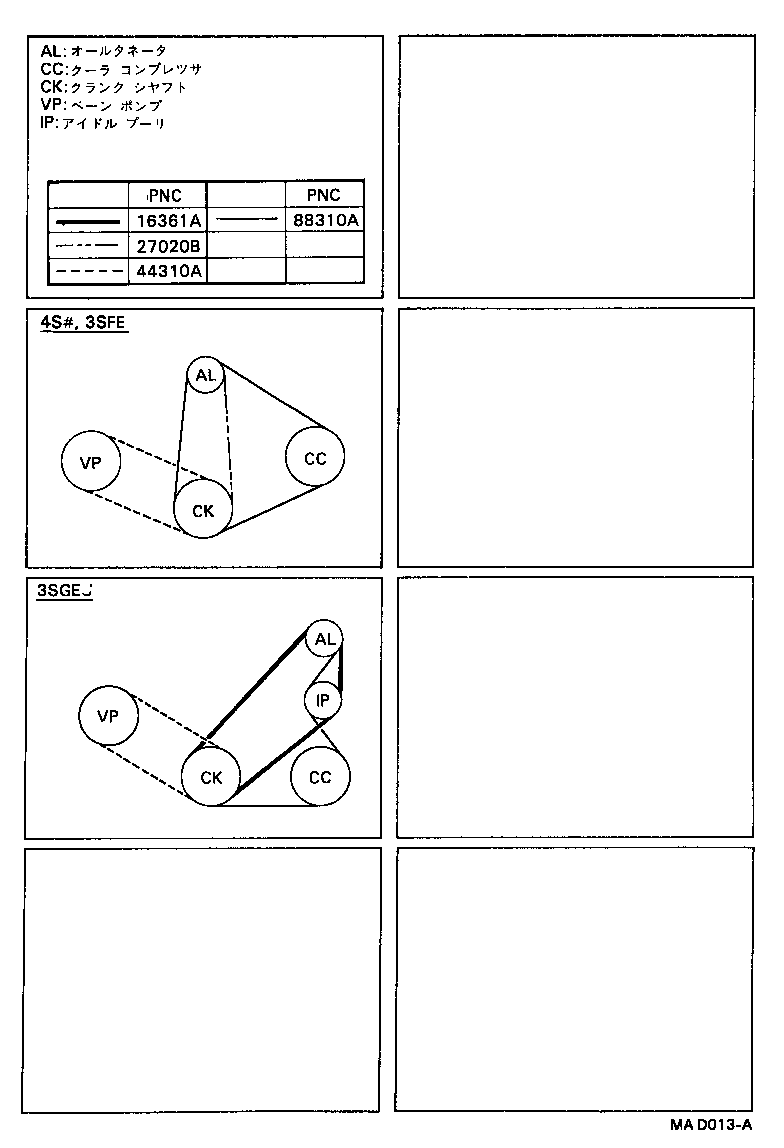

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
90916-02293

3SFE,4SF#..ST18#

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02205

ST18#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-51100

ST18#..CI,EFI

 1
