Toyota Corona exiv ST180 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
CORONA EXIV
ST180-ATPGK (1990)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ST180-ATPGK (1990)

Toyota Corona Exiv

Production Aug 1990 - Sep 1993

Engine 4SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

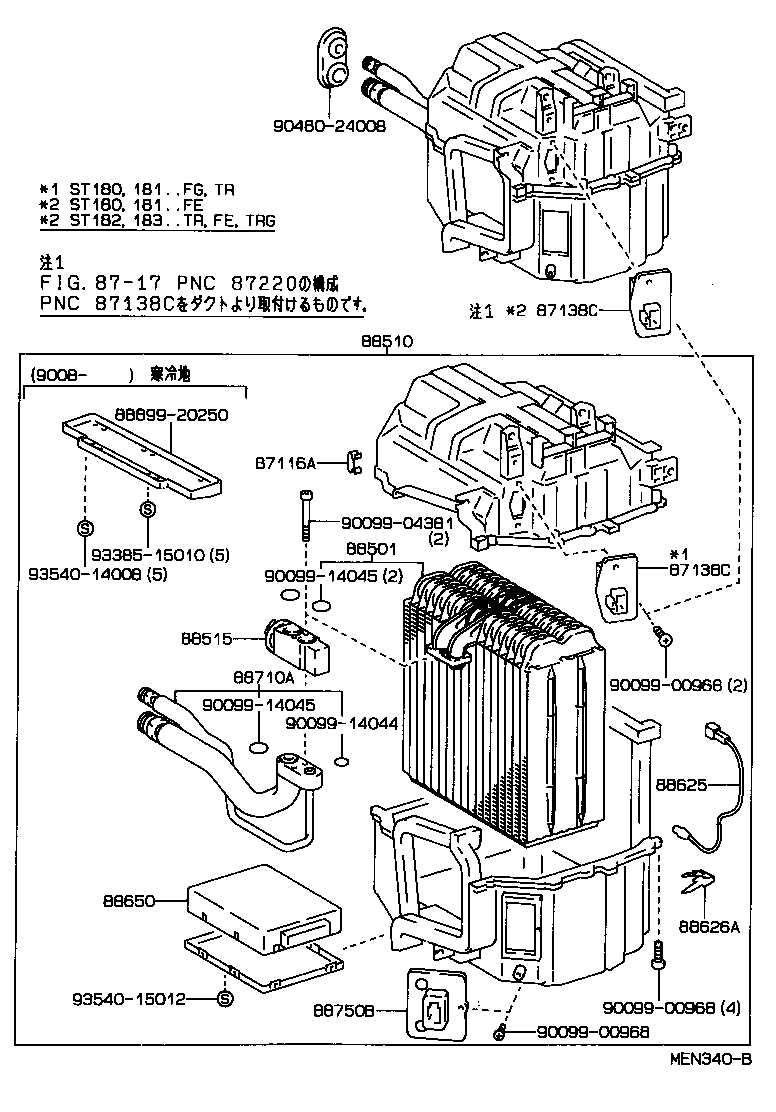

ILLUST NO. 1 OF 2(8909-9108)

Click highlighted areas on diagram

MANUAL

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	ST18#	09/1990 - 08/1991	4
87116-14010	ST18#	09/1989 - 09/1990	4
87116-14010	ST18#	08/1991 - 09/1993	4
87138C - RESISTOR, BLOWER
87138-20190	ST182,183;ST180,181..FE ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
87138-20180	ST182,183;ST180,181..FE	08/1991 - 10/1991	1
87138-20200	ST182,183;ST180,181..FE	10/1991 - 09/1993	1
87138-20180	ST18#	09/1989 - 08/1991	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20260	ST18#	09/1989 - 09/1990	1
88501-20260	ST18#	08/1991 - 09/1993	1
88501-20280	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88501-20280	ST18# ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1993	1
88501-20260	ST18#	09/1990 - 08/1991	1
88510 - UNIT ASSY, COOLER
88510-2B130	ST180,181..FE ｵｰﾄ	09/1989 - 08/1990	1
88510-2B060	ST18#..EFI,TWC ﾏﾆﾕｱﾙ	09/1989 - 08/1991	1
88510-2B190	ST182,183;ST180,181..FE ｵ-ﾄ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88510-2B230	ST182,183;ST180,181..FE ｵ-ﾄ(ｸﾘ-ﾝｴｱﾌｲﾙﾀﾂｷ),ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1993	1
88510-2B120	ST182,183;ST180,181..FE..EFI ｵ-ﾄ	09/1989 - 08/1991	1
88510-2B090	ST180,181 ﾏﾆﾕｱﾙ	09/1989 - 08/1990	1
88510-2B200	ST18# ﾏﾆﾕｱﾙ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88510-2B220	ST182,183;ST180,181..FE	08/1991 - 09/1993	1
88515 - VALVE, COOLER EXPANSION
88515-14061	ST18#	02/1991 - 08/1991	1
88515-14062	ST18#	08/1990 - 09/1990	1
88515-14061	ST182,183;ST180,181..FE	08/1991 - 09/1991	1
88515-14060	ST18#	09/1989 - 08/1990	1
88515-14062	ST18#	09/1991 - 09/1993	1
88515-14062	ST18#	09/1990 - 02/1991	1
88515-14062	ST182,183;ST180,181..FE ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1991	1
88625 - THERMISTOR, COOLER, NO.1
88625-20280	ST18# ｵ-ﾄ	09/1989 - 08/1991	1
88625-60060	ST18# ｵ-ﾄ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88625-20350	ST18#	08/1991 - 09/1993	1
88625-20270	ST18# ﾏﾆﾕｱﾙ	09/1989 - 08/1991	1
88625-60050	ST18# ﾏﾆﾕｱﾙ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	08/1991 - 09/1993	2
88626-28010	ST18#	09/1990 - 08/1991	1
88626-28010	ST18#	09/1989 - 09/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#..EFI,TWC	09/1989 - 09/1990	1
88650-20670	ST180,181	09/1989 - 08/1990	1
88650-2B070	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88650-2B150	ST18# ｸﾘ-ﾝｴｱﾌｲﾙﾀﾂｷ	08/1991 - 09/1993	1
88650-20660	ST18#	09/1990 - 08/1991	1
88650-2B140	ST18#	08/1991 - 09/1993	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20190	ST18#	09/1989 - 09/1993	1
88710-20270	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1989 - 09/1993	1
Common parts
88899-20250
90099-00968
90099-04381
90099-14044
90099-14045
90480-24008
93385-15010
93540-14008
93540-15012

ILLUST NO. 1 OF 2(8909-9108)

Click highlighted areas on diagram

AUTO

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	ST18#	09/1990 - 08/1991	4
87116-14010	ST18#	09/1989 - 09/1990	4
87116-14010	ST18#	08/1991 - 09/1993	4
87138C - RESISTOR, BLOWER
87138-20190	ST182,183;ST180,181..FE ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
87138-20180	ST182,183;ST180,181..FE	08/1991 - 10/1991	1
87138-20200	ST182,183;ST180,181..FE	10/1991 - 09/1993	1
87138-20180	ST18#	09/1989 - 08/1991	1
87138C - RESISTOR, BLOWER
87138-20190	ST182,183;ST180,181..FE ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
87138-20180	ST182,183;ST180,181..FE	08/1991 - 10/1991	1
87138-20200	ST182,183;ST180,181..FE	10/1991 - 09/1993	1
87138-20180	ST18#	09/1989 - 08/1991	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20260	ST18#	09/1989 - 09/1990	1
88501-20260	ST18#	08/1991 - 09/1993	1
88501-20280	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88501-20280	ST18# ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1993	1
88501-20260	ST18#	09/1990 - 08/1991	1
88510 - UNIT ASSY, COOLER
88510-2B130	ST180,181..FE ｵｰﾄ	09/1989 - 08/1990	1
88510-2B060	ST18#..EFI,TWC ﾏﾆﾕｱﾙ	09/1989 - 08/1991	1
88510-2B190	ST182,183;ST180,181..FE ｵ-ﾄ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88510-2B230	ST182,183;ST180,181..FE ｵ-ﾄ(ｸﾘ-ﾝｴｱﾌｲﾙﾀﾂｷ),ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1993	1
88510-2B120	ST182,183;ST180,181..FE..EFI ｵ-ﾄ	09/1989 - 08/1991	1
88510-2B090	ST180,181 ﾏﾆﾕｱﾙ	09/1989 - 08/1990	1
88510-2B200	ST18# ﾏﾆﾕｱﾙ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88510-2B220	ST182,183;ST180,181..FE	08/1991 - 09/1993	1
88515 - VALVE, COOLER EXPANSION
88515-14061	ST18#	02/1991 - 08/1991	1
88515-14062	ST18#	08/1990 - 09/1990	1
88515-14061	ST182,183;ST180,181..FE	08/1991 - 09/1991	1
88515-14060	ST18#	09/1989 - 08/1990	1
88515-14062	ST18#	09/1991 - 09/1993	1
88515-14062	ST18#	09/1990 - 02/1991	1
88515-14062	ST182,183;ST180,181..FE ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1991	1
88625 - THERMISTOR, COOLER, NO.1
88625-20280	ST18# ｵ-ﾄ	09/1989 - 08/1991	1
88625-60060	ST18# ｵ-ﾄ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88625-20350	ST18#	08/1991 - 09/1993	1
88625-20270	ST18# ﾏﾆﾕｱﾙ	09/1989 - 08/1991	1
88625-60050	ST18# ﾏﾆﾕｱﾙ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	08/1991 - 09/1993	2
88626-28010	ST18#	09/1990 - 08/1991	1
88626-28010	ST18#	09/1989 - 09/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#..EFI,TWC	09/1989 - 09/1990	1
88650-20670	ST180,181	09/1989 - 08/1990	1
88650-2B070	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88650-2B150	ST18# ｸﾘ-ﾝｴｱﾌｲﾙﾀﾂｷ	08/1991 - 09/1993	1
88650-20660	ST18#	09/1990 - 08/1991	1
88650-2B140	ST18#	08/1991 - 09/1993	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20190	ST18#	09/1989 - 09/1993	1
88710-20270	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1989 - 09/1993	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-20010	ST18#	08/1991 - 09/1993	1
88750-20010	ST18#	09/1989 - 09/1990	1
88750-20010	ST18#	09/1990 - 08/1991	1
Common parts
88899-20250
90099-00968
90099-04381
90099-14044
90099-14045
90480-24008
93385-15010
93540-14008
93540-15012

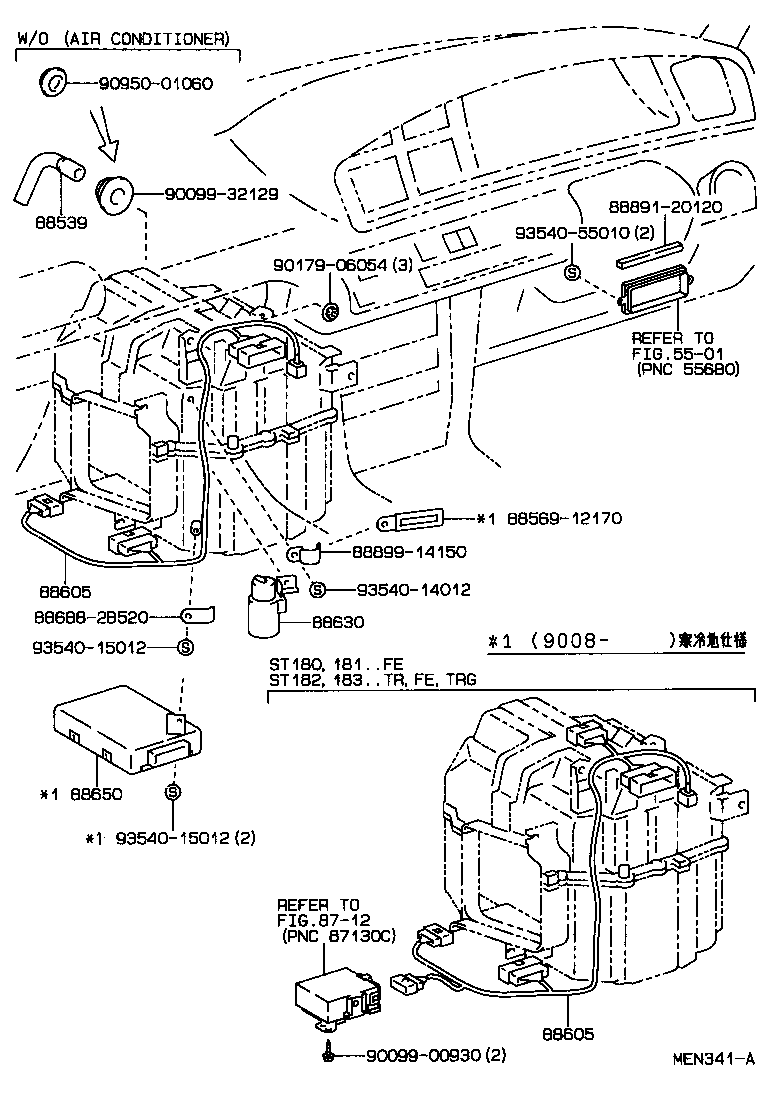

ILLUST NO. 2 OF 2(8909-9108)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110	ST18#	09/1989 - 09/1990	1
88539-22110	ST18#	09/1990 - 08/1991	1
88539-22110	ST18#	08/1991 - 09/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D060	ST180,181..FE;ST182,183..EFI ｵ-ﾄ	08/1990 - 08/1991	1
88605-2B690	ST180,181..FE ﾏﾆﾕｱﾙ	09/1989 - 08/1990	1
88605-2B700	ST180,181..FE ｵ-ﾄ	09/1989 - 08/1990	1
88605-2D070	ST180,181..FE;ST182,183..EFI ﾏﾆﾕｱﾙ	08/1990 - 08/1991	1
88605-2D061	ST182,183;ST180,181..FE	08/1991 - 09/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D060	ST180,181..FE;ST182,183..EFI ｵ-ﾄ	08/1990 - 08/1991	1
88605-2B690	ST180,181..FE ﾏﾆﾕｱﾙ	09/1989 - 08/1990	1
88605-2B700	ST180,181..FE ｵ-ﾄ	09/1989 - 08/1990	1
88605-2D070	ST180,181..FE;ST182,183..EFI ﾏﾆﾕｱﾙ	08/1990 - 08/1991	1
88605-2D061	ST182,183;ST180,181..FE	08/1991 - 09/1993	1
88630 - RELAY ASSY, COOLER
88630-20230	ST18#	08/1991 - 09/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#..EFI,TWC	09/1989 - 09/1990	1
88650-20670	ST180,181	09/1989 - 08/1990	1
88650-2B070	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88650-2B150	ST18# ｸﾘ-ﾝｴｱﾌｲﾙﾀﾂｷ	08/1991 - 09/1993	1
88650-20660	ST18#	09/1990 - 08/1991	1
88650-2B140	ST18#	08/1991 - 09/1993	1
Common parts
88569-12170
88688-2B520
88891-20120
88899-14150
90099-00930
90099-32129
90179-06054
90950-01060
93540-14012
93540-15012
93540-55010
Linked diagrams
5501
8712

(9108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	ST18#	09/1990 - 08/1991	4
87116-14010	ST18#	09/1989 - 09/1990	4
87116-14010	ST18#	08/1991 - 09/1993	4
87138C - RESISTOR, BLOWER
87138-20190	ST182,183;ST180,181..FE ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
87138-20180	ST182,183;ST180,181..FE	08/1991 - 10/1991	1
87138-20200	ST182,183;ST180,181..FE	10/1991 - 09/1993	1
87138-20180	ST18#	09/1989 - 08/1991	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20260	ST18#	09/1989 - 09/1990	1
88501-20260	ST18#	08/1991 - 09/1993	1
88501-20280	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88501-20280	ST18# ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1993	1
88501-20260	ST18#	09/1990 - 08/1991	1
88510 - UNIT ASSY, COOLER
88510-2B130	ST180,181..FE ｵｰﾄ	09/1989 - 08/1990	1
88510-2B060	ST18#..EFI,TWC ﾏﾆﾕｱﾙ	09/1989 - 08/1991	1
88510-2B190	ST182,183;ST180,181..FE ｵ-ﾄ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88510-2B230	ST182,183;ST180,181..FE ｵ-ﾄ(ｸﾘ-ﾝｴｱﾌｲﾙﾀﾂｷ),ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1993	1
88510-2B120	ST182,183;ST180,181..FE..EFI ｵ-ﾄ	09/1989 - 08/1991	1
88510-2B090	ST180,181 ﾏﾆﾕｱﾙ	09/1989 - 08/1990	1
88510-2B200	ST18# ﾏﾆﾕｱﾙ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88510-2B220	ST182,183;ST180,181..FE	08/1991 - 09/1993	1
88515 - VALVE, COOLER EXPANSION
88515-14061	ST18#	02/1991 - 08/1991	1
88515-14062	ST18#	08/1990 - 09/1990	1
88515-14061	ST182,183;ST180,181..FE	08/1991 - 09/1991	1
88515-14060	ST18#	09/1989 - 08/1990	1
88515-14062	ST18#	09/1991 - 09/1993	1
88515-14062	ST18#	09/1990 - 02/1991	1
88515-14062	ST182,183;ST180,181..FE ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1991	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110	ST18#	09/1989 - 09/1990	1
88539-22110	ST18#	09/1990 - 08/1991	1
88539-22110	ST18#	08/1991 - 09/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D060	ST180,181..FE;ST182,183..EFI ｵ-ﾄ	08/1990 - 08/1991	1
88605-2B690	ST180,181..FE ﾏﾆﾕｱﾙ	09/1989 - 08/1990	1
88605-2B700	ST180,181..FE ｵ-ﾄ	09/1989 - 08/1990	1
88605-2D070	ST180,181..FE;ST182,183..EFI ﾏﾆﾕｱﾙ	08/1990 - 08/1991	1
88605-2D061	ST182,183;ST180,181..FE	08/1991 - 09/1993	1
88625 - THERMISTOR, COOLER, NO.1
88625-20280	ST18# ｵ-ﾄ	09/1989 - 08/1991	1
88625-60060	ST18# ｵ-ﾄ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88625-20350	ST18#	08/1991 - 09/1993	1
88625-20270	ST18# ﾏﾆﾕｱﾙ	09/1989 - 08/1991	1
88625-60050	ST18# ﾏﾆﾕｱﾙ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88625A - THERMISTOR, COOLER NO.2
88625-20340	ST18#	08/1991 - 09/1993	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	08/1991 - 09/1993	2
88626-28010	ST18#	09/1990 - 08/1991	1
88626-28010	ST18#	09/1989 - 09/1990	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	08/1991 - 09/1993	2
88626-28010	ST18#	09/1990 - 08/1991	1
88626-28010	ST18#	09/1989 - 09/1990	1
88630 - RELAY ASSY, COOLER
88630-20230	ST18#	08/1991 - 09/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#..EFI,TWC	09/1989 - 09/1990	1
88650-20670	ST180,181	09/1989 - 08/1990	1
88650-2B070	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88650-2B150	ST18# ｸﾘ-ﾝｴｱﾌｲﾙﾀﾂｷ	08/1991 - 09/1993	1
88650-20660	ST18#	09/1990 - 08/1991	1
88650-2B140	ST18#	08/1991 - 09/1993	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20190	ST18#	09/1989 - 09/1993	1
88710-20270	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1989 - 09/1993	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-20010	ST18#	08/1991 - 09/1993	1
88750-20010	ST18#	09/1989 - 09/1990	1
88750-20010	ST18#	09/1990 - 08/1991	1
Common parts
88688-2B520
88718-2B310
90099-00968
90099-04381
90099-14044
90099-14045
90099-35027
90159-60480
90179-06239
90480-24008
90480-26004
93540-15012

(9108- )

Click highlighted areas on diagram

ｶﾝﾚｲﾁ(ｸﾞﾘ-ﾝｴｱﾌｲﾙﾀﾂｷ)

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	ST18#	09/1990 - 08/1991	4
87116-14010	ST18#	09/1989 - 09/1990	4
87116-14010	ST18#	08/1991 - 09/1993	4
87138C - RESISTOR, BLOWER
87138-20190	ST182,183;ST180,181..FE ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
87138-20180	ST182,183;ST180,181..FE	08/1991 - 10/1991	1
87138-20200	ST182,183;ST180,181..FE	10/1991 - 09/1993	1
87138-20180	ST18#	09/1989 - 08/1991	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20260	ST18#	09/1989 - 09/1990	1
88501-20260	ST18#	08/1991 - 09/1993	1
88501-20280	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88501-20280	ST18# ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1993	1
88501-20260	ST18#	09/1990 - 08/1991	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20010	ST18#	08/1991 - 09/1993	1
88510 - UNIT ASSY, COOLER
88510-2B130	ST180,181..FE ｵｰﾄ	09/1989 - 08/1990	1
88510-2B060	ST18#..EFI,TWC ﾏﾆﾕｱﾙ	09/1989 - 08/1991	1
88510-2B190	ST182,183;ST180,181..FE ｵ-ﾄ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88510-2B230	ST182,183;ST180,181..FE ｵ-ﾄ(ｸﾘ-ﾝｴｱﾌｲﾙﾀﾂｷ),ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1993	1
88510-2B120	ST182,183;ST180,181..FE..EFI ｵ-ﾄ	09/1989 - 08/1991	1
88510-2B090	ST180,181 ﾏﾆﾕｱﾙ	09/1989 - 08/1990	1
88510-2B200	ST18# ﾏﾆﾕｱﾙ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88510-2B220	ST182,183;ST180,181..FE	08/1991 - 09/1993	1
88515 - VALVE, COOLER EXPANSION
88515-14061	ST18#	02/1991 - 08/1991	1
88515-14062	ST18#	08/1990 - 09/1990	1
88515-14061	ST182,183;ST180,181..FE	08/1991 - 09/1991	1
88515-14060	ST18#	09/1989 - 08/1990	1
88515-14062	ST18#	09/1991 - 09/1993	1
88515-14062	ST18#	09/1990 - 02/1991	1
88515-14062	ST182,183;ST180,181..FE ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 09/1991	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110	ST18#	09/1989 - 09/1990	1
88539-22110	ST18#	09/1990 - 08/1991	1
88539-22110	ST18#	08/1991 - 09/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D060	ST180,181..FE;ST182,183..EFI ｵ-ﾄ	08/1990 - 08/1991	1
88605-2B690	ST180,181..FE ﾏﾆﾕｱﾙ	09/1989 - 08/1990	1
88605-2B700	ST180,181..FE ｵ-ﾄ	09/1989 - 08/1990	1
88605-2D070	ST180,181..FE;ST182,183..EFI ﾏﾆﾕｱﾙ	08/1990 - 08/1991	1
88605-2D061	ST182,183;ST180,181..FE	08/1991 - 09/1993	1
88625 - THERMISTOR, COOLER, NO.1
88625-20280	ST18# ｵ-ﾄ	09/1989 - 08/1991	1
88625-60060	ST18# ｵ-ﾄ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88625-20350	ST18#	08/1991 - 09/1993	1
88625-20270	ST18# ﾏﾆﾕｱﾙ	09/1989 - 08/1991	1
88625-60050	ST18# ﾏﾆﾕｱﾙ,ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88625A - THERMISTOR, COOLER NO.2
88625-20340	ST18#	08/1991 - 09/1993	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	08/1991 - 09/1993	2
88626-28010	ST18#	09/1990 - 08/1991	1
88626-28010	ST18#	09/1989 - 09/1990	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	08/1991 - 09/1993	2
88626-28010	ST18#	09/1990 - 08/1991	1
88626-28010	ST18#	09/1989 - 09/1990	1
88630 - RELAY ASSY, COOLER
88630-20230	ST18#	08/1991 - 09/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#..EFI,TWC	09/1989 - 09/1990	1
88650-20670	ST180,181	09/1989 - 08/1990	1
88650-2B070	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 08/1991	1
88650-2B150	ST18# ｸﾘ-ﾝｴｱﾌｲﾙﾀﾂｷ	08/1991 - 09/1993	1
88650-20660	ST18#	09/1990 - 08/1991	1
88650-2B140	ST18#	08/1991 - 09/1993	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20190	ST18#	09/1989 - 09/1993	1
88710-20270	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1989 - 09/1993	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-20010	ST18#	08/1991 - 09/1993	1
88750-20010	ST18#	09/1989 - 09/1990	1
88750-20010	ST18#	09/1990 - 08/1991	1
Common parts
88688-2B520
88718-2B310
88899-20250
90099-00968
90099-04381
90099-14044
90099-14045
90099-35027
90159-60480
90179-06239
90480-24008
90480-26004
93385-15010
93540-14008
93540-15012

ST180-ATPGK (1990)

ILLUST NO. 1 OF 2(8909-9108)

ILLUST NO. 1 OF 2(8909-9108)

ILLUST NO. 2 OF 2(8909-9108)

(9108- )

(9108- )

Part Price Details
