ST180-ATPEM (1989)
Toyota Corona Exiv
ILLUST NO. 1 OF 9(8909- )
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2D140 |
ST180,182 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B200 |
ST18# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32420 |
ST18# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-2B200 |
ST18# |
1 | ||
| 85999U - BRACKET, RELAY BLOCK | ||||
| 85999-20360 |
ST18# |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 82711-2B480 | ||||
| 90119-06311 | ||||
| 90119-06390 | ||||
| Linked diagrams | ||||
| 8401 | ||||

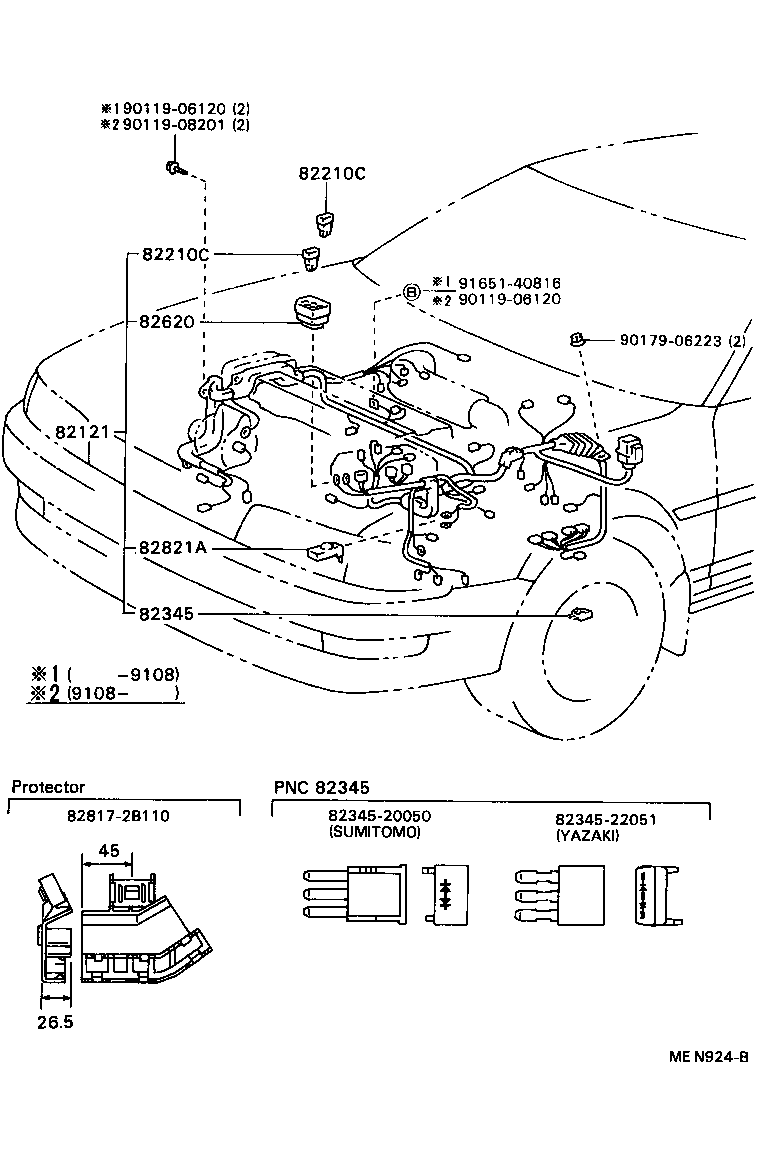

ILLUST NO. 2 OF 9(8909- )ST180,181
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2B600 |
ST180,181..ATM ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ |
1 | ||
| 82121-2B580 |
ST180,181..ATM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
ST18# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08246 |
ST18# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08188 |
ST18# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
ST18# 40A,ﾒｽ端子,緑 |
2 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
ST18# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08246 |
ST18# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08188 |
ST18# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
ST18# 40A,ﾒｽ端子,緑 |
2 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
ST18# COWL WIRE,TYPE A |
1 | ||
| 82345-22051 |
ST180,181..ATM ENGINE WIRE,YAZAKI |
1 | ||
| 82345-20050 |
ST180,181..ATM ENGINE WIRE,SUMITOMO |
1 | ||
| 82345-32020 |
ST18# COWL WIRE,TYPE D |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
ST18# COWL WIRE,TYPE A |
1 | ||
| 82345-22051 |
ST180,181..ATM ENGINE WIRE,YAZAKI |
1 | ||
| 82345-20050 |
ST180,181..ATM ENGINE WIRE,SUMITOMO |
1 | ||
| 82345-32020 |
ST18# COWL WIRE,TYPE D |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20140 |
ST18# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-20160 |
ST18# |
1 | ||
| Common parts | ||||
| 82345-20050 | ||||
| 82345-22051 | ||||
| 82817-2B110 | ||||
| 90119-06120 | ||||
| 90119-08201 | ||||
| 90179-06223 | ||||
| 91651-40816 | ||||
ILLUST NO. 3 OF 9(8909- )
ENGINE WIRE CLAMPS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-24420 | ||||
| 82711-2B210 | ||||
| 82711-2B730 | ||||
| 82711-2B770 | ||||
| 82711-32650 | ||||
| 82711-32780 | ||||
| 82711-35060 | ||||
| 82715-20010 | ||||
| 82715-20020 | ||||
| 82715-20030 | ||||
| 82715-20040 | ||||
| 82715-20110 | ||||
| 82715-32170 | ||||
| 90119-06120 | ||||
| 90119-06311 | ||||
| 90179-06223 | ||||
| 91651-40816 | ||||
ILLUST NO. 4 OF 9(8909- )
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2H710 |
ST180..FG |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
ST18# COWL WIRE,TYPE A |
1 | ||
| 82345-22051 |
ST180,181..ATM ENGINE WIRE,YAZAKI |
1 | ||
| 82345-20050 |
ST180,181..ATM ENGINE WIRE,SUMITOMO |
1 | ||
| 82345-32020 |
ST18# COWL WIRE,TYPE D |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
ST18# COWL WIRE,TYPE A |
1 | ||
| 82345-22051 |
ST180,181..ATM ENGINE WIRE,YAZAKI |
1 | ||
| 82345-20050 |
ST180,181..ATM ENGINE WIRE,SUMITOMO |
1 | ||
| 82345-32020 |
ST18# COWL WIRE,TYPE D |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
ST18# COWL WIRE,TYPE A |
1 | ||
| 82345-22051 |
ST180,181..ATM ENGINE WIRE,YAZAKI |
1 | ||
| 82345-20050 |
ST180,181..ATM ENGINE WIRE,SUMITOMO |
1 | ||
| 82345-32020 |
ST18# COWL WIRE,TYPE D |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-32420 |
ST18# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20040 |
ST180,181..FG,TR FLOOR WIRE |
1 | ||
| 82824-20060 |
ST18# COWL WIRE |
1 | ||
| Common parts | ||||
| 82711-24070 | ||||
| 82711-2B480 | ||||
| 82715-20090 | ||||
| 90119-06005 | ||||
| 90179-06097 | ||||
| 90467-05050 | ||||
| 90950-01061 | ||||
| 91611-60614 | ||||
| 91621-60614 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 9(8909- )
DOOR,ROOF,LUGGAGE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-2B400 |
ST18#..FG,TR ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ) |
1 | ||
| 82151-2B380 |
ST18#..FG,TR |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2B250 |
ST18#..FG,TR |
1 | ||
| 82152-2B270 |
ST18#..FG,TR ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-20240 |
ST18#..FG,TR |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-20240 |
ST18#..FG,TR |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20600 |
ST182,183..EFI;ST180,181..FG,TR;ST180,181..FE..CI |
1 | ||
| 82171-20620 |
ST18# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20590 |
ST18# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-20130 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06390 | ||||
ILLUST NO. 7 OF 9(8909- )
FLOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2D790 |
ST180,182 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-20130 |
ST18# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-2B320 |
ST18# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-2B330 |
ST18# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20040 |
ST180,181..FG,TR FLOOR WIRE |
1 | ||
| 82824-20060 |
ST18# COWL WIRE |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90119-06005 | ||||
| 90119-06390 | ||||
ILLUST NO. 8 OF 9(8909- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
ST18# FENDER RH |
1 | ||
| 90980-07264 |
ST18# TRANSMISSION |
1 | ||
| 90980-07280 |
ST18#..CI,EFI ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
ST18# FENDER RH |
1 | ||
| 90980-07264 |
ST18# TRANSMISSION |
1 | ||
| 90980-07280 |
ST18#..CI,EFI ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
ST18# FENDER RH |
1 | ||
| 90980-07264 |
ST18# TRANSMISSION |
1 | ||
| 90980-07280 |
ST18#..CI,EFI ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
ST18# FENDER RH |
1 | ||
| 90980-07264 |
ST18# TRANSMISSION |
1 | ||
| 90980-07280 |
ST18#..CI,EFI ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
ST18# FENDER RH |
1 | ||
| 90980-07264 |
ST18# TRANSMISSION |
1 | ||
| 90980-07280 |
ST18#..CI,EFI ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
ST18# FENDER RH |
1 | ||
| 90980-07264 |
ST18# TRANSMISSION |
1 | ||
| 90980-07280 |
ST18#..CI,EFI ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
ST18# FENDER RH |
1 | ||
| 90980-07264 |
ST18# TRANSMISSION |
1 | ||
| 90980-07280 |
ST18#..CI,EFI ENGINE HANGER |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90119-06005 | ||||
ILLUST NO. 9 OF 9(8909-9108)
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20020 |
ST18# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20080 |
ST18# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-10020 |
ST18# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
ST18# |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-20040 |
ST18# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20080 |
ST18# MAIN |
1 | ||
| 82991-20090 |
ST18# 4WS |
1 | ||
| Common parts | ||||
| 82981-20020 | ||||
| 82982-20080 | ||||
| 82983-10020 | ||||
| 82984-20010 | ||||
| 82987-20040 | ||||
| 82991-20080 | ||||
ILLUST NO. 5 OF 9(8909- )
COWL WIRE DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-32010 | ||||
ILLUST NO. 9 OF 9(8909-9108)
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20080 |
ST18# MAIN |
1 | ||
| 82991-20090 |
ST18# 4WS |
1 | ||
| Common parts | ||||
| 82991-20090 | ||||
