ST180-ATPEM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

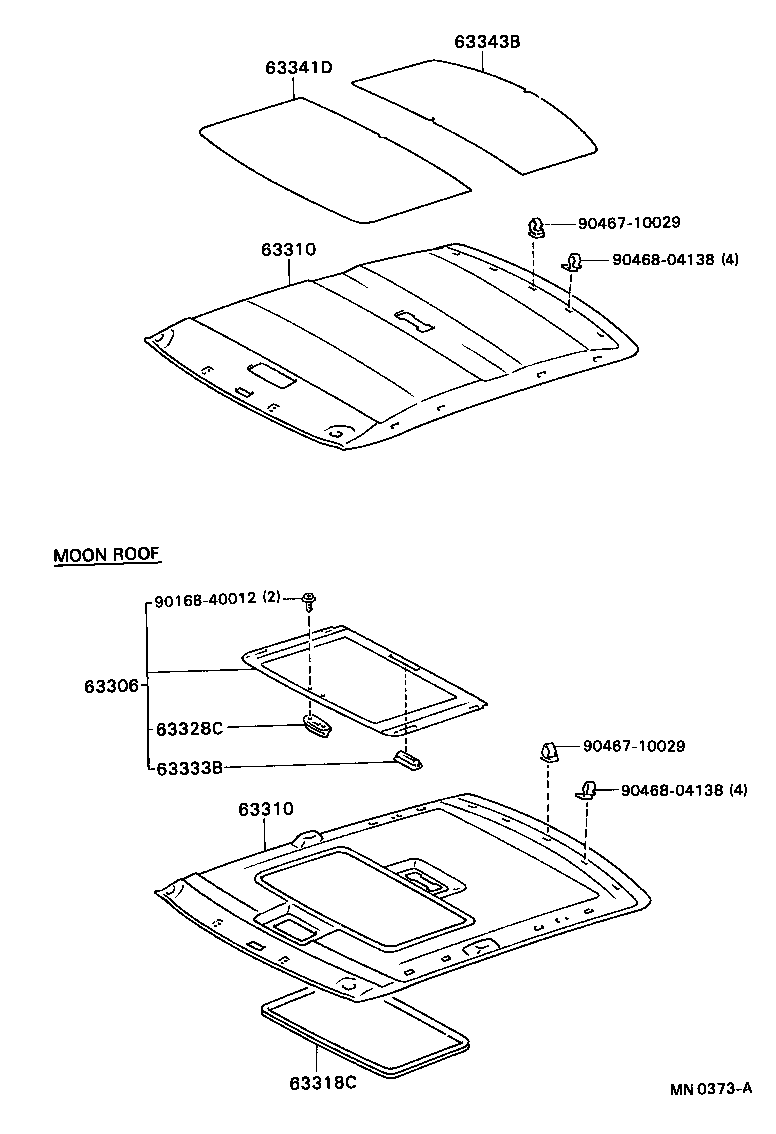

Click highlighted areas on diagram

diagram 63306 63310 63310 63318C 63328C 63333B 63341D 63343B 9016840012 9046710029 9046710029 9046804138 9046804138
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-2004003

ST18#

SHADOW GRAY,TRIM1#

 1
63306-2004006

ST18#

SABLE,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-2088006

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
63310-2087006

ST18#

SABLE,TRIM4#

 1
63310-2087003

ST18#

SHADOW GRAY,TRIM1#

 1
63310-2088003

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-2088006

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
63310-2087006

ST18#

SABLE,TRIM4#

 1
63310-2087003

ST18#

SHADOW GRAY,TRIM1#

 1
63310-2088003

ST18#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-2009003

ST18#

SHADOW GRAY,TRIM1#

 1
63318-2009006

ST18#

SABLE,TRIM4#

 1
63328C - KNOB, SUNSHADE TRIM
63328-2201006

ST18#

LIGHT SABLE,TRIM4#

 1
63328-2201013

ST18#

SHADOW GRAY,TRIM1#

 1
63333B - PROTECTOR, SUNSHADE TRIM
63333-30010

ST18#

 1
63341D - PAD, ROOF SILENCER, FRONT
63341-20190

ST18#

 1
63343B - PAD, ROOF SILENCER, REAR
63343-20060

ST18#

 1
Common parts
90168-40012
90467-10029
90468-04138
