ST180-ATMGM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

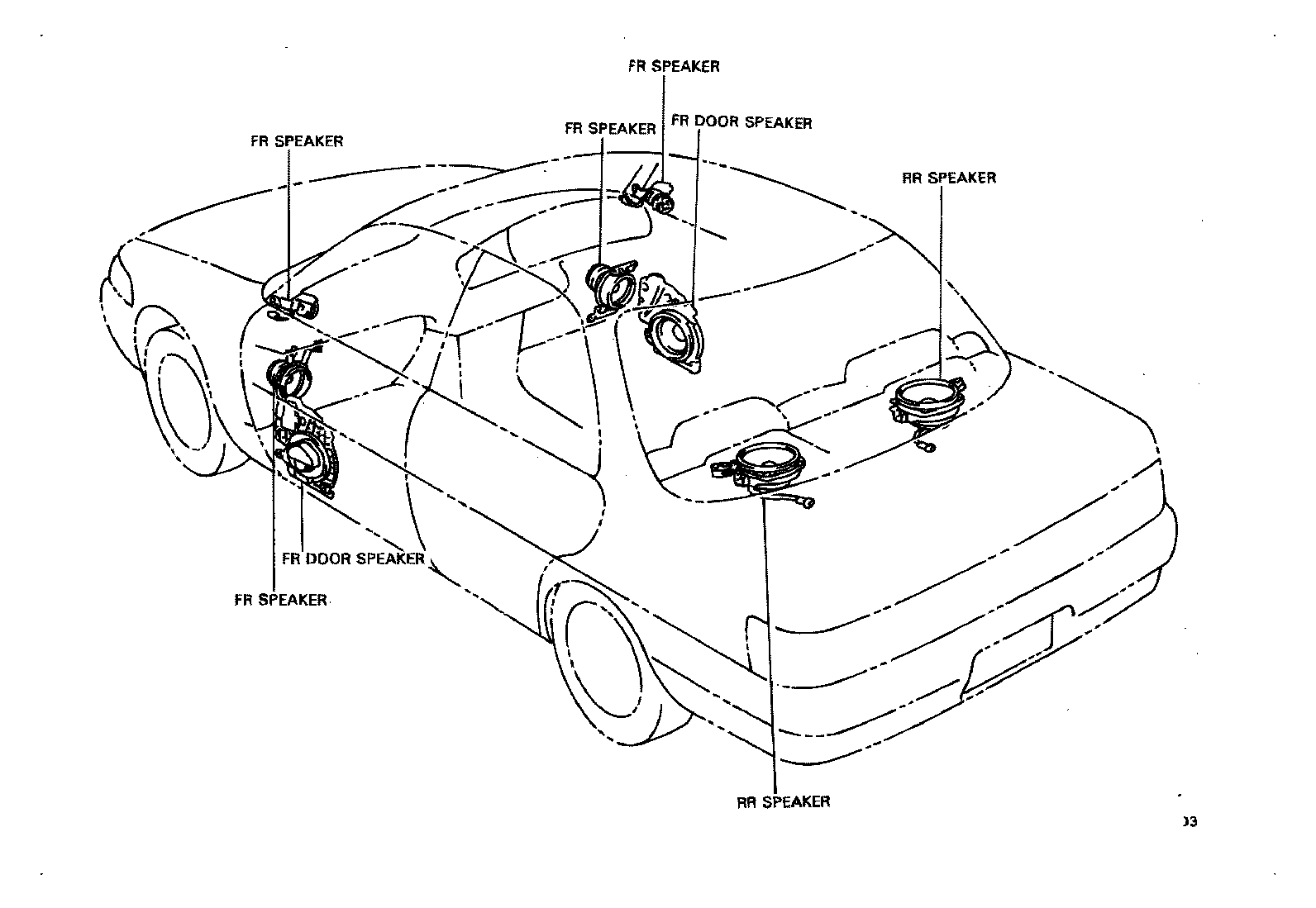

ILLUST NO. 1 OF 3(8909- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

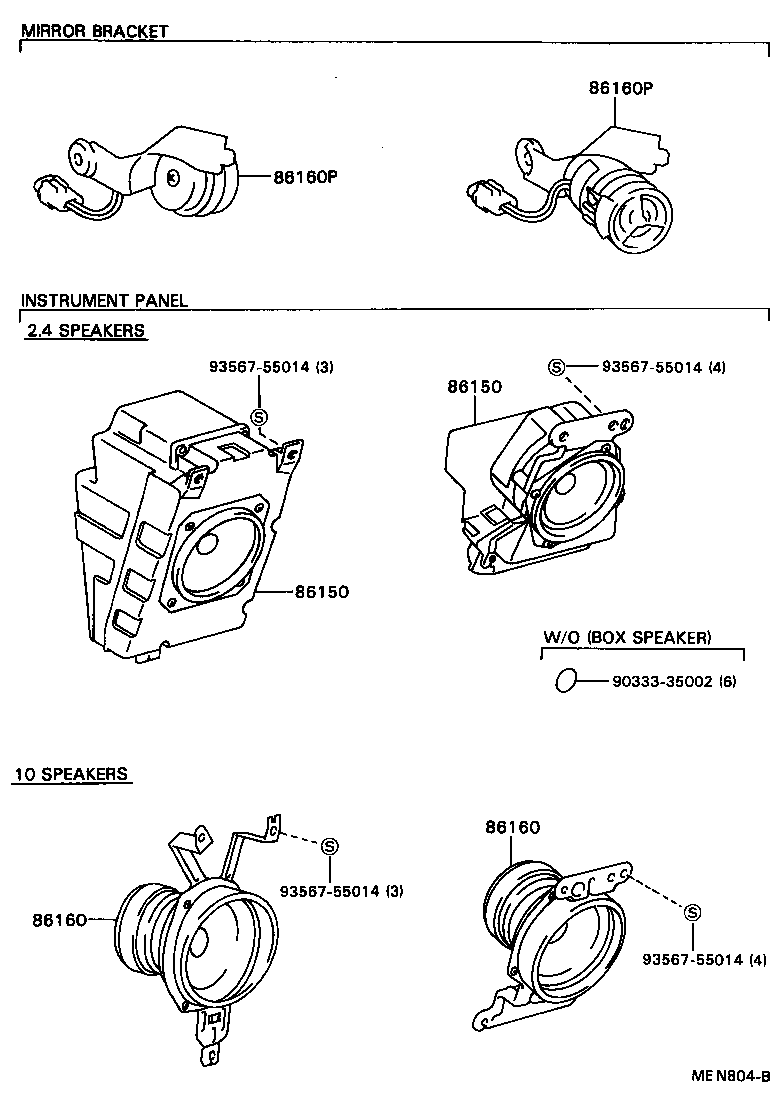

ILLUST NO. 2 OF 3(8909- )

Click highlighted areas on diagram

FR SPEAKER

diagram 86150 86150 86160 86160 86160P 86160P 9033335002 9356755014 9356755014 9356755014 9356755014
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-20200

ST180,181;ST182,183..TR,TRG

右側

 1
86150-20210

ST180,181;ST182,183..TR,TRG

左側

 1
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-20200

ST180,181;ST182,183..TR,TRG

右側

 1
86150-20210

ST180,181;ST182,183..TR,TRG

左側

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-20470

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),INSTRUMENT PANEL,LH

 1
86160-20630

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,RH

 1
86160-20460

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),INSTRUMENT PANEL,RH

 1
86160-20510

ST180,181;ST182,183..TR,TRG

ｱﾘ(6ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,RH

 1
86160-20640

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,LH

 1
86160-20520

ST180,181;ST182,183..TR,TRG

ｱﾘ(6ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-20470

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),INSTRUMENT PANEL,LH

 1
86160-20630

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,RH

 1
86160-20460

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),INSTRUMENT PANEL,RH

 1
86160-20510

ST180,181;ST182,183..TR,TRG

ｱﾘ(6ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,RH

 1
86160-20640

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,LH

 1
86160-20520

ST180,181;ST182,183..TR,TRG

ｱﾘ(6ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,LH

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-20590

ST18#

右側

 1
86160-20600

ST18#

左側

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-20590

ST18#

右側

 1
86160-20600

ST18#

左側

 1
Common parts
90333-35002
93567-55014

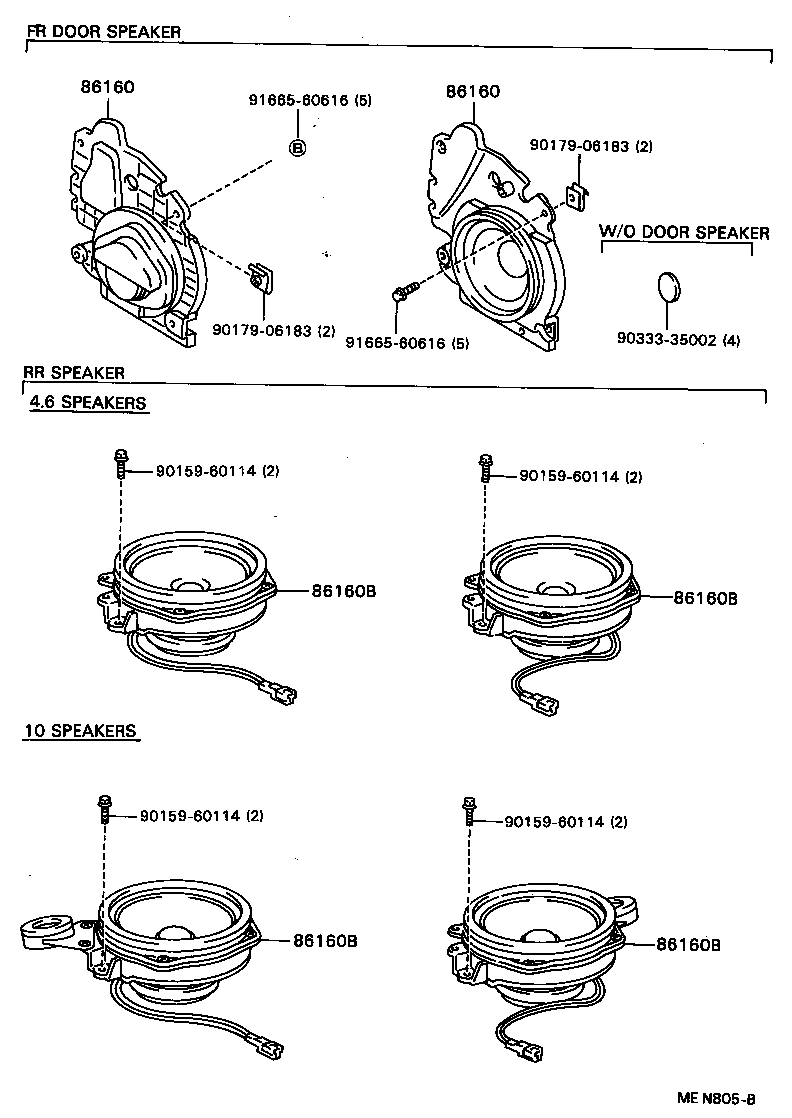

ILLUST NO. 3 OF 3(8909- )

Click highlighted areas on diagram

FR DOOR SPEAKER & RR SPEAKER

diagram 86160 86160 86160B 86160B 86160B 86160B 9015960114 9015960114 9015960114 9015960114 9017906183 9017906183 9033335002 9166560616 9166560616
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-20470

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),INSTRUMENT PANEL,LH

 1
86160-20630

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,RH

 1
86160-20460

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),INSTRUMENT PANEL,RH

 1
86160-20510

ST180,181;ST182,183..TR,TRG

ｱﾘ(6ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,RH

 1
86160-20640

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,LH

 1
86160-20520

ST180,181;ST182,183..TR,TRG

ｱﾘ(6ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-20470

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),INSTRUMENT PANEL,LH

 1
86160-20630

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,RH

 1
86160-20460

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),INSTRUMENT PANEL,RH

 1
86160-20510

ST180,181;ST182,183..TR,TRG

ｱﾘ(6ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,RH

 1
86160-20640

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,LH

 1
86160-20520

ST180,181;ST182,183..TR,TRG

ｱﾘ(6ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),DOOR,LH

 1
86160B - SPEAKER ASSY, REAR
86160-20690

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),右側

 1
86160-20530

ST18#

 2
86160-20700

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),左側

 1
86160B - SPEAKER ASSY, REAR
86160-20690

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),右側

 1
86160-20530

ST18#

 2
86160-20700

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),左側

 1
86160B - SPEAKER ASSY, REAR
86160-20690

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),右側

 1
86160-20530

ST18#

 2
86160-20700

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),左側

 1
86160B - SPEAKER ASSY, REAR
86160-20690

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),右側

 1
86160-20530

ST18#

 2
86160-20700

ST18#

ｱﾘ(10ｽﾋﾟ-ｶ ﾖｳ ﾗｼﾞｵ),左側

 1
Common parts
90159-60114
90179-06183
90333-35002
91665-60616
