ST180-ATMEM (1989)

Toyota Corona Exiv

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )3SFE,4SF#

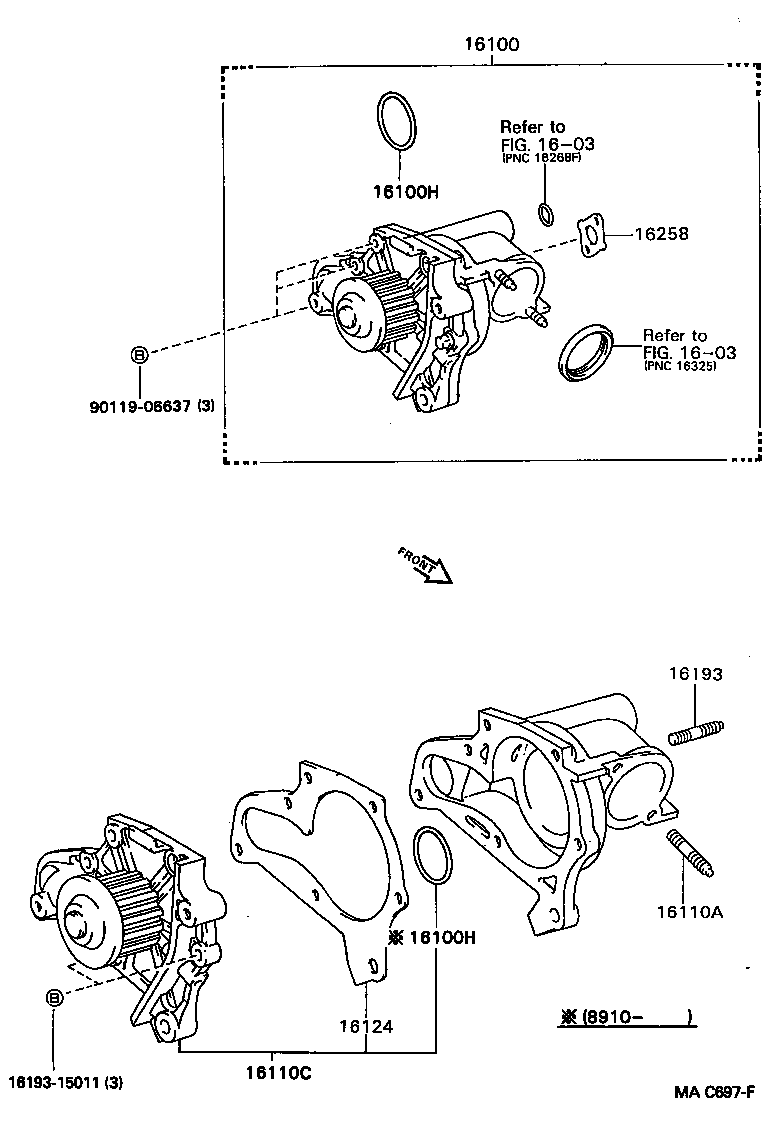

Click highlighted areas on diagram

diagram 1603 1603 16100 16100H 16100H 16110A 16110C 16124 16193 1619315011 16258 9011906637
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79135

3SFE,4SFI..ST18#

 1
16100-79185

4SFI..ST180,181

 1
16100H - RING, O(FOR WATER PUMP)
90301-37005

3S#,4SF#..ST18#

 1
16100H - RING, O(FOR WATER PUMP)
90301-37005

3S#,4SF#..ST18#

 1
16110A - BOLT, STUD(FOR WATER OUTLET SETTING)
16193-63010

4SFI..ST180,181

 1
16193-63010

3SFE,4SFI..ST18#

 4
16110C - PUMP ASSY, WATER, W/O COVER
16110-79045

3SFE,4SFI..ST18#

 1
16124 - GASKET, WATER PUMP COVER
16124-74020

3S#,4SF#..ST18#

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
90029-01500

3SFE,4SFI..ST18#

 4
90029-01500

4SFI..ST180,181

 1
16258 - GASKET(FOR HEATER RETURN)
16258-74020

3SFE,4SF#..ST18#

 1
Common parts
16193-15011
90119-06637
Linked diagrams
1603
