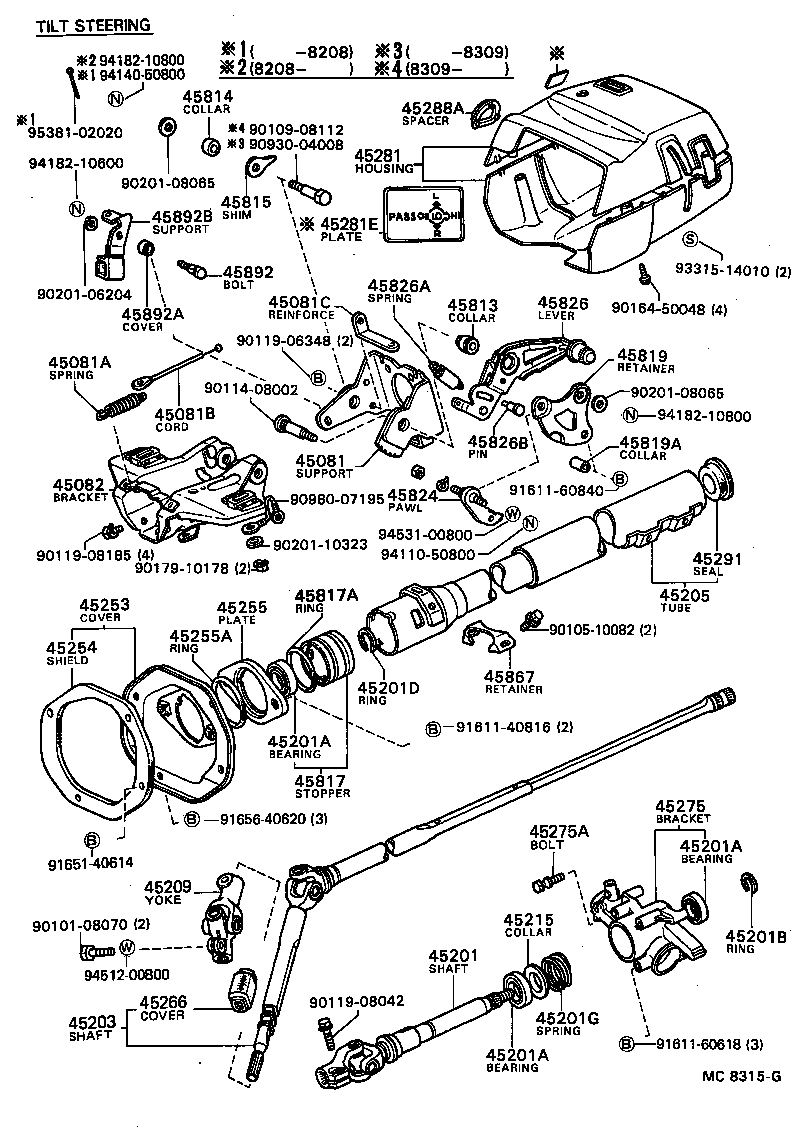

YT140-TEMRP (1982)
Toyota Corona
(8201-8508)CT140,ST140..EXS,GX ; (8612- )CT141,YT140..3FC,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
CT141,YT140..3FC,5F |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
CT141,YT140..3FC,5F |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
CT141,YT140..3FC,5F 長さ=107.5 |
2 | ||
| 45081C - REINFORCE, TILT STEERING SUPPORT | ||||
| 45821-22010 |
CT141,YT140..3FC,5F |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-14050 |
CT141,YT140..3FC,5F |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22110 |
YT140..3FC,5F W/POWER STEERING |
1 | ||
| 45210-22110 |
YT140 W/POWER STEERING |
1 | ||
| 45210-14080 |
YT140 |
1 | ||
| 45210-22050 |
CT141,YT140..3FC,5F W/TILT STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AT140,CT14#,KT147,ST140,TT14#,YT140..DLX,GX,GXA,STD,SX UPR |
1 | ||
| 90363-28001 |
CT141,YT140..3FC,5F CTR,W/TILT STEERING |
1 | ||
| 90363-18001 |
CT141,YT140..3FC,5F UPR,W/TILT STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AT140,CT14#,KT147,ST140,TT14#,YT140..DLX,GX,GXA,STD,SX UPR |
1 | ||
| 90363-28001 |
CT141,YT140..3FC,5F CTR,W/TILT STEERING |
1 | ||
| 90363-18001 |
CT141,YT140..3FC,5F UPR,W/TILT STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AT140,CT14#,KT147,ST140,TT14#,YT140..DLX,GX,GXA,STD,SX UPR |
1 | ||
| 90363-28001 |
CT141,YT140..3FC,5F CTR,W/TILT STEERING |
1 | ||
| 90363-18001 |
CT141,YT140..3FC,5F UPR,W/TILT STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AT140,CT14#,KT147,ST140,TT14#,YT140..DLX,GX,GXA,STD,SX 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
CT141,YT140..3FC,5F |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-22050 |
YT140..3FC,5F W/POWER & TILT STEERING |
1 | ||
| 45220-22060 |
CT141,YT140..3FC,5F W/TILT STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-14080 |
CT141,YT140..3FC,5F W/TILT STEERING |
1 | ||
| 45870-14130 |
CT140,141,KT147,TT147,YT140..STD |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
CT141,YT140..3FC,5F |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14130 |
YT140..3FC,5F |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-24011 |
YT140..3FC,5F |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
CT140,141,KT147,TT147,YT140..STD |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
CT140,141,KT147,TT147,YT140..STD |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-24031 |
CT141,YT140..5F |
1 | ||
| 45280-24012 |
CT141,YT140..3FC,5F W/TILT STEERING |
1 | ||
| 45280-24031 |
CT141,YT140..5F |
1 | ||
| 45280-20570 |
YT140 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2490001 |
YT140..3FC,5F BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1492201 |
CT141,YT140..3FC,5F W/TILT STEERING,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2092801 |
CT141,YT140..3FC,5F BLACK,BLACK,TRIM2# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-1401001 |
CT141,YT140..3FC,5F BLACK,BLACK,TRIM2# |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
CT141,YT140..3FC,5F W/TILT STEERING |
1 | ||
| 45292-14030 |
CT140,141,KT147,TT147,YT140..STD |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
CT141,YT140..3FC,5F 外径=17.996−18.003,D=17.996-18.003 |
1 | ||
| 45813-22050 |
CT141,YT140..3FC,5F 外径=17.989−17.996,D=17.989-17.996 |
1 | ||
| 45813-22030 |
CT141,YT140..3FC,5F 外径=18.010−18.017,D=18.010-18.017 |
1 | ||
| 45813-22020 |
CT141,YT140..3FC,5F 外径=18.003−18.010,D=18.003-18.010 |
1 | ||
| 45813-22040 |
CT141,YT140..3FC,5F 外径=18.017−18.024,D=18.017-18.024 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
CT141,YT140..3FC,5F 外径=17.982−18.000,D=17.982-18.000 |
1 | ||
| 45814-22020 |
CT141,YT140..3FC,5F 外径=18.000−18.018,D=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22100 |
CT141,YT140..3FC,5F 厚さ=1.8,T=1.8 |
1 | ||
| 45815-22060 |
CT141,YT140..3FC,5F 厚さ=0.2,T=0.2 |
1 | ||
| 45815-22080 |
CT141,YT140..3FC,5F 厚さ=0.8,T=0.8 |
1 | ||
| 45815-22070 |
CT141,YT140..3FC,5F 厚さ=0.5,T=0.5 |
1 | ||
| 45815-22090 |
CT141,YT140..3FC,5F 厚さ=1.4,T=1.4 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
CT141,YT140..3FC,5F |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
CT141,YT140..3FC,5F |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
CT141,YT140..3FC,5F |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
CT141,YT140..3FC,5F |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
CT141,YT140..3FC,5F |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
CT141,YT140..3FC,5F |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
CT141,YT140..3FC,5F |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
CT141,YT140..3FC,5F |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22020 |
CT141,YT140..3FC,5F |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-10082 | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06348 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-10323 | ||||
| 90930-04008 | ||||
| 90980-07195 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91611-60840 | ||||
| 91651-40614 | ||||
| 91656-40620 | ||||
| 93315-14010 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||
