YT140-TEMDP (1982)

Toyota Corona

Production Sep 1982 - Apr 1998
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)SED ; (8612-8712)AT140,ST140

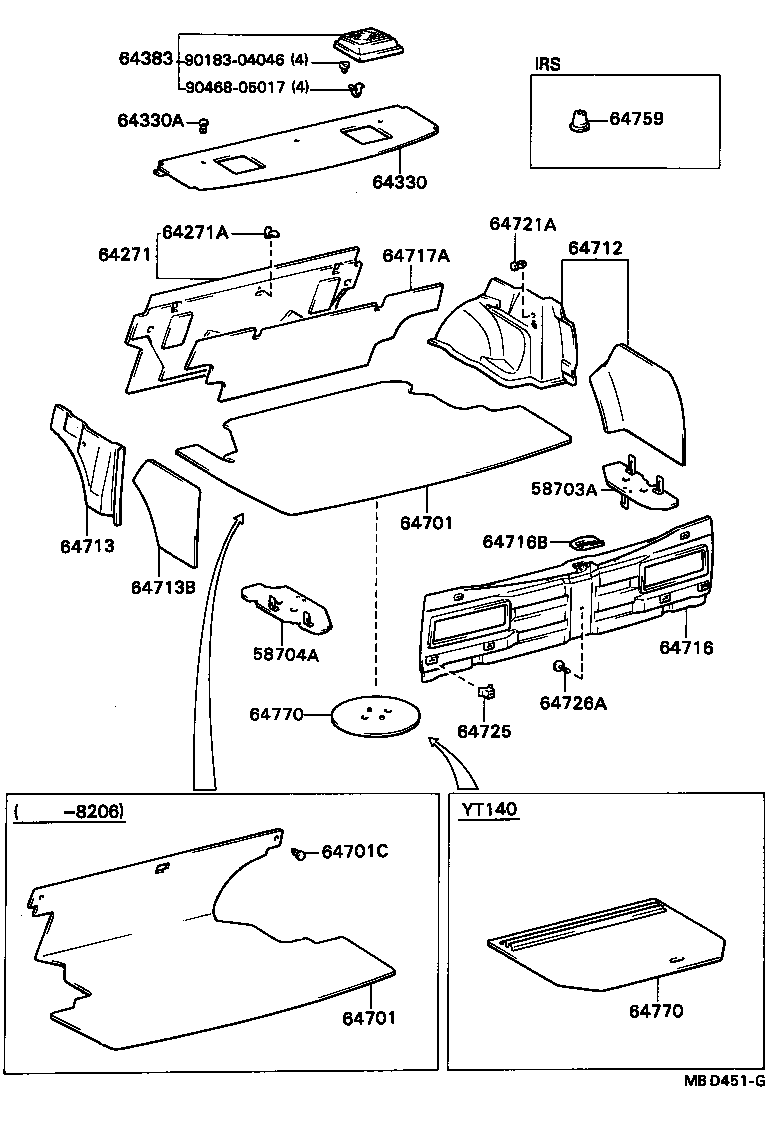

Click highlighted areas on diagram

diagram 58703A 58704A 64271 64271A 64330 64330A 64383 64701 64701 64701C 64712 64713 64713B 64716 64716B 64717A 64721A 64725 64726A 64759 64770 64770 9018304046 9046805017
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-20090

CT141,YT140

RH

 1
58703-20030

AT14#,CT140,RT141,ST140,TT142,YT140..SED

RH

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-20020

AT14#,CT140,RT141,ST140,TT142,YT140..SED

LH

 1
58704-20090

CT141,YT140

LH

 1
64271 - BOARD, ROOM PARTITION, NO.1
64270-14061

AT140,CT140,RT141,ST140,TT142,YT140..SED..(DLX,GT,GTT,GX,GXA,STD,SX)

 1
64270-14062

AT140,CT140,ST140,TT142,YT140..SED..(DLX,GTT,GX,GXA,STD,SX)

 1
64271-20250

YT140

 1
64270-14062

AT14#,CT140,ST140,TT142,YT140..SED

 1
64270-20050

CT141,YT140

 1
64271A - RETAINER, ROOM PARTITION BOARD
62598-14020

CT141,YT140

 2
62598-14020

AT14#,CT140,RT141,ST140,TT142,YT140..SED

 2
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2034001

YT140;AT140,CT140,TT142..SED..(GTT,STD)

BLACK,BLACK,TRIM2#

 1
64330-2B790C0

YT140

ｱﾘ(3ﾎﾟｲﾝﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLACK,BLACK,TRIM2#

 1
64330-2B800C0

YT140

BLACK,BLACK,TRIM2#

 1
64330-2080001

CT141,YT140

BLACK,BLACK,TRIM2#

 1
64330-2034001

AT14#,CT140,ST140,TT142,YT140..SED

BLACK,BLACK,TRIM2#

 1
64330-2B780C0

YT140

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLACK,BLACK,TRIM2#

 1
64330-2B800C0

YT140

ｱﾘ(3ﾎﾟｲﾝﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ),BLACK,BLACK,TRIM2#

 1
64330-2B790C0

YT140

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLACK,BLACK,TRIM2#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0914401

YT140;RT141,ST140,TT142..HT;AT140,CT140,TT142..SED..(GTT,STD)

BLACK,BLACK,TRIM2#

 3
90467-0804601

CT141,YT140

BLACK,BLACK,TRIM2#

 2
90467-0803701

YT140;ST140,TT142..HT;AT140,CT140,TT142..SED..(GTT,STD)

BLACK,BLACK,TRIM2#

 3
90467-0803701

AT14#,CT140,ST140,TT142,YT140

BLACK,BLACK,TRIM2#

 3
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-2041003

YT140

GRAY,GRAY,TRIM2#

 1
64711-20210

YT140

 1
64711-2041103

YT140

GRAY,GRAY,TRIM2#

 1
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-2041003

YT140

GRAY,GRAY,TRIM2#

 1
64711-20210

YT140

 1
64711-2041103

YT140

GRAY,GRAY,TRIM2#

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-20090

YT140..DLX

 1
64712-20070

YT140..DLX

 1
64712-2014003

YT140..DLX

GRAY,GRAY,TRIM2#

 1
64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH
64713-20090

YT140..DLX

 1
64713-2014003

YT140..DLX

GRAY,GRAY,TRIM2#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0715801

YT140..DLX

BLACK

 2
64770 - COVER ASSY, SPARE WHEEL
64770-20040

YT140

 1
64770-20041

YT140

 1
64770-20042

YT140

 1
64770 - COVER ASSY, SPARE WHEEL
64770-20040

YT140

 1
64770-20041

YT140

 1
64770-20042

YT140

 1
Common parts
90183-04046
90468-05017

(8612- )CT141,YT140

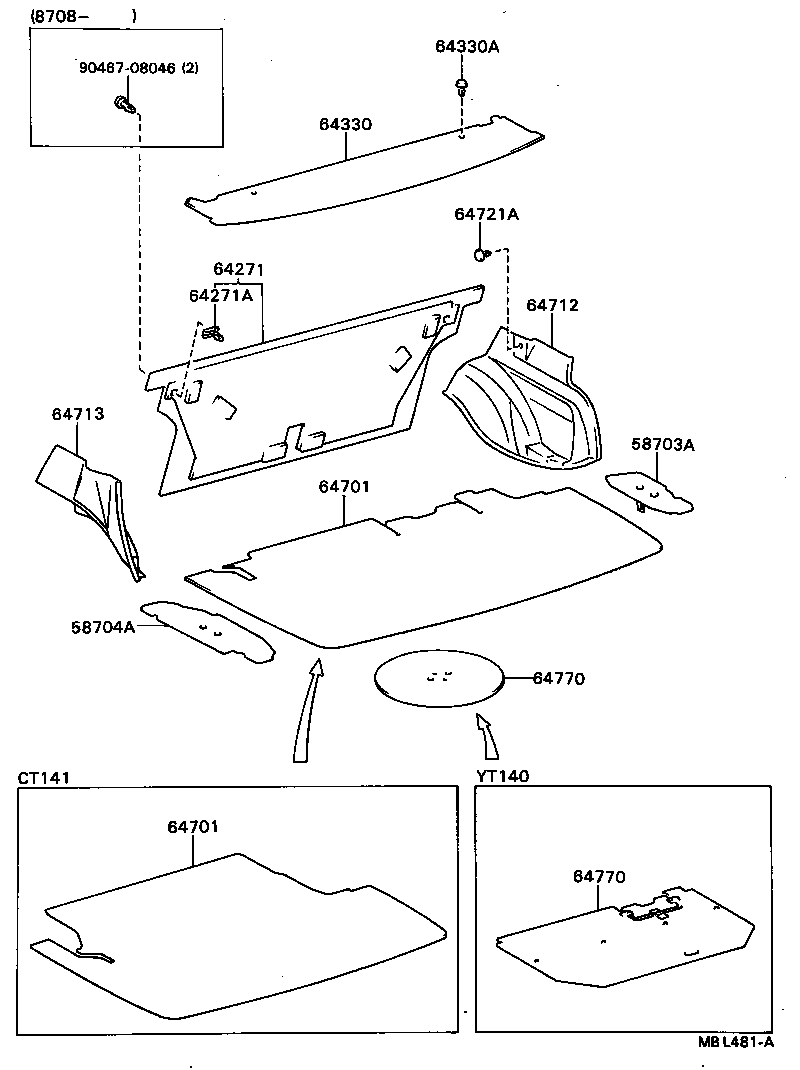

Click highlighted areas on diagram

diagram 58703A 58704A 64271 64271A 64330 64330A 64701 64701 64712 64713 64721A 64770 64770 9046708046
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-20090

CT141,YT140

RH

 1
58703-20030

AT14#,CT140,RT141,ST140,TT142,YT140..SED

RH

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-20020

AT14#,CT140,RT141,ST140,TT142,YT140..SED

LH

 1
58704-20090

CT141,YT140

LH

 1
64271 - BOARD, ROOM PARTITION, NO.1
64270-14061

AT140,CT140,RT141,ST140,TT142,YT140..SED..(DLX,GT,GTT,GX,GXA,STD,SX)

 1
64270-14062

AT140,CT140,ST140,TT142,YT140..SED..(DLX,GTT,GX,GXA,STD,SX)

 1
64271-20250

YT140

 1
64270-14062

AT14#,CT140,ST140,TT142,YT140..SED

 1
64270-20050

CT141,YT140

 1
64271A - RETAINER, ROOM PARTITION BOARD
62598-14020

CT141,YT140

 2
62598-14020

AT14#,CT140,RT141,ST140,TT142,YT140..SED

 2
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2034001

YT140;AT140,CT140,TT142..SED..(GTT,STD)

BLACK,BLACK,TRIM2#

 1
64330-2B790C0

YT140

ｱﾘ(3ﾎﾟｲﾝﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLACK,BLACK,TRIM2#

 1
64330-2B800C0

YT140

BLACK,BLACK,TRIM2#

 1
64330-2080001

CT141,YT140

BLACK,BLACK,TRIM2#

 1
64330-2034001

AT14#,CT140,ST140,TT142,YT140..SED

BLACK,BLACK,TRIM2#

 1
64330-2B780C0

YT140

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLACK,BLACK,TRIM2#

 1
64330-2B800C0

YT140

ｱﾘ(3ﾎﾟｲﾝﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ),BLACK,BLACK,TRIM2#

 1
64330-2B790C0

YT140

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLACK,BLACK,TRIM2#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0914401

YT140;RT141,ST140,TT142..HT;AT140,CT140,TT142..SED..(GTT,STD)

BLACK,BLACK,TRIM2#

 3
90467-0804601

CT141,YT140

BLACK,BLACK,TRIM2#

 2
90467-0803701

YT140;ST140,TT142..HT;AT140,CT140,TT142..SED..(GTT,STD)

BLACK,BLACK,TRIM2#

 3
90467-0803701

AT14#,CT140,ST140,TT142,YT140

BLACK,BLACK,TRIM2#

 3
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-2041003

YT140

GRAY,GRAY,TRIM2#

 1
64711-20210

YT140

 1
64711-2041103

YT140

GRAY,GRAY,TRIM2#

 1
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-2041003

YT140

GRAY,GRAY,TRIM2#

 1
64711-20210

YT140

 1
64711-2041103

YT140

GRAY,GRAY,TRIM2#

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-20090

YT140..DLX

 1
64712-20070

YT140..DLX

 1
64712-2014003

YT140..DLX

GRAY,GRAY,TRIM2#

 1
64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH
64713-20090

YT140..DLX

 1
64713-2014003

YT140..DLX

GRAY,GRAY,TRIM2#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0715801

YT140..DLX

BLACK

 2
64770 - COVER ASSY, SPARE WHEEL
64770-20040

YT140

 1
64770-20041

YT140

 1
64770-20042

YT140

 1
64770 - COVER ASSY, SPARE WHEEL
64770-20040

YT140

 1
64770-20041

YT140

 1
64770-20042

YT140

 1
Common parts
90467-08046
