YT140-TEMDP (1982)
Toyota Corona

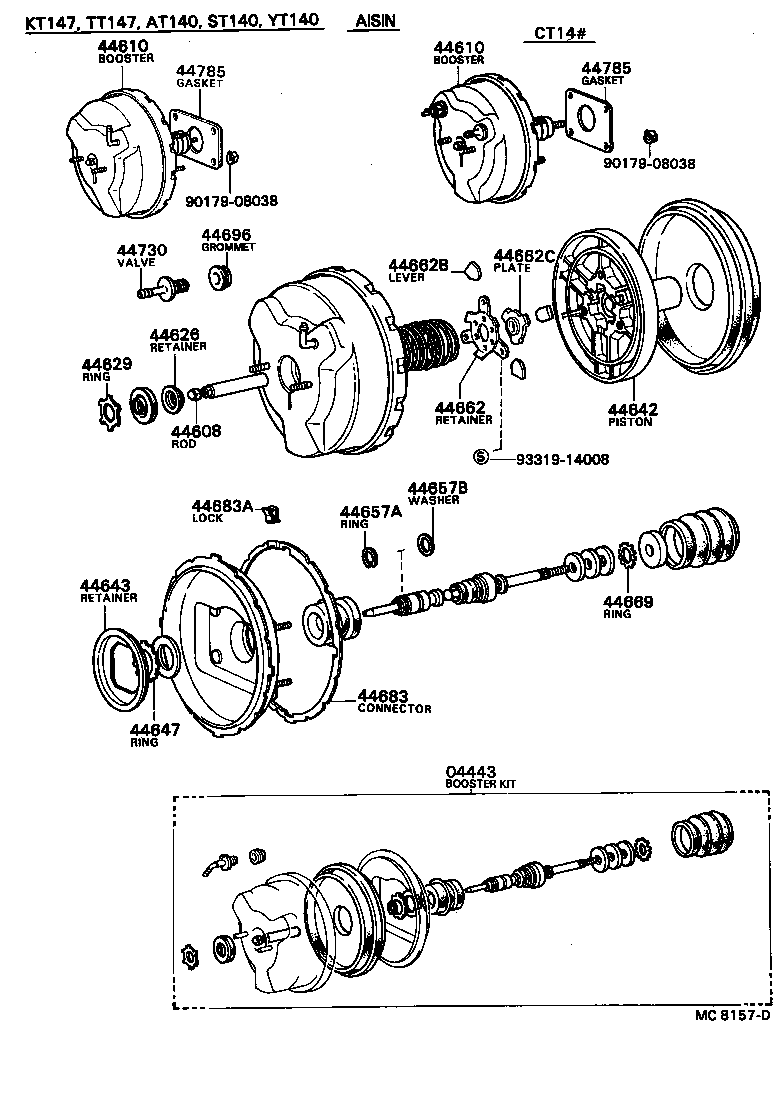

ILLUST NO. 1 OF 2(8201-8612)AT140,CT14#,KT147,ST140,TT147,YT140 ;(8612-8712)AT140,CT147,KT147,ST140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-14320 |
YT140 FR DRUM BRAKE,AISIN |
1 | ||
| 04443-22230 |
AT140,KT147,ST140,YT140 FR DISC BRAKE,AISHIN |
1 | ||
| 04443-20510 |
YT140 FR DISC BRAKE,AISHIN |
1 | ||
| 04443-20560 |
YT140 FR DRUM BRAKE,AISHIN |
1 | ||
| 04443-14320 |
AT140,KT147,ST140,TT147,YT140 FR DRUM BRAKE,AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
AT140,CT14#,KT147,ST140,TT147,YT140 AISIN |
1 | ||
| 44606-12520 |
CT141,YT140 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20630 |
YT140 FR DRUM BRAKE |
1 | ||
| 44610-20870 |
YT140 FR DRUM BRAKE |
1 | ||
| 44610-22330 |
YT140 FR DISC BRAKE |
1 | ||
| 44610-20880 |
YT140 FR DISC BRAKE |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20630 |
YT140 FR DRUM BRAKE |
1 | ||
| 44610-20870 |
YT140 FR DRUM BRAKE |
1 | ||
| 44610-22330 |
YT140 FR DISC BRAKE |
1 | ||
| 44610-20880 |
YT140 FR DISC BRAKE |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44628-28120 |
CT141,YT140 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
AT140,CT14#,KT147,ST140,TT147,YT140 AISIN |
1 | ||
| 44642-27150 |
CT141,YT140 FR DRUM BRAKE |
1 | ||
| 44642-16050 |
CT141,YT140 FR DISC BRAKE |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-12230 |
YT140 FR DRUM BRAKE |
1 | ||
| 44607-22330 |
AT140,CT14#,KT147,ST140,TT147,YT140 FR DISC BRAKE |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||

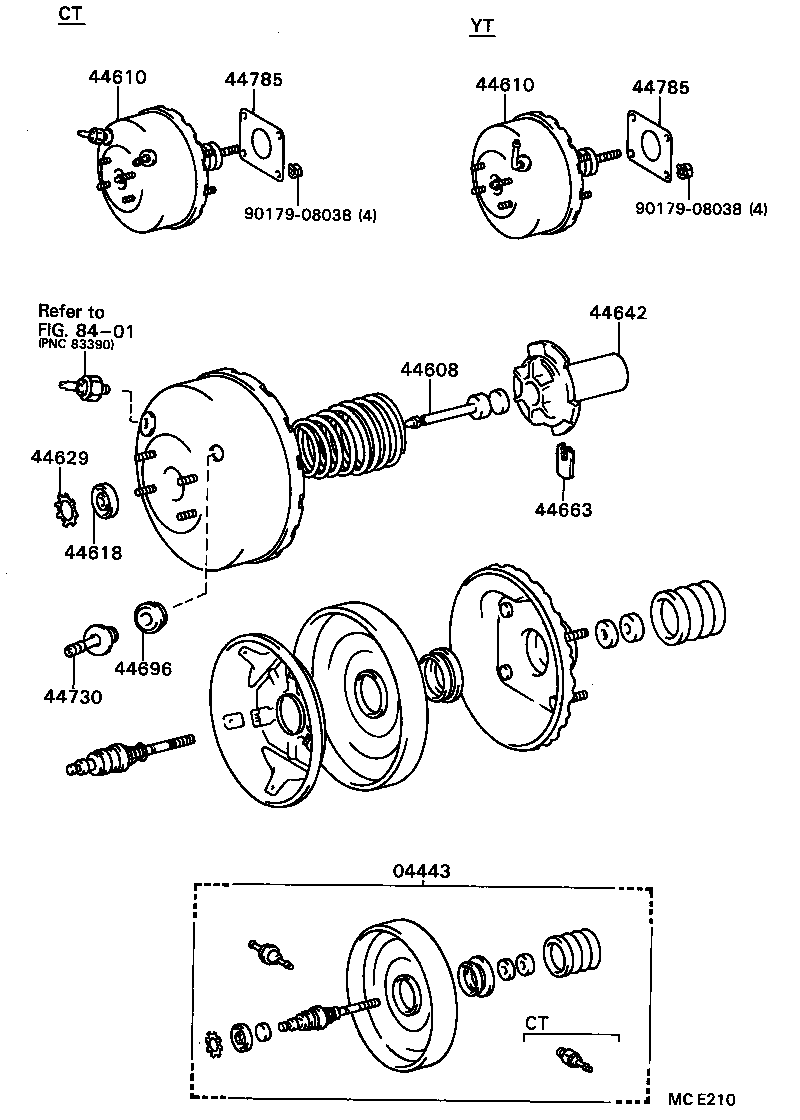

ILLUST NO. 1 OF 2(8612- )CT141,YT140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-14320 |
YT140 FR DRUM BRAKE,AISIN |
1 | ||
| 04443-22230 |
AT140,KT147,ST140,YT140 FR DISC BRAKE,AISHIN |
1 | ||
| 04443-20510 |
YT140 FR DISC BRAKE,AISHIN |
1 | ||
| 04443-20560 |
YT140 FR DRUM BRAKE,AISHIN |
1 | ||
| 04443-14320 |
AT140,KT147,ST140,TT147,YT140 FR DRUM BRAKE,AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
AT140,CT14#,KT147,ST140,TT147,YT140 AISIN |
1 | ||
| 44606-12520 |
CT141,YT140 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20630 |
YT140 FR DRUM BRAKE |
1 | ||
| 44610-20870 |
YT140 FR DRUM BRAKE |
1 | ||
| 44610-22330 |
YT140 FR DISC BRAKE |
1 | ||
| 44610-20880 |
YT140 FR DISC BRAKE |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20630 |
YT140 FR DRUM BRAKE |
1 | ||
| 44610-20870 |
YT140 FR DRUM BRAKE |
1 | ||
| 44610-22330 |
YT140 FR DISC BRAKE |
1 | ||
| 44610-20880 |
YT140 FR DISC BRAKE |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
CT141,YT140 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44628-28120 |
CT141,YT140 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
AT140,CT14#,KT147,ST140,TT147,YT140 AISIN |
1 | ||
| 44642-27150 |
CT141,YT140 FR DRUM BRAKE |
1 | ||
| 44642-16050 |
CT141,YT140 FR DISC BRAKE |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
CT141,YT140 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| Linked diagrams | ||||
| 8401 | ||||
