YT140-TEMDP (1982)

Toyota Corona

Production Sep 1982 - Apr 1998
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )CT141,YT140

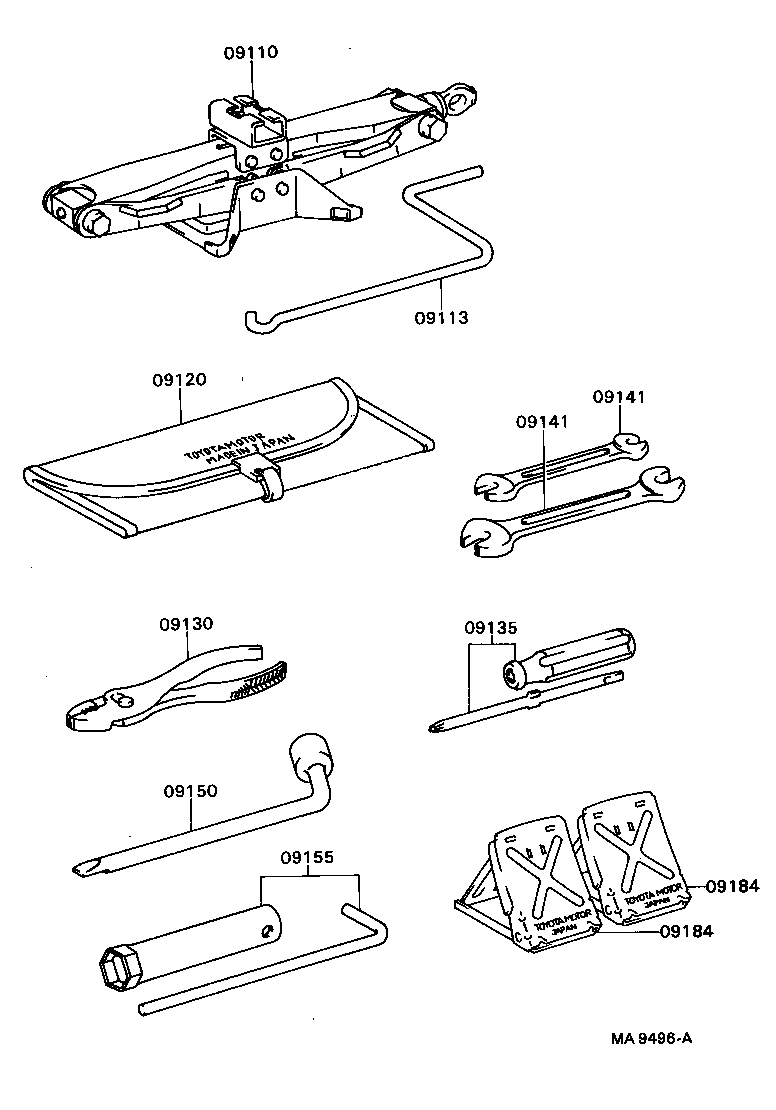

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09141 09141 09150 09155 09184 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-20060

CT141,YT140

 1
09118-14010

AT14#,CT140,RT141,ST140,TT142,YT140

 1
09111-22040

AT140,CT140,ST140,YT140

 1
09113 - HANDLE, JACK
09113-20030

YT140

 1
09120 - BAG, TOOL
09120-10030

CT141,YT140

 1
09135 - DRIVER, SCREW
99915-10700

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
09141 - SPANNER
99914-11214

CT141,YT140

12 X 14,12X14

 1
09141 - SPANNER
99914-11214

CT141,YT140

12 X 14,12X14

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

CT141,YT140

 1
09155 - WRENCH, SPARK PLUG
09155-41010

YT140

 1
09155-41020

ST140,YT140

 1
09184 - STOPPER, WHEEL
09184-00010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
09184 - STOPPER, WHEEL
09184-00010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2

(8201-8612) ; (8612-8712)AT140,CT147,KT147,ST140

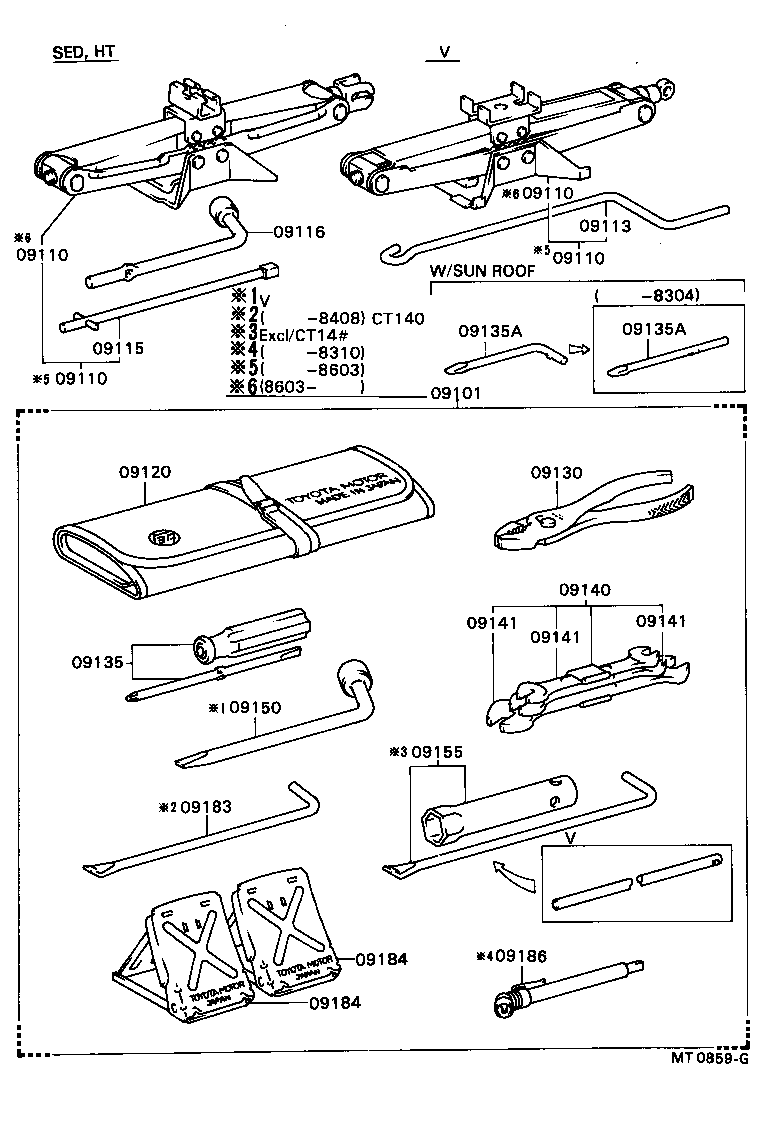

Click highlighted areas on diagram

diagram 09101 09110 09110 09110 09110 09113 09115 09116 09120 09130 09135 09135A 09135A 09140 09141 09141 09141 09150 09155 09183 09184 09184 09186
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09102-12071

ST140,YT140

 1
09110 - JACK ASSY
09111-20060

CT141,YT140

 1
09118-14010

AT14#,CT140,RT141,ST140,TT142,YT140

 1
09111-22040

AT140,CT140,ST140,YT140

 1
09110 - JACK ASSY
09111-20060

CT141,YT140

 1
09118-14010

AT14#,CT140,RT141,ST140,TT142,YT140

 1
09111-22040

AT140,CT140,ST140,YT140

 1
09110 - JACK ASSY
09111-20060

CT141,YT140

 1
09118-14010

AT14#,CT140,RT141,ST140,TT142,YT140

 1
09111-22040

AT140,CT140,ST140,YT140

 1
09110 - JACK ASSY
09111-20060

CT141,YT140

 1
09118-14010

AT14#,CT140,RT141,ST140,TT142,YT140

 1
09111-22040

AT140,CT140,ST140,YT140

 1
09113 - HANDLE, JACK
09113-20030

YT140

 1
09116 - LEVER, JACK HANDLE
09116-16010

AT14#,CT140,RT141,ST140,TT142,YT140

 1
09116-20010

CT140,YT140

 1
09120 - BAG, TOOL
09120-10030

CT141,YT140

 1
09135 - DRIVER, SCREW
99915-10700

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
09141 - SPANNER
99914-11214

CT141,YT140

12 X 14,12X14

 1
09141 - SPANNER
99914-11214

CT141,YT140

12 X 14,12X14

 1
09141 - SPANNER
99914-11214

CT141,YT140

12 X 14,12X14

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

CT141,YT140

 1
09155 - WRENCH, SPARK PLUG
09155-41010

YT140

 1
09155-41020

ST140,YT140

 1
09184 - STOPPER, WHEEL
09184-00010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
09184 - STOPPER, WHEEL
09184-00010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
09186 - GAGE, TIRE
09186-00010

AT140,CT14#,RT141,ST140,TT14#,YT140

 1
