Toyota Corona YT140 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
CORONA
YT140-TEHDP (1982)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

YT140-TEHDP (1982)

Toyota Corona

Production Sep 1982 - Apr 1998

Engine 2YPU

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

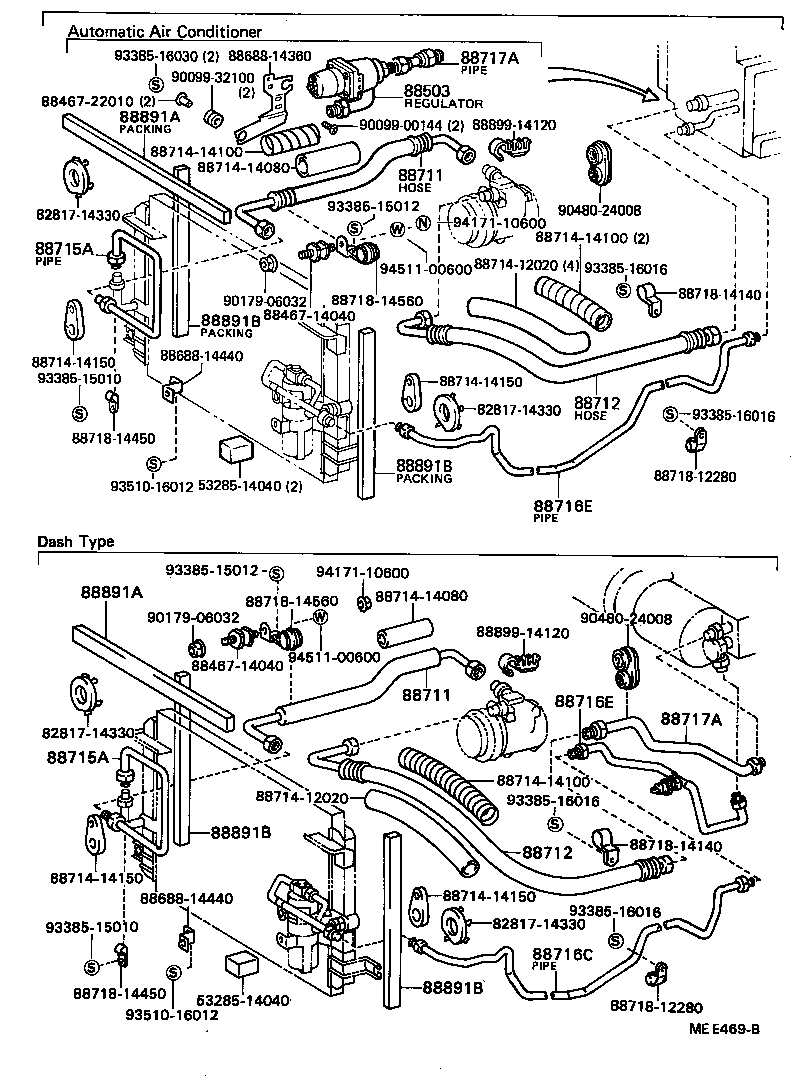

(8209-8612)YT140

Click highlighted areas on diagram

Part #	Description	Period	Qty
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20350	YT140	09/1982 - 10/1983	1
88711-20421	YT140	12/1992 - 01/1994	1
88711-20420	YT140	10/1983 - 12/1992	1
88711-20422	YT140	01/1994 - 04/1998	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20350	YT140	09/1982 - 10/1983	1
88711-20421	YT140	12/1992 - 01/1994	1
88711-20420	YT140	10/1983 - 12/1992	1
88711-20422	YT140	01/1994 - 04/1998	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14570	YT140	09/1982 - 10/1983	1
88712-20512	YT140	01/1994 - 04/1998	1
88712-20511	YT140	12/1992 - 01/1994	1
88712-20510	YT140	10/1983 - 12/1992	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14570	YT140	09/1982 - 10/1983	1
88712-20512	YT140	01/1994 - 04/1998	1
88712-20511	YT140	12/1992 - 01/1994	1
88712-20510	YT140	10/1983 - 12/1992	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14131	YT140	01/1994 - 04/1998	1
88715-14130	KT147,TT14#,YT140..DLX,GX,STD,SX	01/1982 - 01/1994	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14131	YT140	01/1994 - 04/1998	1
88715-14130	KT147,TT14#,YT140..DLX,GX,STD,SX	01/1982 - 01/1994	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2B350	CT141,YT140 DASH TYPE NO.1	12/1986 - 01/1994	1
88716-14760	YT140 DASH TYPE	09/1982 - 12/1986	1
88716-2B360	CT141,YT140 DASH TYPE NO.2	12/1986 - 01/1994	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760	AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX	01/1982 - 12/1986	1
88716-2B351	YT140 NO.1	01/1994 - 04/1998	1
88716-20630	YT140 DASH TYPE	09/1982 - 01/1994	1
88716-2B350	CT141,YT140 NO.1	12/1986 - 01/1994	1
88716-2B360	CT141,YT140 NO.2	12/1986 - 01/1994	1
88716-2B361	YT140 NO.2	01/1994 - 04/1998	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760	AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX	01/1982 - 12/1986	1
88716-2B351	YT140 NO.1	01/1994 - 04/1998	1
88716-20630	YT140 DASH TYPE	09/1982 - 01/1994	1
88716-2B350	CT141,YT140 NO.1	12/1986 - 01/1994	1
88716-2B360	CT141,YT140 NO.2	12/1986 - 01/1994	1
88716-2B361	YT140 NO.2	01/1994 - 04/1998	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20310	YT140 DASH TYPE	09/1982 - 01/1994	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20310	YT140 DASH TYPE	09/1982 - 01/1994	1
88891A - PACKING A (FOR COOLER)
53293-14050	YT140	12/1986 - 04/1998	1
53293-14050	TT147,YT140..3FC	01/1982 - 12/1986	1
88891A - PACKING A (FOR COOLER)
53293-14050	YT140	12/1986 - 04/1998	1
53293-14050	TT147,YT140..3FC	01/1982 - 12/1986	1
88891B - PACKING B (FOR COOLER)
53291-14020	KT147,TT14#,YT140	01/1982 - 04/1998	2
88891B - PACKING B (FOR COOLER)
53291-14020	KT147,TT14#,YT140	01/1982 - 04/1998	2
88891B - PACKING B (FOR COOLER)
53291-14020	KT147,TT14#,YT140	01/1982 - 04/1998	2
88891B - PACKING B (FOR COOLER)
53291-14020	KT147,TT14#,YT140	01/1982 - 04/1998	2
Common parts
53285-14040
82817-14330
88467-14040
88467-22010
88688-14360
88688-14440
88714-12020
88714-14080
88714-14100
88714-14150
88718-12280
88718-14140
88718-14450
88718-14560
88899-14120
90099-00144
90099-32100
90179-06032
90480-24008
93385-15010
93385-15012
93385-16016
93385-16030
93510-16012
94171-10600
94511-00600

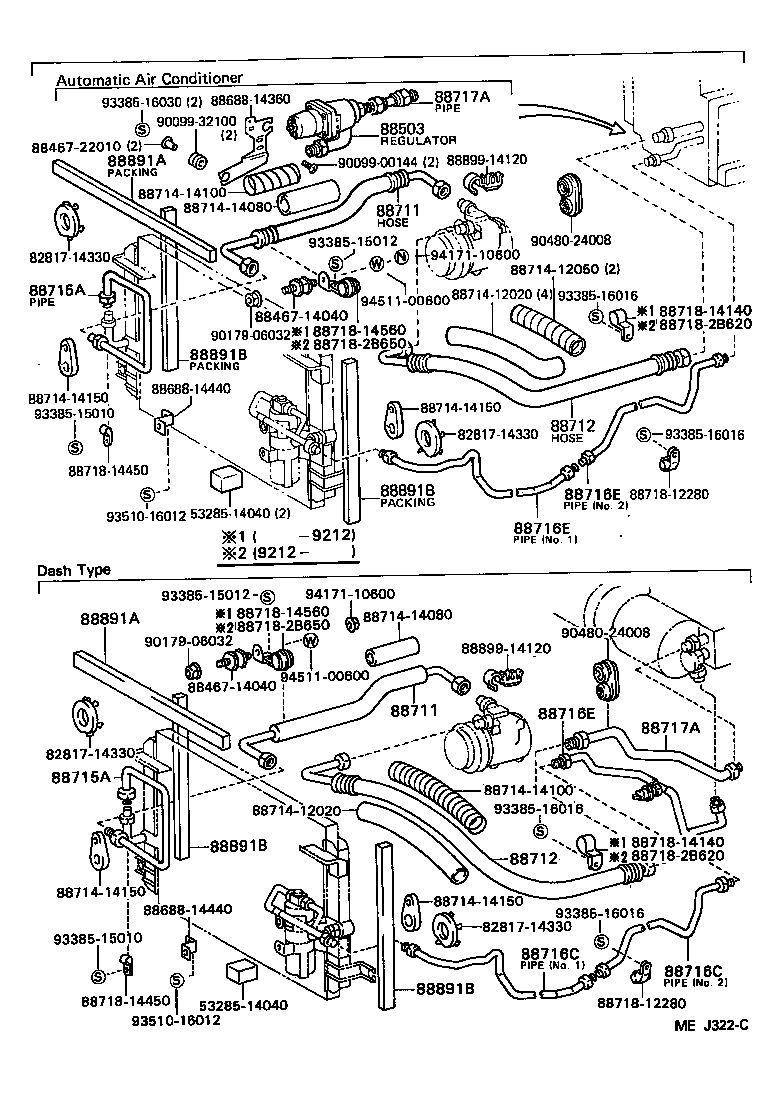

(8612- )YT140

Click highlighted areas on diagram

Part #	Description	Period	Qty
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20350	YT140	09/1982 - 10/1983	1
88711-20421	YT140	12/1992 - 01/1994	1
88711-20420	YT140	10/1983 - 12/1992	1
88711-20422	YT140	01/1994 - 04/1998	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20350	YT140	09/1982 - 10/1983	1
88711-20421	YT140	12/1992 - 01/1994	1
88711-20420	YT140	10/1983 - 12/1992	1
88711-20422	YT140	01/1994 - 04/1998	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14570	YT140	09/1982 - 10/1983	1
88712-20512	YT140	01/1994 - 04/1998	1
88712-20511	YT140	12/1992 - 01/1994	1
88712-20510	YT140	10/1983 - 12/1992	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14570	YT140	09/1982 - 10/1983	1
88712-20512	YT140	01/1994 - 04/1998	1
88712-20511	YT140	12/1992 - 01/1994	1
88712-20510	YT140	10/1983 - 12/1992	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14131	YT140	01/1994 - 04/1998	1
88715-14130	KT147,TT14#,YT140..DLX,GX,STD,SX	01/1982 - 01/1994	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14131	YT140	01/1994 - 04/1998	1
88715-14130	KT147,TT14#,YT140..DLX,GX,STD,SX	01/1982 - 01/1994	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2B350	CT141,YT140 DASH TYPE NO.1	12/1986 - 01/1994	1
88716-14760	YT140 DASH TYPE	09/1982 - 12/1986	1
88716-2B360	CT141,YT140 DASH TYPE NO.2	12/1986 - 01/1994	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2B350	CT141,YT140 DASH TYPE NO.1	12/1986 - 01/1994	1
88716-14760	YT140 DASH TYPE	09/1982 - 12/1986	1
88716-2B360	CT141,YT140 DASH TYPE NO.2	12/1986 - 01/1994	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760	AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX	01/1982 - 12/1986	1
88716-2B351	YT140 NO.1	01/1994 - 04/1998	1
88716-20630	YT140 DASH TYPE	09/1982 - 01/1994	1
88716-2B350	CT141,YT140 NO.1	12/1986 - 01/1994	1
88716-2B360	CT141,YT140 NO.2	12/1986 - 01/1994	1
88716-2B361	YT140 NO.2	01/1994 - 04/1998	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760	AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX	01/1982 - 12/1986	1
88716-2B351	YT140 NO.1	01/1994 - 04/1998	1
88716-20630	YT140 DASH TYPE	09/1982 - 01/1994	1
88716-2B350	CT141,YT140 NO.1	12/1986 - 01/1994	1
88716-2B360	CT141,YT140 NO.2	12/1986 - 01/1994	1
88716-2B361	YT140 NO.2	01/1994 - 04/1998	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760	AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX	01/1982 - 12/1986	1
88716-2B351	YT140 NO.1	01/1994 - 04/1998	1
88716-20630	YT140 DASH TYPE	09/1982 - 01/1994	1
88716-2B350	CT141,YT140 NO.1	12/1986 - 01/1994	1
88716-2B360	CT141,YT140 NO.2	12/1986 - 01/1994	1
88716-2B361	YT140 NO.2	01/1994 - 04/1998	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20310	YT140 DASH TYPE	09/1982 - 01/1994	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20310	YT140 DASH TYPE	09/1982 - 01/1994	1
88891A - PACKING A (FOR COOLER)
53293-14050	YT140	12/1986 - 04/1998	1
53293-14050	TT147,YT140..3FC	01/1982 - 12/1986	1
88891A - PACKING A (FOR COOLER)
53293-14050	YT140	12/1986 - 04/1998	1
53293-14050	TT147,YT140..3FC	01/1982 - 12/1986	1
88891B - PACKING B (FOR COOLER)
53291-14020	KT147,TT14#,YT140	01/1982 - 04/1998	2
88891B - PACKING B (FOR COOLER)
53291-14020	KT147,TT14#,YT140	01/1982 - 04/1998	2
88891B - PACKING B (FOR COOLER)
53291-14020	KT147,TT14#,YT140	01/1982 - 04/1998	2
88891B - PACKING B (FOR COOLER)
53291-14020	KT147,TT14#,YT140	01/1982 - 04/1998	2
Common parts
53285-14040
82817-14330
88467-14040
88467-22010
88688-14360
88688-14440
88714-12020
88714-12050
88714-14080
88714-14100
88714-14150
88718-12280
88718-14140
88718-14450
88718-14560
88718-2B620
88718-2B650
88899-14120
90099-00144
90099-32100
90179-06032
90480-24008
93385-15010
93385-15012
93385-16016
93385-16030
93510-16012
94171-10600
94511-00600

(9212- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14067
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125
