YT140-TEHDP (1982)

Toyota Corona

Production Sep 1982 - Apr 1998
Engine 2YPU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

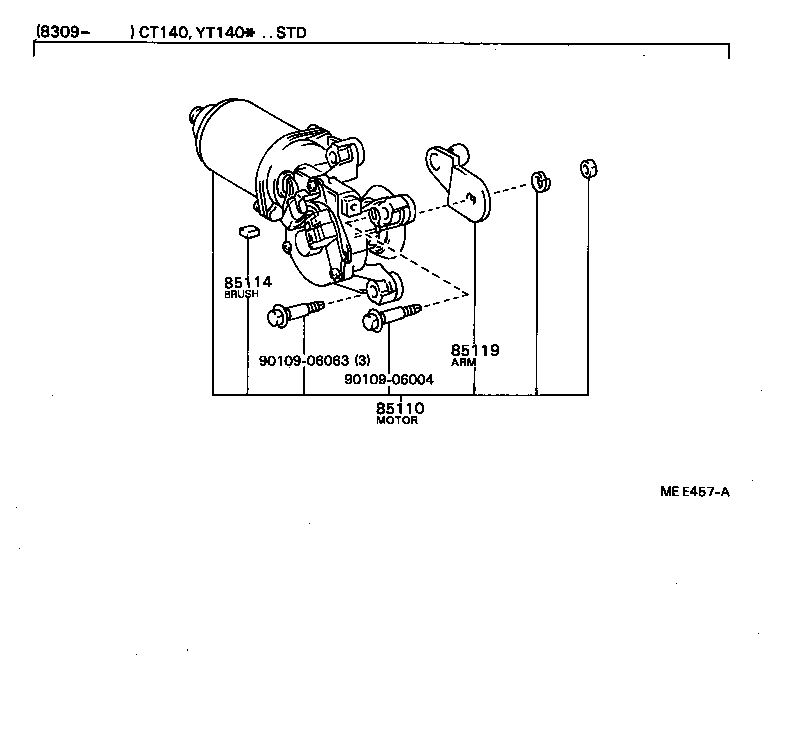

ILLUST NO. 2 OF 2(8309- )CT140,YT140..DLX,STD

Click highlighted areas on diagram

diagram 85110 85114 85119 9010906004 9010906063
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-14190

AT140,CT14#,ST140,TT14#,YT140..(SED,V)..(DLX,GTT,GX,GXA,STD,SX)

 1
85110-20200

YT140

 1
85110-20270

CT141,YT140

 1
85114 - BRUSH, WINDSHIELD WIPER MOTOR
85114-30170

CT140,YT140

 1
85119 - CRANK, WINDSHIELD WIPER MOTOR
85119-20200

YT140

 1
Common parts
90109-06004
90109-06063
