YT140-TEHDP (1982)
Toyota Corona

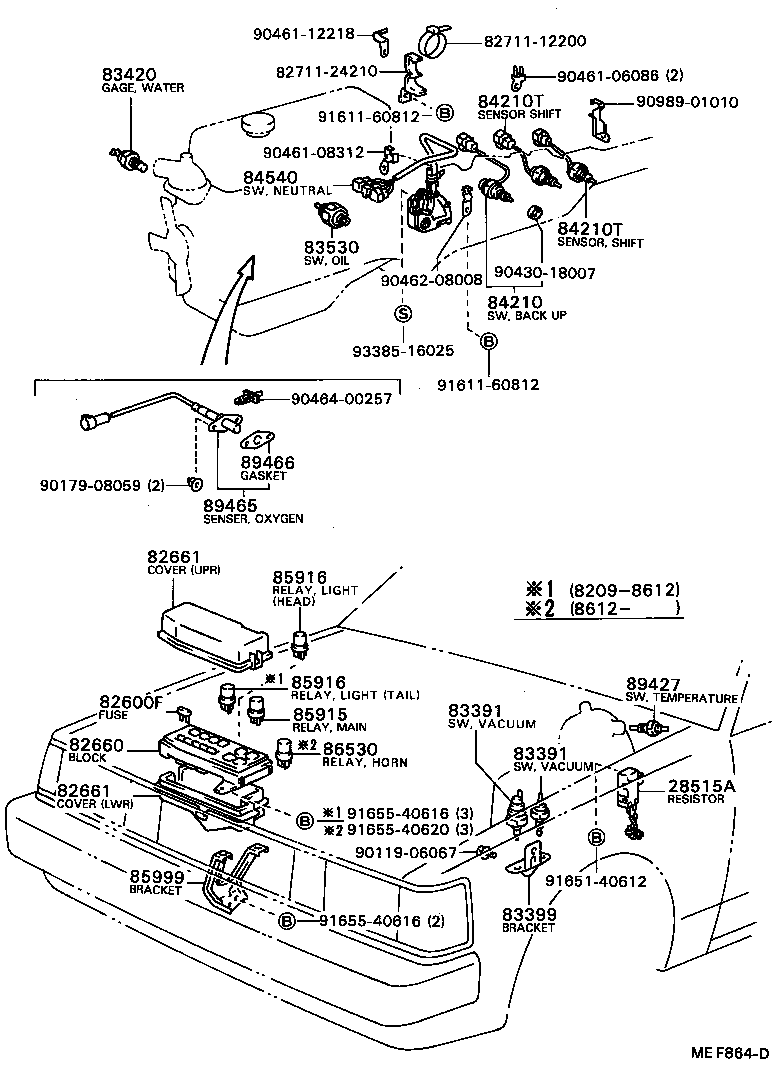

ILLUST NO. 1 OF 5(8209- )YT140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515A - RESISTOR, SOLENOID | ||||
| 28515-73010 |
2YPU..YT140 |
1 | ||
| 28515-41030 |
2YPU..YT140 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 7.5A,7.5A |
6 | ||
| 90982-09003 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 15A,15A |
11 | ||
| 90982-09004 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 20A,黄,20A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22091 |
AT140,CT14#,RT141,ST140,TT14#,YT140 SUMITOMO |
1 | ||
| 82660-22100 |
AT140,CT14#,RT141,ST140,TT14#,YT140 YAZAKI |
1 | ||
| 82660-20110 |
CT140,YT140 |
1 | ||
| 82670-20130 |
YT140 |
1 | ||
| 82660-20060 |
CT140,YT140..DLX,STD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22040 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,YAZAKI |
1 | ||
| 82661-22011 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-22030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,SUMITOMO |
1 | ||
| 82672-20130 |
YT140 UPR |
1 | ||
| 82661-22060 |
AT140,CT14#,KT147,ST140,YT140 LWR |
1 | ||
| 82672-24010 |
CT141,YT140 LWR |
1 | ||
| 82661-22070 |
AT140,CT14#,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-20020 |
AT14#,CT14#,KT147,ST140,TT142,YT140 UPR |
1 | ||
| 82661-22060 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22040 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,YAZAKI |
1 | ||
| 82661-22011 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-22030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,SUMITOMO |
1 | ||
| 82672-20130 |
YT140 UPR |
1 | ||
| 82661-22060 |
AT140,CT14#,KT147,ST140,YT140 LWR |
1 | ||
| 82672-24010 |
CT141,YT140 LWR |
1 | ||
| 82661-22070 |
AT140,CT14#,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-20020 |
AT14#,CT14#,KT147,ST140,TT142,YT140 UPR |
1 | ||
| 82661-22060 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,YAZAKI |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20021 |
YT140 MARK=80M |
1 | ||
| 83391-22090 |
YT140 MARK=100FB |
1 | ||
| 83391-20030 |
YT140 MARK=100B |
1 | ||
| 83391-12150 |
YT140 MARK=80FM |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20021 |
YT140 MARK=80M |
1 | ||
| 83391-22090 |
YT140 MARK=100FB |
1 | ||
| 83391-20030 |
YT140 MARK=100B |
1 | ||
| 83391-12150 |
YT140 MARK=80FM |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-20110 |
YT140 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
AT140,CT14#,ST140,TT14#,YT140 NIPPONDENSO |
1 | ||
| 83420-20020 |
AT14#,CT14#,KT147,ST140,TT14#,YT140 |
1 | ||
| 83420-20020 |
AT140,CT14#,ST140,TT14#,YT140 YAZAKI |
1 | ||
| 83420-20030 |
YT140 YAZAKI |
1 | ||
| 83420-16040 |
YT140 |
1 | ||
| 83420-16040 |
YT140 NIPPONDENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
YT140 |
1 | ||
| 83530-14030 |
TT142,YT140 |
1 | ||
| 83530-14060 |
YT140 |
1 | ||
| 83530-14070 |
YT140 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-14090 |
AT140,KT147,YT140..3FC |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 NIPPONDENSO,IGNITION RELAY |
1 | ||
| 90987-02002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MARUKO,IGNITION RELAY |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AT140,CT14#,RT141,ST140,TT14#,YT140 TAIL & HEAD |
2 | ||
| 90987-02004 |
CT141,YT140 TAIL,NIPPONDENSO |
1 | ||
| 90987-02002 |
CT141,YT140 TAIL,MARUKO |
1 | ||
| 90987-01003 |
AT14#,CT14#,KT147,ST140,TT142,YT140 TAIL |
1 | ||
| 90987-02006 |
AT14#,CT14#,KT147,ST140,TT142,YT140 HEAD |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AT140,CT14#,RT141,ST140,TT14#,YT140 TAIL & HEAD |
2 | ||
| 90987-02004 |
CT141,YT140 TAIL,NIPPONDENSO |
1 | ||
| 90987-02002 |
CT141,YT140 TAIL,MARUKO |
1 | ||
| 90987-01003 |
AT14#,CT14#,KT147,ST140,TT142,YT140 TAIL |
1 | ||
| 90987-02006 |
AT14#,CT14#,KT147,ST140,TT142,YT140 HEAD |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-20150 |
YT140 |
1 | ||
| 85999-14100 |
YT140 |
1 | ||
| 85999-20160 |
YT140 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
CT141,YT140 MARUKO |
1 | ||
| 90987-02004 |
CT141,YT140 NIPPONDENSO |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29105 |
YT140 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
YT140 |
1 | ||
| 89466-30010 |
AT14#,RT141,ST140,TT142,YT140 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-24210 | ||||
| 90119-06067 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90461-06086 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 90462-08008 | ||||
| 90464-00257 | ||||
| 90989-01010 | ||||
| 91611-60812 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| 93385-16025 | ||||
