YT140-TEHDP (1982)
Toyota Corona

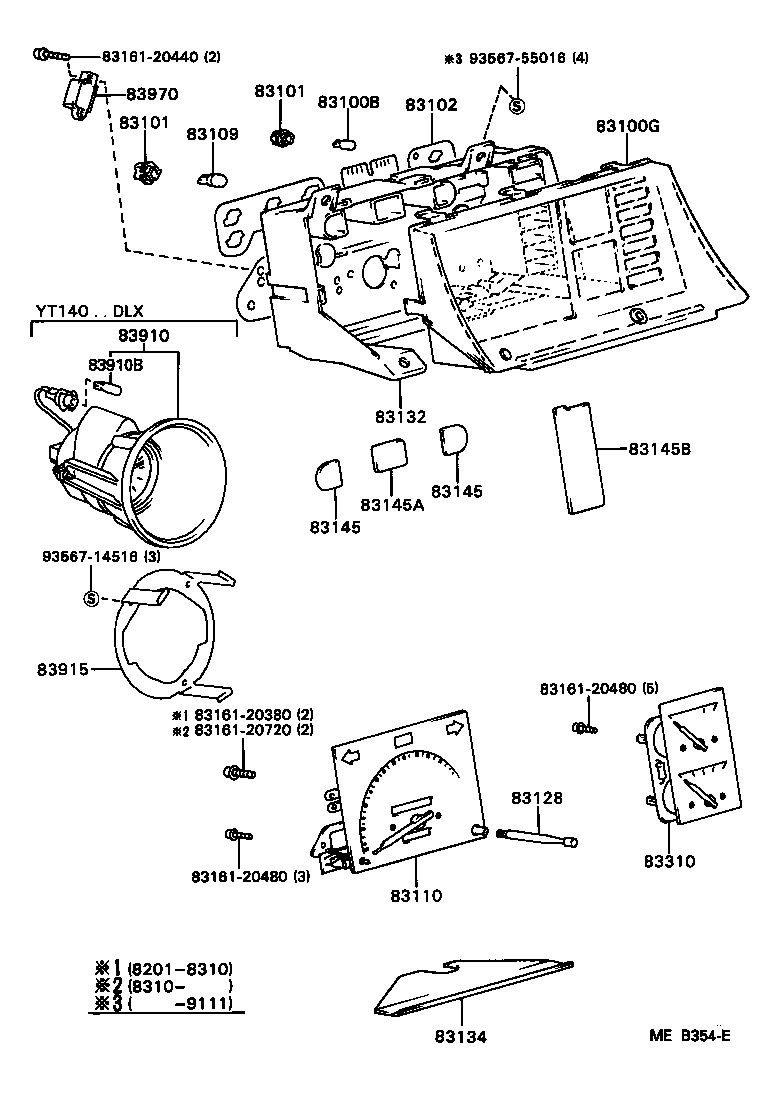

ILLUST NO. 1 OF 2(8201-9111)CT140,141..STD ; (8209- )YT140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
CT141,YT140 14V 3.4W,12V 3.4W,LONG LIFE TYPE |
1 | ||
| 99132-12034 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
14 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-2B040 |
YT140 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V BULB:12V 3.4W(OD=18) |
11 | ||
| 83101-20070 |
YT140 W/GREEN CAP BULB |
3 | ||
| 83101-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V BULB:12V 3.4W(OD=18) |
11 | ||
| 83101-20070 |
YT140 W/GREEN CAP BULB |
3 | ||
| 83101-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-2B020 |
YT140 |
1 | ||
| 83247-2D700 |
YT140..3FC |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-94350 |
YT140 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,BULB:12V 3.4W,W/GREEN CAP |
2 | ||
| 83109-20060 |
YT140 BULB:12V 3.4W |
2 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B550 |
YT140 |
1 | ||
| 83110-2B551 |
YT140 |
1 | ||
| 83110-20730 |
YT140 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-20710 |
AT140,CT14#,KT147,ST140,TT147,YT140..(SED,V)..(DLX,GX,STD) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2B040 |
YT140 |
1 | ||
| 83132-2B380 |
YT140 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-2B240 |
YT140 |
1 | ||
| 83134-2B340 |
YT140 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-2B060 |
AT14#,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,STD,SX) TURN |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-2B060 |
AT14#,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,STD,SX) TURN |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-2B080 |
AT14#,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,STD,SX) BEAM |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B100 |
YT140 |
1 | ||
| 83145-2B680 |
YT140 |
1 | ||
| 83131-20180 |
YT140 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-2B120 |
YT140 W/WATER TEMPERATURE GAGE |
1 | ||
| 83243-2B180 |
YT140 W/WATER TEMPERATURE GAGE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83920-20010 |
YT140..(3FC,5F)..DLX ANALOGUE |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 84999-50010 |
YT140..(3FC,5F)..DLX 12V 3.4W,12V 3.4W |
1 | ||
| 83915 - BRACKET, CLOCK | ||||
| 83915-20020 |
YT140..(3FC,5F)..DLX |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-22010 |
YT140..3FC |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 83161-20480 | ||||
| 83161-20720 | ||||
| 93567-14516 | ||||
| 93567-55016 | ||||
