YT140-TEHDP (1982)
Toyota Corona
(8201-8612)CT14#,KT147,TT147,YT140..DLX,STD ; (8612-8712)CT147,KT147..DLX,STD

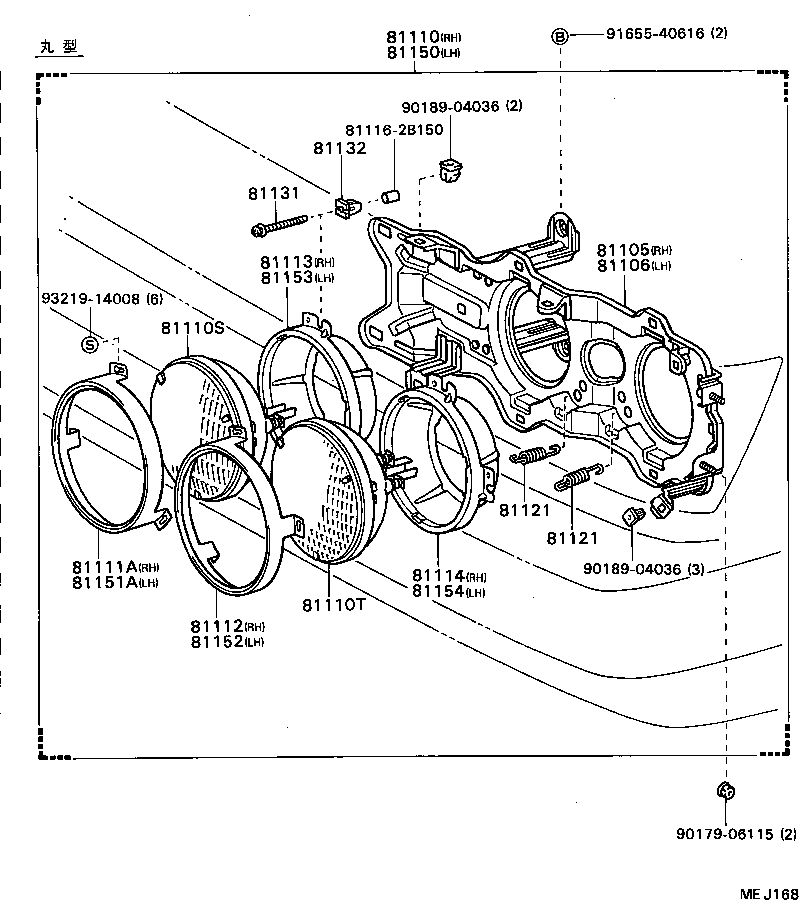

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-91C01 |
CT141,YT140 *ROU |
1 | ||
| 81105-20711 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81135-20600 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81105-20710 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81130-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-20670 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81170-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81175-20560 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81106-91C01 |
CT141,YT140 *ROU |
1 | ||
| 81106-20671 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80190 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-80201 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20711 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20712 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20601 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B180 |
CT141,YT140 *ROU |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80190 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-80201 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20711 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20712 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20601 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B180 |
CT141,YT140 *ROU |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02053 |
CT14#,KT147,YT140..DLX,STD 12V 50W,*WB,12V 50W |
2 | ||
| 90981-02039 |
CT14#,KT147,TT147,YT140..DLX,STD 12V 37.5W,*WB,12V 37.5W |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-02040 |
CT14#,KT147,TT147,YT140..DLX,STD 12V 37.5/50W,*WB,12V 37.5/50W |
2 | ||
| 90981-02054 |
CT14#,KT147,YT140..DLX,STD 12V 37.5/60W,ﾎﾜｲﾄ,12V 37.5/60W |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-14261 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81112 - RING, SEALED BEAM RETAINING, NO.2 RH | ||||
| 81111-14261 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-14260 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81113-14100 |
CT141,YT140 |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81154-14260 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81154-20170 |
CT141,YT140 |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90506-18018 |
CT14#,KT147,TT147,YT140..DLX,STD |
4 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90506-18018 |
CT14#,KT147,TT147,YT140..DLX,STD |
4 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-20341 |
CT14#,KT147,TT147,YT140..DLX,STD |
8 | ||
| 81131-16230 |
CT141,YT140 |
8 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 90041-89003 |
CT141,YT140 |
8 | ||
| 90041-89003 |
CT14#,KT147,TT147,YT140..DLX,STD |
8 | ||
| 81132-20380 |
CT141,YT140 |
8 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-20561 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-20671 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-20672 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-91C03 |
CT141,YT140 *ROU |
1 | ||
| 81150-80187 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-80198 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-20561 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-20671 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-20672 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-91C03 |
CT141,YT140 *ROU |
1 | ||
| 81150-80187 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-80198 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-14261 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81152 - RING, SEALED BEAM RETAINING, NO.2 LH | ||||
| 81111-14261 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-14100 |
CT141,YT140 |
1 | ||
| 81153-14260 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81114-14260 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81114-20210 |
CT141,YT140 |
1 | ||
| Common parts | ||||
| 90119-06126 | ||||
| 90179-06115 | ||||
| 90189-04036 | ||||
| 90189-04049 | ||||
| 93219-14008 | ||||
(8201-8712)KT147,TT147..GX ; (8209- )YT140..3FC,5F..DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-91C01 |
CT141,YT140 *ROU |
1 | ||
| 81105-20711 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81135-20600 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81105-20710 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81130-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-20670 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81170-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81175-20560 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81106-91C01 |
CT141,YT140 *ROU |
1 | ||
| 81106-20671 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80190 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-80201 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20711 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20712 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20601 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B180 |
CT141,YT140 *ROU |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80190 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-80201 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20711 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20712 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20601 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B180 |
CT141,YT140 *ROU |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13022 |
YT140..(3FC,5F)..DLX 12V 65/60W,ﾎﾜｲﾄ,12V 65/60W,*REC |
2 | ||
| 81112A - RIM, HEADLAMP, RH | ||||
| 81112-20600 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81112-20601 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81116-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81117 - PACKING, HEADLAMP HOUSING | ||||
| 81147-30490 |
YT140..(3FC,5F)..DLX *REC |
2 | ||
| 81138 - SPRING, HEADLAMP | ||||
| 81138-20550 |
YT140..(3FC,5F)..DLX *REC |
12 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-30490 |
YT140..(3FC,5F)..DLX *REC |
2 | ||
| 81146 - LENS, HEADLAMP, RH | ||||
| 81146-30490 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-20561 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-20671 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-20672 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-91C03 |
CT141,YT140 *ROU |
1 | ||
| 81150-80187 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-80198 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-20561 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-20671 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-20672 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-91C03 |
CT141,YT140 *ROU |
1 | ||
| 81150-80187 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-80198 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81152A - RIM, HEADLAMP, LH | ||||
| 81152-20560 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81152-20561 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81156-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81186 - LENS, HEADLAMP, LH | ||||
| 81186-30600 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| Common parts | ||||
| 81119-30490 | ||||
| 90119-06126 | ||||
| 90179-06115 | ||||
| 91655-40616 | ||||
(8201-8712)AT14#,CT140,141,RT141,ST140,TT142,YT140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-91C01 |
CT141,YT140 *ROU |
1 | ||
| 81105-20711 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81135-20600 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81105-20710 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81130-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-20670 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81170-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81175-20560 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81106-91C01 |
CT141,YT140 *ROU |
1 | ||
| 81106-20671 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80190 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-80201 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20711 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20712 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20601 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B180 |
CT141,YT140 *ROU |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13022 |
YT140..(3FC,5F)..DLX 12V 65/60W,ﾎﾜｲﾄ,12V 65/60W,*REC |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13022 |
YT140..(3FC,5F)..DLX 12V 65/60W,ﾎﾜｲﾄ,12V 65/60W,*REC |
2 | ||
| 81112A - RIM, HEADLAMP, RH | ||||
| 81112-20600 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81112-20601 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81116-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81117 - PACKING, HEADLAMP HOUSING | ||||
| 81147-30490 |
YT140..(3FC,5F)..DLX *REC |
2 | ||
| 81138 - SPRING, HEADLAMP | ||||
| 81138-20550 |
YT140..(3FC,5F)..DLX *REC |
12 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-30490 |
YT140..(3FC,5F)..DLX *REC |
2 | ||
| 81146 - LENS, HEADLAMP, RH | ||||
| 81146-30490 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-20561 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-20671 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-20672 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-91C03 |
CT141,YT140 *ROU |
1 | ||
| 81150-80187 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-80198 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81152A - RIM, HEADLAMP, LH | ||||
| 81152-20560 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81152-20561 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81156-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81186 - LENS, HEADLAMP, LH | ||||
| 81186-30600 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| Common parts | ||||
| 81278-20050 | ||||
| 90119-06126 | ||||
| 90179-06115 | ||||
| 90183-04016 | ||||
| 93540-54012 | ||||
(8612- )CT141,YT140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-91C01 |
CT141,YT140 *ROU |
1 | ||
| 81105-20711 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81135-20600 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81105-20710 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81130-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-20670 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81170-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81175-20560 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81106-91C01 |
CT141,YT140 *ROU |
1 | ||
| 81106-20671 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80190 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-80201 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20711 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20712 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81110-20601 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B160 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81110-2B180 |
CT141,YT140 *ROU |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02053 |
CT14#,KT147,YT140..DLX,STD 12V 50W,*WB,12V 50W |
2 | ||
| 90981-02039 |
CT14#,KT147,TT147,YT140..DLX,STD 12V 37.5W,*WB,12V 37.5W |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-02040 |
CT14#,KT147,TT147,YT140..DLX,STD 12V 37.5/50W,*WB,12V 37.5/50W |
2 | ||
| 90981-02054 |
CT14#,KT147,YT140..DLX,STD 12V 37.5/60W,ﾎﾜｲﾄ,12V 37.5/60W |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-14261 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81112 - RING, SEALED BEAM RETAINING, NO.2 RH | ||||
| 81111-14261 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-14260 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81113-14100 |
CT141,YT140 |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81154-14260 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81154-20170 |
CT141,YT140 |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90506-18018 |
CT14#,KT147,TT147,YT140..DLX,STD |
4 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90506-18018 |
CT14#,KT147,TT147,YT140..DLX,STD |
4 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-20341 |
CT14#,KT147,TT147,YT140..DLX,STD |
8 | ||
| 81131-16230 |
CT141,YT140 |
8 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 90041-89003 |
CT141,YT140 |
8 | ||
| 90041-89003 |
CT14#,KT147,TT147,YT140..DLX,STD |
8 | ||
| 81132-20380 |
CT141,YT140 |
8 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-20561 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-20671 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-20672 |
CT14#,KT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-91C03 |
CT141,YT140 *ROU |
1 | ||
| 81150-80187 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81150-80198 |
CT14#,KT147,TT147,YT140..DLX,STD *ROU |
1 | ||
| 81150-2B130 |
YT140..(3FC,5F)..DLX *REC |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-14261 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81152 - RING, SEALED BEAM RETAINING, NO.2 LH | ||||
| 81111-14261 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-14100 |
CT141,YT140 |
1 | ||
| 81153-14260 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81114-14260 |
CT14#,KT147,TT147,YT140..DLX,STD |
1 | ||
| 81114-20210 |
CT141,YT140 |
1 | ||
| Common parts | ||||
| 81116-2B150 | ||||
| 90179-06115 | ||||
| 90189-04036 | ||||
| 91655-40616 | ||||
| 93219-14008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
