YT140-TEHDP (1982)
Toyota Corona
Production
Sep 1982
-
Apr 1998
Engine
2YPU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8209-8612)YT140
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77001 - TANK ASSY, FUEL (LPG) | ||||
| 77001-20340 |
YT140 |
1 | ||
| 77001-20460 |
YT140 |
1 | ||
| 77001-20461 |
YT140 |
1 | ||
| 77001-20430 |
YT140 |
1 | ||
| 77001F - PLUG, LPG TANK | ||||
| 90345-26001 |
YT140 |
1 | ||
| 77001M - HANDLE, LPG TANK | ||||
| 90977-04001 |
YT140 OUTLET |
1 | ||
| 90977-04002 |
YT140 INLET |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-20020 |
YT140 |
1 | ||
| 77037-20010 |
YT140 |
1 | ||
| 77104 - SHAFT SUB-ASSY, FUEL TANK VALVE HANDLE | ||||
| 77145-20021 |
YT140 |
2 | ||
| 77104A - RING, O(FOR FUEL TANK VALVE SHAFT) | ||||
| 96720-01013 |
YT140 |
1 | ||
| 77107 - PIPE SUB-ASSY, FUEL TANK VALVE SHAFT COVER, NO.1 | ||||
| 77154-20021 |
YT140 |
2 | ||
| 77128 - GLASS, FUEL TANK WINDOW | ||||
| 77128-20010 |
YT140 |
1 | ||
| 77152 - JOINT, FUEL TANK VALVE, INNER | ||||
| 77152-20021 |
YT140 |
2 | ||
| 77152 - JOINT, FUEL TANK VALVE, INNER | ||||
| 77152-20021 |
YT140 |
2 | ||
| 77161 - BRACKET, FUEL TANK, FRONT RH | ||||
| 77161-20050 |
YT140 |
1 | ||
| 77161-20060 |
YT140 |
1 | ||
| 77161-20061 |
YT140 |
1 | ||
| 77162 - BRACKET, FUEL TANK, FRONT LH | ||||
| 77162-20050 |
YT140 |
1 | ||
| 77162-20060 |
YT140 |
1 | ||
| 77162-20061 |
YT140 |
1 | ||
| 77163 - BRACKET, FUEL TANK, REAR RH | ||||
| 77165-20040 |
YT140 |
1 | ||
| 77505-20010 |
YT140 |
1 | ||
| 77164 - BRACKET, FUEL TANK, REAR LH | ||||
| 77506-20010 |
YT140 |
1 | ||
| 77166-20070 |
YT140 |
1 | ||
| 77166 - CUSHION, FUEL TANK PROTECTOR | ||||
| 77671-20040 |
YT140 |
1 | ||
| 77671-20030 |
YT140 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20200 |
YT140 |
1 | ||
| 77201-20150 |
YT140 |
1 | ||
| 77201-20201 |
YT140 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-20070 |
YT140 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-20141 |
YT140 |
1 | ||
| 77205-20140 |
YT140 |
1 | ||
| 77205-20050 |
YT140 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77216-20030 |
YT140 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-20040 |
YT140 |
1 | ||
| 77277-20140 |
YT140 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-20030 |
YT140 |
1 | ||
| 77350-91D01 |
YT140 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
CT147,KT147,TT147,YT140 |
2 | ||
| 90541-05009 |
CT141,YT140 |
2 | ||
| 77338 - ROD, FUEL TANK CAP LOCK | ||||
| 77307-20020 |
YT140 |
1 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 77358-20010 |
YT140 |
1 | ||
| 77358-20020 |
YT140 |
1 | ||
| 77360-24010 |
CT141,YT140 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-20010 |
YT140 |
1 | ||
| 77390 - VALVE ASSY, FUEL TANK INLET | ||||
| 77390-20040 |
YT140 |
1 | ||
| 77390-20050 |
YT140 |
1 | ||
| 77390-20051 |
YT140 |
1 | ||
| 77390A - GASKET (FOR FUEL TANK VALVE) | ||||
| 90430-42255 |
YT140 |
1 | ||
| 77390B - VALVE, FUEL TANK OUTLET | ||||
| 90977-01023 |
YT140 |
1 | ||
| 90977-03001 |
YT140 |
1 | ||
| 90977-01027 |
YT140 |
1 | ||
| 77390C - VALVE, FUEL TANK INLET | ||||
| 90977-01022 |
YT140 |
1 | ||
| 90977-03002 |
YT140 |
1 | ||
| 90977-01026 |
YT140 |
1 | ||
| 77602 - CASE SUB-ASSY, FUEL TANK, UPPER | ||||
| 77602-20080 |
YT140 |
1 | ||
| 77602-20100 |
YT140 |
1 | ||
| 77603 - CASE SUB-ASSY, FUEL TANK, LOWER | ||||
| 77603-20050 |
YT140 |
1 | ||
| 77603-20060 |
YT140 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-20030 |
YT140 |
1 | ||
| 77655-20040 |
YT140 |
1 | ||
| 77618 - GASKET, CASE WINDOW | ||||
| 77618-30010 |
YT140 |
1 | ||
| 77618A - COVER, FUEL TANK VALVE, LOWER | ||||
| 77618-20030 |
YT140 |
1 | ||
| 77619 - SEAL, FUEL TANK VALVE COVER TO FLOOR | ||||
| 77614-20040 |
YT140 |
1 | ||
| 77623A - FRAME, TANK COVER WINDOW GLASS | ||||
| 77623-20021 |
YT140 |
1 | ||
| 77623B - RING, O (FOR TANK COVER WINDOW GLASS FRAME) | ||||
| 90301-39209 |
YT140 ID=39.4 |
1 | ||
| 90301-34208 |
YT140 ID=34.4 |
1 | ||
| 77623B - RING, O (FOR TANK COVER WINDOW GLASS FRAME) | ||||
| 90301-39209 |
YT140 ID=39.4 |
1 | ||
| 90301-34208 |
YT140 ID=34.4 |
1 | ||
| 77625 - BOX, FUEL TANK CASE | ||||
| 77625-20030 |
YT140 |
1 | ||
| 77628 - GLASS, CASE COVER WINDOW | ||||
| 77628-30010 |
YT140 |
1 | ||
| 77638A - RING, O (FOR TANK VALVE JOINT SLEEVE) | ||||
| 96712-24011 |
YT140 |
1 | ||
| 77656 - GASKET, BREATHER COVER, UPPER | ||||
| 77657-20030 |
YT140 |
1 | ||
| 77657-20031 |
YT140 |
1 | ||
| 77657-20020 |
YT140 |
1 | ||
| Common parts | ||||
| 90101-08089 | ||||
| 90103-08006 | ||||
| 90109-08035 | ||||
| 90168-50007 | ||||
| 90179-10033 | ||||
| 90201-08131 | ||||
| 90202-11029 | ||||
| 90430-10158 | ||||
| 90460-47036 | ||||
| 90461-06052 | ||||
| 90461-07004 | ||||
| 90461-07019 | ||||
| 90461-09001 | ||||
| 90580-17040 | ||||
| 91111-40616 | ||||
| 91111-50816 | ||||
| 91111-50822 | ||||
| 91611-40610 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91656-40620 | ||||
| 91661-40612 | ||||
| 91661-40820 | ||||
| 93319-15008 | ||||
| 93385-15014 | ||||
| 93540-14012 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94711-00800 | ||||
| 94711-90800 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8401 | ||||

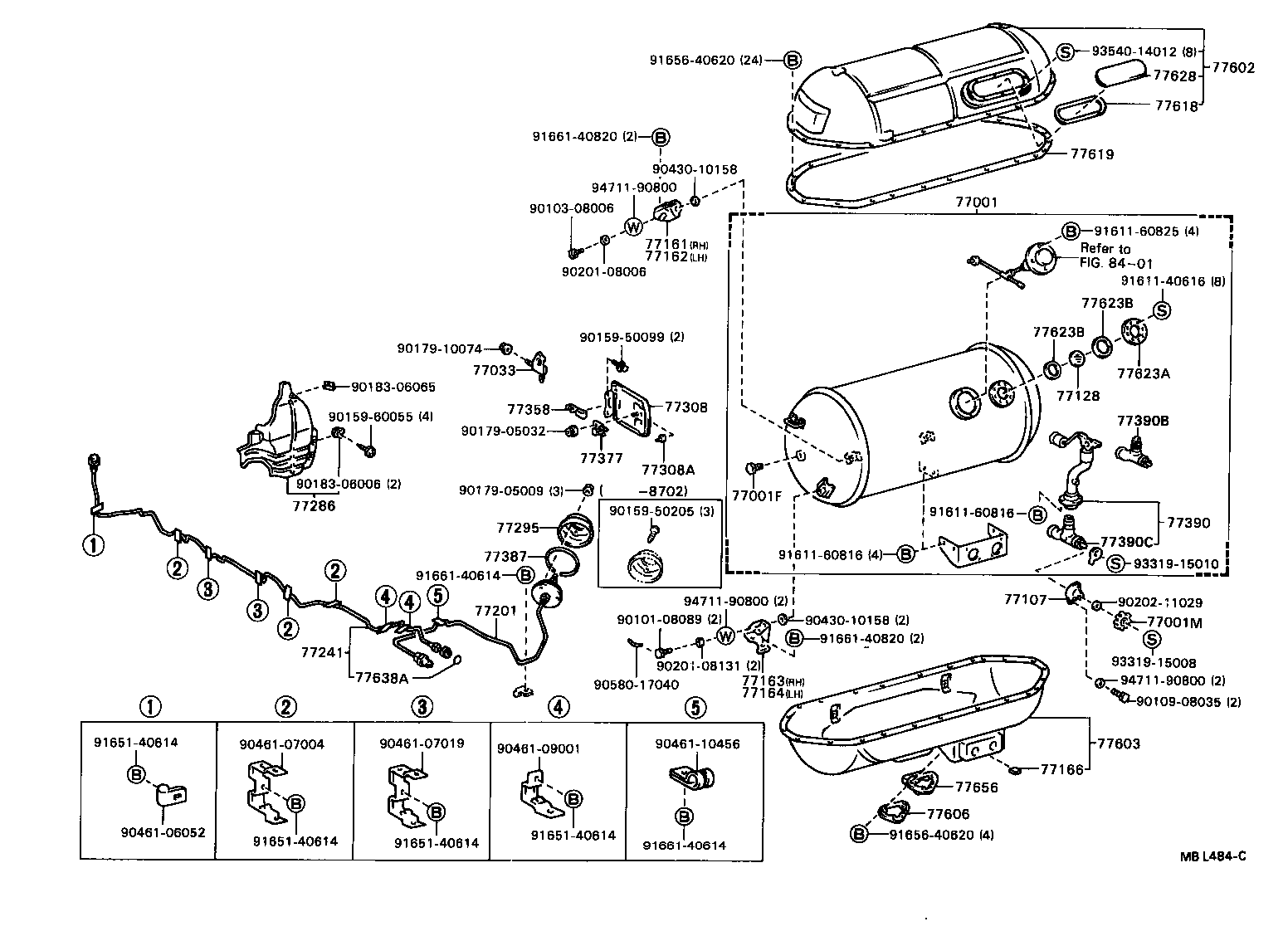

(8612-8908)YT140
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77001 - TANK ASSY, FUEL (LPG) | ||||
| 77001-20340 |
YT140 |
1 | ||
| 77001-20460 |
YT140 |
1 | ||
| 77001-20461 |
YT140 |
1 | ||
| 77001-20430 |
YT140 |
1 | ||
| 77001F - PLUG, LPG TANK | ||||
| 90345-26001 |
YT140 |
1 | ||
| 77001M - HANDLE, LPG TANK | ||||
| 90977-04001 |
YT140 OUTLET |
1 | ||
| 90977-04002 |
YT140 INLET |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-20020 |
YT140 |
1 | ||
| 77037-20010 |
YT140 |
1 | ||
| 77107 - PIPE SUB-ASSY, FUEL TANK VALVE SHAFT COVER, NO.1 | ||||
| 77154-20021 |
YT140 |
2 | ||
| 77128 - GLASS, FUEL TANK WINDOW | ||||
| 77128-20010 |
YT140 |
1 | ||
| 77161 - BRACKET, FUEL TANK, FRONT RH | ||||
| 77161-20050 |
YT140 |
1 | ||
| 77161-20060 |
YT140 |
1 | ||
| 77161-20061 |
YT140 |
1 | ||
| 77162 - BRACKET, FUEL TANK, FRONT LH | ||||
| 77162-20050 |
YT140 |
1 | ||
| 77162-20060 |
YT140 |
1 | ||
| 77162-20061 |
YT140 |
1 | ||
| 77163 - BRACKET, FUEL TANK, REAR RH | ||||
| 77165-20040 |
YT140 |
1 | ||
| 77505-20010 |
YT140 |
1 | ||
| 77164 - BRACKET, FUEL TANK, REAR LH | ||||
| 77506-20010 |
YT140 |
1 | ||
| 77166-20070 |
YT140 |
1 | ||
| 77166 - CUSHION, FUEL TANK PROTECTOR | ||||
| 77671-20040 |
YT140 |
1 | ||
| 77671-20030 |
YT140 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20200 |
YT140 |
1 | ||
| 77201-20150 |
YT140 |
1 | ||
| 77201-20201 |
YT140 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-20141 |
YT140 |
1 | ||
| 77205-20140 |
YT140 |
1 | ||
| 77205-20050 |
YT140 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-20040 |
YT140 |
1 | ||
| 77277-20140 |
YT140 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77034-14010 |
CT141,YT140 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-20030 |
YT140 |
1 | ||
| 77350-91D01 |
YT140 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
CT147,KT147,TT147,YT140 |
2 | ||
| 90541-05009 |
CT141,YT140 |
2 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 77358-20010 |
YT140 |
1 | ||
| 77358-20020 |
YT140 |
1 | ||
| 77360-24010 |
CT141,YT140 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
YT140 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
CT141,YT140 |
1 | ||
| 77390 - VALVE ASSY, FUEL TANK INLET | ||||
| 77390-20040 |
YT140 |
1 | ||
| 77390-20050 |
YT140 |
1 | ||
| 77390-20051 |
YT140 |
1 | ||
| 77390B - VALVE, FUEL TANK OUTLET | ||||
| 90977-01023 |
YT140 |
1 | ||
| 90977-03001 |
YT140 |
1 | ||
| 90977-01027 |
YT140 |
1 | ||
| 77390C - VALVE, FUEL TANK INLET | ||||
| 90977-01022 |
YT140 |
1 | ||
| 90977-03002 |
YT140 |
1 | ||
| 90977-01026 |
YT140 |
1 | ||
| 77602 - CASE SUB-ASSY, FUEL TANK, UPPER | ||||
| 77602-20080 |
YT140 |
1 | ||
| 77602-20100 |
YT140 |
1 | ||
| 77603 - CASE SUB-ASSY, FUEL TANK, LOWER | ||||
| 77603-20050 |
YT140 |
1 | ||
| 77603-20060 |
YT140 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-20030 |
YT140 |
1 | ||
| 77655-20040 |
YT140 |
1 | ||
| 77618 - GASKET, CASE WINDOW | ||||
| 77618-30010 |
YT140 |
1 | ||
| 77619 - SEAL, FUEL TANK VALVE COVER TO FLOOR | ||||
| 77614-20040 |
YT140 |
1 | ||
| 77623A - FRAME, TANK COVER WINDOW GLASS | ||||
| 77623-20021 |
YT140 |
1 | ||
| 77623B - RING, O (FOR TANK COVER WINDOW GLASS FRAME) | ||||
| 90301-39209 |
YT140 ID=39.4 |
1 | ||
| 90301-34208 |
YT140 ID=34.4 |
1 | ||
| 77623B - RING, O (FOR TANK COVER WINDOW GLASS FRAME) | ||||
| 90301-39209 |
YT140 ID=39.4 |
1 | ||
| 90301-34208 |
YT140 ID=34.4 |
1 | ||
| 77628 - GLASS, CASE COVER WINDOW | ||||
| 77628-30010 |
YT140 |
1 | ||
| 77638A - RING, O (FOR TANK VALVE JOINT SLEEVE) | ||||
| 96712-24011 |
YT140 |
1 | ||
| 77656 - GASKET, BREATHER COVER, UPPER | ||||
| 77657-20030 |
YT140 |
1 | ||
| 77657-20031 |
YT140 |
1 | ||
| 77657-20020 |
YT140 |
1 | ||
| Common parts | ||||
| 90101-08089 | ||||
| 90103-08006 | ||||
| 90109-08035 | ||||
| 90159-50099 | ||||
| 90159-50205 | ||||
| 90159-60055 | ||||
| 90179-05009 | ||||
| 90179-05032 | ||||
| 90179-10074 | ||||
| 90183-06006 | ||||
| 90183-06065 | ||||
| 90201-08006 | ||||
| 90201-08131 | ||||
| 90202-11029 | ||||
| 90430-10158 | ||||
| 90461-06052 | ||||
| 90461-07004 | ||||
| 90461-07019 | ||||
| 90461-09001 | ||||
| 90461-10456 | ||||
| 90580-17040 | ||||
| 91611-40616 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 91651-40614 | ||||
| 91656-40620 | ||||
| 91661-40614 | ||||
| 91661-40820 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| 93540-14012 | ||||
| 94711-90800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8908- )YT140
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77001 - TANK ASSY, FUEL (LPG) | ||||
| 77001-20340 |
YT140 |
1 | ||
| 77001-20460 |
YT140 |
1 | ||
| 77001-20461 |
YT140 |
1 | ||
| 77001-20430 |
YT140 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-20020 |
YT140 |
1 | ||
| 77037-20010 |
YT140 |
1 | ||
| 77161 - BRACKET, FUEL TANK, FRONT RH | ||||
| 77161-20050 |
YT140 |
1 | ||
| 77161-20060 |
YT140 |
1 | ||
| 77161-20061 |
YT140 |
1 | ||
| 77162 - BRACKET, FUEL TANK, FRONT LH | ||||
| 77162-20050 |
YT140 |
1 | ||
| 77162-20060 |
YT140 |
1 | ||
| 77162-20061 |
YT140 |
1 | ||
| 77163 - BRACKET, FUEL TANK, REAR RH | ||||
| 77165-20040 |
YT140 |
1 | ||
| 77505-20010 |
YT140 |
1 | ||
| 77164 - BRACKET, FUEL TANK, REAR LH | ||||
| 77506-20010 |
YT140 |
1 | ||
| 77166-20070 |
YT140 |
1 | ||
| 77166 - CUSHION, FUEL TANK PROTECTOR | ||||
| 77671-20040 |
YT140 |
1 | ||
| 77671-20030 |
YT140 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20200 |
YT140 |
1 | ||
| 77201-20150 |
YT140 |
1 | ||
| 77201-20201 |
YT140 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-20141 |
YT140 |
1 | ||
| 77205-20140 |
YT140 |
1 | ||
| 77205-20050 |
YT140 |
1 | ||
| 77243 - TUBE, FUEL MAIN, NO.3 | ||||
| 77243-20020 |
YT140 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-20040 |
YT140 |
1 | ||
| 77277-20140 |
YT140 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77034-14010 |
CT141,YT140 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-20030 |
YT140 |
1 | ||
| 77350-91D01 |
YT140 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
CT147,KT147,TT147,YT140 |
2 | ||
| 90541-05009 |
CT141,YT140 |
2 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 77358-20010 |
YT140 |
1 | ||
| 77358-20020 |
YT140 |
1 | ||
| 77360-24010 |
CT141,YT140 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
YT140 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
CT141,YT140 |
1 | ||
| 77390 - VALVE ASSY, FUEL TANK INLET | ||||
| 77390-20051 |
YT140 |
1 | ||
| 77390-20040 |
YT140 |
1 | ||
| 77390-20050 |
YT140 |
1 | ||
| 77390B - VALVE, FUEL TANK OUTLET | ||||
| 90977-01023 |
YT140 |
1 | ||
| 90977-03001 |
YT140 |
1 | ||
| 90977-01027 |
YT140 |
1 | ||
| 77390C - VALVE, FUEL TANK INLET | ||||
| 90977-01022 |
YT140 |
1 | ||
| 90977-03002 |
YT140 |
1 | ||
| 90977-01026 |
YT140 |
1 | ||
| 77520 - VALVE ASSY, SOLENOID LPG EMERGENCY | ||||
| 77520-20010 |
YT140 |
1 | ||
| 77604C - COVER SUB-ASSY, FUEL TANK VALVE | ||||
| 77604-20070 |
YT140 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-20030 |
YT140 |
1 | ||
| 77655-20040 |
YT140 |
1 | ||
| 77638A - RING, O (FOR TANK VALVE JOINT SLEEVE) | ||||
| 96712-24011 |
YT140 |
1 | ||
| 77656 - GASKET, BREATHER COVER, UPPER | ||||
| 77657-20030 |
YT140 |
1 | ||
| 77657-20031 |
YT140 |
1 | ||
| 77657-20020 |
YT140 |
1 | ||
| Common parts | ||||
| 90103-08007 | ||||
| 90119-08818 | ||||
| 90119-08837 | ||||
| 90159-50099 | ||||
| 90159-60055 | ||||
| 90179-05009 | ||||
| 90179-05032 | ||||
| 90179-10074 | ||||
| 90183-06006 | ||||
| 90183-06065 | ||||
| 90201-08131 | ||||
| 90202-11029 | ||||
| 90430-42255 | ||||
| 90461-06052 | ||||
| 90461-07004 | ||||
| 90461-07019 | ||||
| 90461-09001 | ||||
| 90461-10456 | ||||
| 90580-17040 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 91651-40614 | ||||
| 91656-40620 | ||||
| 91661-40614 | ||||
| 96712-19010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
