YT140-TEHDP (1982)

Toyota Corona

Production Sep 1982 - Apr 1998
Engine 2YPU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612) ; (8612-8712)AT140,CT147,KT147,ST140

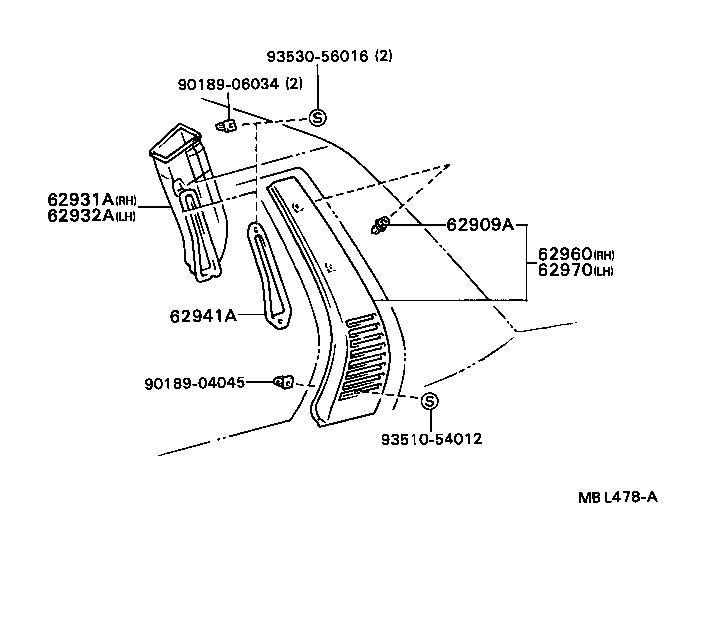

Click highlighted areas on diagram

diagram 62850 62860 6290891C01 62909A 62909A 62960 62960 62960A 62970 62970 9017905095 9018904014 9354074012 9354074012
Part # Description Qty Price
62909A - RETAINER SUB-ASSY, QUARTER VENTILATION LOUVER
62955-20060

CT141,YT140

 4
62955-20020

AT14#,CT140,RT141,ST140,TT142,YT140..SED

 2
62909A - RETAINER SUB-ASSY, QUARTER VENTILATION LOUVER
62955-20060

CT141,YT140

 4
62955-20020

AT14#,CT140,RT141,ST140,TT142,YT140..SED

 2
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-29135

AT14#,CT140,RT141,ST140,TT142,YT140..SED

 1
62905-20070

CT141,YT140

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-29135

AT14#,CT140,RT141,ST140,TT142,YT140..SED

 1
62905-20070

CT141,YT140

 1
62960A - GASKET(FOR ROOF SIDE VENT LOUVER)
90562-04005

AT14#,CT140,ST140,TT142,YT140..SED

 4
90430-04002

AT140,CT140,RT141,ST140,TT142,YT140..SED

 4
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-20070

CT141,YT140

 1
62906-29135

AT14#,CT140,RT141,ST140,TT142,YT140..SED

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-20070

CT141,YT140

 1
62906-29135

AT14#,CT140,RT141,ST140,TT142,YT140..SED

 1
Common parts
62908-91C01
90179-05095
90189-04014
93540-74012

(8612- )CT141,YT140

Click highlighted areas on diagram

diagram 62909A 62931A 62932A 62941A 62960 62970 9018904045 9018906034 9351054012 9353056016
Part # Description Qty Price
62909A - RETAINER SUB-ASSY, QUARTER VENTILATION LOUVER
62955-20060

CT141,YT140

 4
62955-20020

AT14#,CT140,RT141,ST140,TT142,YT140..SED

 2
62931A - DUCT, QUARTER VENT, RH
62931-20110

CT141,YT140

 1
62932A - DUCT, QUARTER VENT, LH
62932-20100

CT141,YT140

 1
62941A - RETAINER, QUARTER VENT DUCT
62942-20030

CT141,YT140

LH

 1
62941-20040

CT141,YT140

RH

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-29135

AT14#,CT140,RT141,ST140,TT142,YT140..SED

 1
62905-20070

CT141,YT140

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-20070

CT141,YT140

 1
62906-29135

AT14#,CT140,RT141,ST140,TT142,YT140..SED

 1
Common parts
90189-04045
90189-06034
93510-54012
93530-56016
